$ 299.92
High-performance IDS GV-54J1LE-M-MB Rev.2 with 8 MP Sony sensor, GigE Vision, and compact S-Mount design for precision industrial imaging.
Product Overview

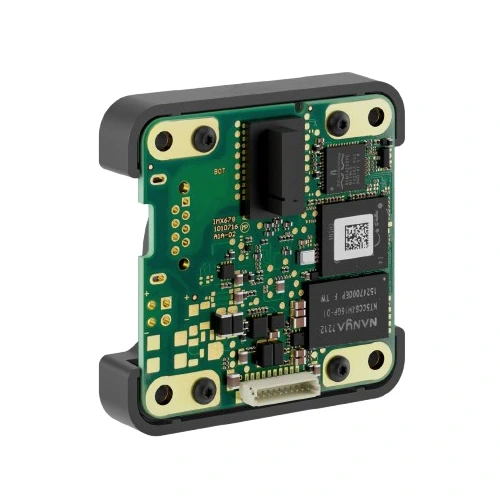

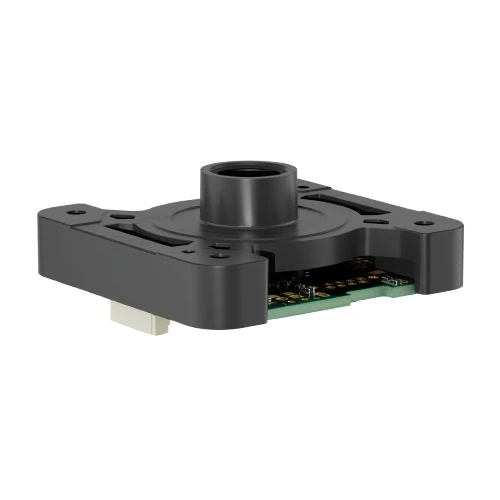

The IDS GV-54J1LE-M-MB Rev.2 is an advanced 8 MP monochrome industrial camera featuring the Sony IMX678 CMOS sensor, delivering a sharp 3856 × 2176 resolution in a compact S-Mount format. Built for demanding machine vision and embedded applications, it uses a rolling shutter and GigE Vision interface to achieve up to 17 fps in triggered operation. Its durable electronics, long-term availability, and wide operating temperature range make it a reliable choice for precision imaging in automation, inspection, and integration projects where space is limited.
Product Description
This model is optimized for tasks requiring detailed image capture, offering a fine 2 µm pixel size and high-quality monochrome output for enhanced defect detection. Its extended exposure range, from microseconds to over 119 seconds, supports both fast-moving and low-light scenarios. The low power draw and small 50 × 50 × 23.5 mm footprint make it ideal for compact equipment designs. With flexible I/O, efficient bandwidth control, and compatibility with IDS imaging software, it streamlines deployment in quality control, robotics, and research applications.
Why IDS GV-54J1LE-M-MB Rev.2?
Because it delivers exceptional image precision in a compact, power-efficient package, perfect for high-demand industrial environments. With its 8 MP Sony CMOS sensor, versatile GigE Vision interface, and long-term availability, it’s the camera you can trust to capture every critical detail—whether in automation lines, research labs, or advanced inspection systems.
What problem does it solve?
It eliminates the challenge of capturing fine details in space-limited, performance-critical setups. By combining high-resolution monochrome imaging, wide exposure flexibility, and stable operation across varying conditions, it ensures engineers can detect, measure, and analyze with confidence—boosting productivity and accuracy in modern vision-driven processes.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Brand & Model | Sony IMX678 (Mono: IMX678-AAMR1-C, Color: IMX678-AAQR1-C) | Delivers high-quality, low-noise imaging with exceptional detail. |
| Interface | GigE Vision | Ensures reliable, high-speed data transfer over standard Ethernet. |
| Interface Speed | Up to 1 Gbps | Supports smooth transmission of full-resolution images without lag. |
| Resolution (H × V) | 3856 × 2176 (8.39 MP) | Captures fine details for inspection, measurement, and analysis. |
| Optical Area (H × V) | 7.712 mm × 4.352 mm | Provides optimal light capture for high-quality imaging. |
| Optical Format | 1/1.8″ (Diagonal 8.86 mm) | Offers a balanced field of view for versatile applications. |
| Lens Mount | S-Mount | Compact, lightweight design for integration in space-limited systems. |
| Pixel Size | 2 µm | Enables sharp, high-resolution images with excellent clarity. |
| Image Memory | On-host via IDS peak software | Flexible memory management for various applications. |
| Frame Rate @ Max. Resolution | 14 fps (Freerun), 17 fps (Trigger Max) | Provides fast capture for dynamic imaging scenarios. |
| Shutter | Rolling Shutter | Suitable for applications prioritizing high resolution over motion freeze. |
| Exposure Time | 0.026 ms – 1999 ms (Up to 119.978 s long exposure) | Handles both fast-moving and low-light conditions. |
| Trigger & Flash I/O | 10-pin I/O connector with GPIO, Trigger In, Flash Out | Supports precise synchronization with external devices. |
| Power Supply | 12–24 V DC | Flexible integration into various industrial setups. |
| Software Tools | IDS peak SDK | Enables advanced image processing and configuration control. |
| Environmental Tolerance | Operation: 0–40 °C, Storage: -20–60 °C, Humidity: 20–80% (non-condensing) | Reliable performance in industrial environments. |
| Housing Protection | Not IP-rated | Intended for protected indoor or enclosed system use. |
| Size & Weight | 50 × 50 × 23.5 mm, 27 g | Compact and lightweight for easy integration into equipment. |
Download IDS GV-54J1LE-M-MB Rev.2 (1011663) Datasheet
Download IDS GV-54J1LE-C-MB Rev.2 (1011661) Datasheet
Download IDS GV-54J1LE Rev.2 Technical Drawing
Low-Light Perimeter & Warehouse Surveillance
Large storage areas and outdoor perimeters often face mixed lighting conditions—bright loading zones alongside dim aisles and shaded corners. Cameras using the Sony IMX678 sensor excel in these situations by delivering clear, detailed images even in minimal light. The sensor’s high sensitivity and strong near-infrared response make it possible to monitor activity without additional lighting. With 4K-class resolution, operators can zoom in on incidents without losing clarity, while PoE or GigE connectivity enables long cable runs and centralized monitoring. This setup greatly reduces missed events and minimizes false alarms in both day and night surveillance.
Intersection Monitoring & License Plate Recognition
Urban intersections demand high clarity under challenging conditions such as headlights, rain, and rapid vehicle movement. The IMX678 sensor’s fine pixel pitch and strong night performance make it well-suited for automatic number plate recognition (ANPR) systems. Short exposures help freeze motion, while infrared-compatible optics capture plate data without glare. When paired with synchronized multi-camera setups, it supports reliable enforcement, tolling, and traffic flow analysis. The result is consistent, high-accuracy plate reads, even in adverse weather or low-light scenarios, enhancing both safety and operational efficiency.
Mobile Robots, SLAM & Facility Mapping
Autonomous mobile robots rely on high-quality vision to navigate complex indoor environments. Using the IMX678 sensor, these systems capture crisp, high-resolution images that provide essential data for mapping and obstacle avoidance. The sensor’s detail-rich output improves feature detection for SLAM algorithms, enabling robots to move confidently in areas with reflective floors, narrow aisles, or changing layouts. Integration with depth sensors or wheel encoders enhances accuracy, while compact, low-power designs make it easy to incorporate into mobile platforms. This results in smoother navigation and fewer operational interruptions.
Digital Microscopy & Electronics Inspection
In electronics manufacturing and repair, detecting tiny defects is critical. IMX678-based imaging systems provide sharp, low-noise visuals that reveal fine details in solder joints, microcircuits, and component assemblies. Even in low-light conditions, the sensor delivers clear images without harsh illumination, reducing glare and operator fatigue. When combined with adjustable optics, technicians can inspect, document, and share results quickly. Its compatibility with standard imaging software and hardware makes integration straightforward for quality control stations, R&D labs, and portable inspection kits.
Astrophotography & Night-Sky Time-Lapse
The IMX678 sensor’s ability to capture clean, detailed images in very low light makes it ideal for astronomical photography. Whether imaging planets, the moon, or deep-sky objects, it preserves subtle textures and fine structures. The high resolution allows significant cropping without loss of clarity, while sensitivity across visible and near-infrared wavelengths brings out faint details in stars and nebulae. When paired with tracking mounts or time-lapse setups, it produces stunning night-sky sequences, making it a popular choice among both amateur and professional astrophotographers.
IDS Accessories (Recommended)
S-Mount Lenses (IDS Approved) – Designed for 1/1.8″ sensors with 2 µm pixel size
GigE Hubs and Cables – For stable multi-camera synchronization in industrial setups
GPIO Interface Boards – To enable external trigger and flash control
Power Supply Units – 12–24 V DC, optimized for IDS camera power requirements
IDS Imaging Cameras
GV-54J1LE-C-MB Rev.2 – 8 MP Sony IMX678 Color GigE Vision Camera
U3-3271LE Series – 3.2 MP Sony IMX265 Compact USB3 Camera
GV-51A2SE Series – 3.2 MP Sony IMX265 GigE Vision Camera
As an authorized distributor of IDS Imaging products, we offer certified expertise and technical support to ensure you get the most out of your IDS Imaging GV-54J1LE camera. We stand by the quality of our products and provide comprehensive warranty services. Our team can also assist with special services like custom integration and creating pre-configured kits tailored to your specific needs.
We also offer:
Custom integration services for embedded systems
Pre-configured vision kits tailored to your project requirements
