$ 299.92
IDS GV-54F1LE Rev.2 uses Sony IMX675 to capture 5 MP at up to 27 fps via GigE; S-Mount, ROI and long exposure enable sharp results in tight spaces.
Product Overview

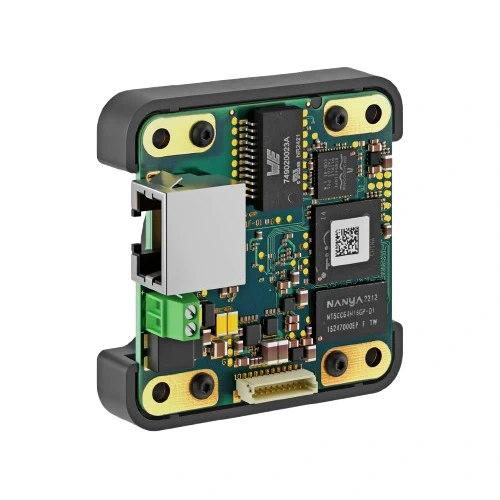

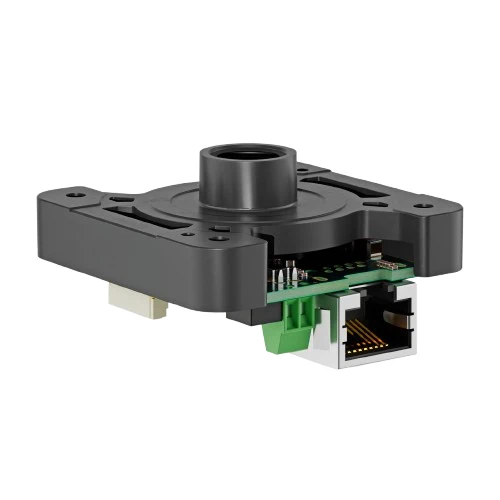

The IDS GV-54F1LE Rev.2 is a compact industrial camera designed for precise imaging tasks, featuring a Sony IMX675 rolling shutter CMOS sensor with a resolution of 2608 × 1960 pixels at up to 27 frames per second. Its S-Mount lens connection and small 50 × 50 × 28.5 mm housing make it easy to integrate into space-limited systems. With 2 μm pixel size and 12-bit depth, it delivers sharp, detailed images even in challenging lighting. The GigE interface ensures stable, long-distance data transfer, making it well-suited for industrial automation, inspection, and measurement applications.
Product Description
This model is available in both color and monochrome options, offering flexible integration into diverse vision projects. It supports advanced functions such as denoising, region of interest selection, decimation, and extended exposure times up to nearly two minutes. Its GigE connectivity allows reliable operation over cable runs of up to 100 meters without additional network equipment. Low power usage and wide operating temperature tolerance enable dependable, continuous performance in demanding production environments. The combination of high-quality imaging, robust design, and versatile features ensures dependable results while keeping system size and costs low.
Why IDS GV-54F1LE Rev.2?
The IDS GV-54F1LE Rev.2 brings professional-grade imaging to compact systems, combining the precision of a 5 MP Sony IMX675 sensor with the reliability of GigE Vision. Its small S-Mount form factor, advanced processing features, and long-term availability make it the perfect balance of performance, durability, and integration flexibility for modern industrial vision setups.
What Problem Does It Solve?
This camera tackles the challenge of achieving high-resolution, stable imaging in space-restricted or complex production environments. By delivering exceptional clarity over long GigE cable runs and operating reliably in demanding conditions, it eliminates limitations caused by distance, lighting variations, or system footprint, empowering precise inspection, measurement, and automation processes.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Brand & Model | Sony IMX675 (Color: IMX675-AAQR1-C, Mono: IMX675-AAMR-C) | High-quality 5 MP CMOS sensor for precise, detailed imaging. |
| Interface | GigE Vision (RJ45) | Reliable long-distance data transfer up to 100 m without repeaters. |
| Interface Speed | 1 Gbps | Stable high-speed image transmission for real-time applications. |
| Resolution (H × V) | 2608 × 1960 pixels (5.11 MP) | Delivers sharp, high-resolution images for inspection and measurement. |
| Optical Area (H × V) | 5.216 mm × 3.920 mm | Larger capture area for more scene detail. |
| Optical Format | 1/2.8″ (Diagonal 6.52 mm / 1/2.45″) | Ideal balance between field of view and depth of field. |
| Lens Mount | S-Mount | Compact integration for space-limited vision systems. |
| Pixel Size | 2 μm | High spatial resolution with excellent detail capture. |
| Image Memory | Host-side via IDS peak software | Flexible storage and processing options. |
| Frame Rate @ Max. Resolution | Up to 27 fps | Smooth, real-time imaging for dynamic processes. |
| Shutter | Rolling Shutter | Cost-effective high-resolution capture. |
| Exposure Time | 0.017 ms – 1999 ms (Long exposure up to 119.978 s) | Flexible lighting adaptability from ultra-fast to ultra-long captures. |
| Trigger & Flash I/O | 10-pin GPIO, hardware/software trigger, flash output | Synchronization with external lighting or motion systems. |
| Power Supply | 12–24 V DC | Broad voltage range for industrial environments. |
| Software Tools | IDS peak SDK | Full control over camera functions and image processing. |
| Environmental Tolerance | Operating: 0–40 °C, Device Temp: 0–85 °C, Storage: -20–60 °C, 20–80% RH non-condensing | Reliable performance in diverse industrial settings. |
| Housing Protection | – (open S-Mount housing) | Lightweight design for easy system integration. |
| Size & Weight | 50 × 50 × 28.5 mm, 30 g | Fits into compact machine vision setups with minimal weight load. |
Download GV-54F1LE-C 1011600 Datasheet
Download GV-54F1LE-M 1011602 Datasheet
Download GV-54F1LE Technical Drawing
Using Dual Speed Streaming, the IMX675 can monitor an entire intersection while simultaneously capturing high-speed close-ups from specific zones. This allows one camera to both track overall traffic patterns and capture sharp license plate details of moving vehicles. The result is streamlined monitoring that reduces hardware costs and enhances traffic enforcement efficiency.
With exceptional sensitivity in dim environments, IMX675-based zoom cameras can deliver sharp, vibrant images at night or in poorly lit areas. Their optical zoom capability allows operators to focus in on distant details without losing clarity, making them ideal for perimeter security, factory monitoring, or medical observation systems.
The IMX675 is found in ultra-compact camera modules small enough to fit into tight mechanical assemblies. Despite their miniature size, these modules offer high resolution, excellent dynamic range, and low power consumption. They are well-suited for robotic vision, drone-based mapping, face recognition, and quality control in space-limited production environments.
This sensor’s strong NIR performance enables imaging in near-dark environments with minimal additional lighting. Industrial cameras using the IMX675 can capture precise images during night operations or in poorly illuminated areas, making them valuable for inspection lines, warehouse automation, and agricultural monitoring after sunset.
The IMX675’s efficient architecture allows lower power use without sacrificing image quality. Its wide dynamic range ensures visibility in both bright daylight and low-light night scenes. This makes it perfect for continuous-use systems like smart city surveillance, vehicle dash cameras, and public safety monitoring where stable performance over long periods is essential.
IDS Accessories (Recommended)
S-Mount Lenses (IDS Approved) – Optimized for 1/2.8″ sensors
GigE Hubs and Cables – For stable long-distance data transmission
GPIO Interface Boards – To enable trigger/flash control with breakout access
