$ 288.65
IDS GV-54F1LE-MB Rev.2 — 5 MP Sony IMX675 GigE camera with S-Mount, 24–27 fps, 12-bit, ROI, PTP, and long-exposure for precise inspection, robotics, and ITS.
Product Overview

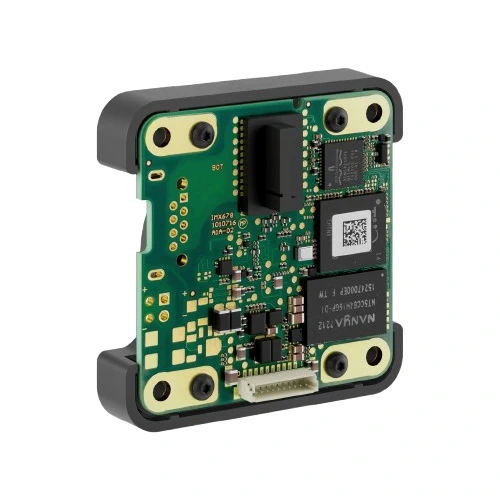

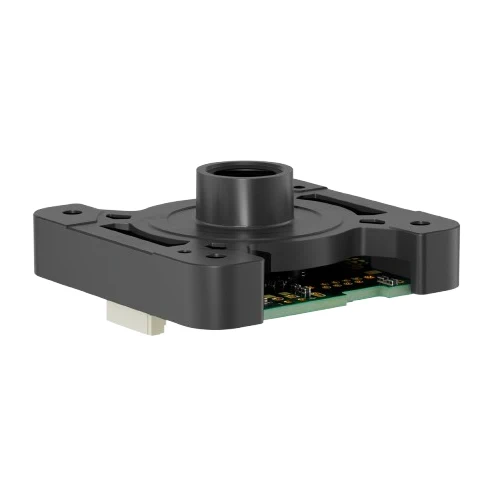

The IDS GV-54F1LE-MB Rev.2 is a compact industrial GigE Vision camera featuring the Sony IMX675 rolling shutter CMOS sensor with 5.11 MP resolution (2608 × 1960). It delivers a balance of image clarity and speed, reaching up to 27 fps in trigger mode. Its S-Mount lens connection, lightweight 27 g design, and compact 50 × 50 × 23.5 mm housing make it well-suited for installations where space is limited. With an extended exposure capability from microseconds to nearly two minutes, this model is ideal for applications requiring both high precision and long integration times.
Product Description & Real-World Benefits
Designed for reliability in industrial and scientific settings, the GV-54F1LE-MB Rev.2 produces sharp, detailed images in varied lighting conditions, aided by its 12-bit depth and flexible region-of-interest options. Its low power consumption and wide operating temperature range support stable use in embedded systems and multi-camera setups. Integration is simplified through IDS image processing software, enabling easy setup, bandwidth optimization, and access to image enhancement tools. Suitable for tasks from quality inspection to traffic analysis, it combines robust performance with a compact, efficient form factor.
Why IDS GV-54F1LE-MB Rev.2?
Because it delivers the perfect blend of high-resolution imaging, compact design, and industrial-grade reliability. Powered by the advanced Sony IMX675 sensor, it captures exceptional detail while fitting into tight spaces, making it a go-to choice for engineers who need uncompromising image quality without sacrificing flexibility or long-term availability.
What Problem Does It Solve?
It tackles the challenge of achieving precision imaging in environments where space, speed, and reliability are all critical. By combining sharp 5 MP visuals, extended exposure control, and efficient power use, it enables accurate analysis and inspection even in demanding conditions, ensuring dependable results in automation, inspection, and research applications.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Brand & Model | Sony IMX675 CMOS (Color: IMX675-AAQR1-C, Mono: IMX675-AAMR-C) | Delivers exceptional image quality with low noise and high sensitivity |
| Interface | GigE Vision (Gigabit Ethernet) | Reliable, long-distance data transfer up to 100 m over standard cables |
| Interface Speed | 1 Gbps | Supports high-speed image streaming for real-time applications |
| Resolution (HxV) | 2608 × 1960 pixels (5.11 MP) | Captures fine detail for inspection, measurement, and analysis |
| Optical Area (HxV) | 5.216 mm × 3.920 mm | Maximizes sensor coverage for optimal light capture |
| Optical Format | 1/2.45″ (Diagonal 6.52 mm) | Compact yet efficient optical size for small-lens integration |
| Lens Mount | S-Mount | Supports lightweight, compact lenses for space-limited setups |
| Pixel Size | 2 µm | Achieves sharp resolution for precise image analysis |
| Image Memory | Utilizes host system memory via IDS peak software | Ensures flexible image handling without on-camera memory limits |
| Frame Rate @ Max. Resolution | 24 fps (freerun), 27 fps (trigger mode) | Supports smooth video capture for dynamic scenes |
| Shutter | Rolling Shutter | Enables high-resolution imaging with reduced motion artifacts |
| Exposure Time | 0.017 ms to 1999 ms (long exposure up to 119 s) | Flexible control for fast or low-light imaging |
| Trigger & Flash I/O | 1× Trigger Input, 1× Flash Output, 2× GPIO | Supports precise synchronization with external devices |
| Power Supply | 12–24 V DC | Flexible power integration for varied system designs |
| Software Tools | IDS peak software suite | Offers advanced configuration, bandwidth control, and preprocessing |
| Environmental Tolerance | Operating: 0°C to +40°C, Storage: –20°C to +60°C | Reliable operation in standard industrial environments |
| Housing Protection | — (board-level, no IP rating) | Allows integration into protected enclosures |
| Size & Weight | 50.0 × 50.0 × 23.5 mm, 27 g | Compact and lightweight for embedded and multi-camera systems |
Download IDS GV-54F1LE-C-MB Rev.2 (1011604) Datasheet
Download IDS GV-54F1LE-M-MB Rev.2 (1011606) Datasheet
Download IDS GV-54F1LE-MB Rev.2 Technical Drawing
Dash cameras using the Sony IMX675 sensor can deliver exceptionally clear images even in very dark environments. Its high sensitivity ensures important details such as license plates and pedestrians remain visible at night, while a wide dynamic range prevents glare from headlights from washing out the scene. The extended exposure control allows reliable recording in parking or low-light conditions without sacrificing image sharpness, making it ideal for continuous vehicle monitoring.
In road monitoring or law enforcement systems, the IMX675 can capture the entire scene while simultaneously focusing on critical areas—such as license plates or moving objects—at higher frame rates. This dual capability reduces unnecessary data transfer while ensuring that fast-moving targets are recorded with clarity, helping improve evidence quality without overloading storage or processing systems.
For aerial survey work, the IMX675 provides consistent, detailed imagery across a wide range of lighting conditions. Whether mapping landscapes in bright sunlight or under partially shaded areas, the sensor maintains accurate color and sharpness. Its compact design and low power draw enable longer drone flight times and higher mapping efficiency, making it a strong choice for professional geographic and agricultural data collection.
In industrial automation, robots equipped with IMX675-based vision modules can perform high-speed pick-and-place or inspection tasks with impressive accuracy. The sensor’s resolution and sensitivity allow it to detect fine features even under limited lighting, while its compact form makes it easy to integrate into robotic arms or conveyor-based vision systems. This combination enhances both reliability and productivity in automated workflows.
The small form factor of IMX675-powered cameras makes them suitable for integration into laboratory instruments and biometric systems. In portable microscopes or eye scanners, the sensor produces sharp, high-contrast images that support detailed analysis. The high frame rate ensures smooth real-time viewing, while the sensor’s low noise performance helps in detecting subtle features important for research and diagnostics.
IDS Accessories (Recommended)
S-Mount Lenses (IDS Approved) – Optimized for 1/2.45″ sensors
GigE Hubs and Cables – Designed for stable multi-camera networking
GPIO Interface Boards – Enables trigger/flash control and easy I/O integration
IDS Imaging Cameras
GV-51A2SE Series – 3.2 MP Sony IMX265 GigE Camera
GV-5040FA Series – 5 MP Sony IMX264 Industrial GigE Camera
As an authorized distributor of IDS Imaging products, we offer certified expertise and technical support to ensure you get the most out of your IDS Imaging GV-54F1LE-MB camera. We stand by the quality of our products and provide comprehensive warranty services. Our team can also assist with special services like custom integration and creating pre-configured kits tailored to your specific needs.
We also offer:
Custom integration services for embedded systems
Pre-configured vision kits tailored to your project requirements
