Original price was: $ 2,377.74.$ 1,828.96Current price is: $ 1,828.96.
Rugged 16MP IDS GV-51N0FA with Sony IMX542, global shutter, IP65/67 housing, and GigE Vision for precise industrial imaging.

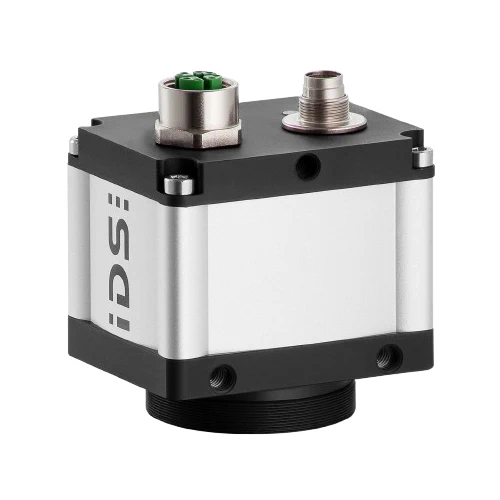

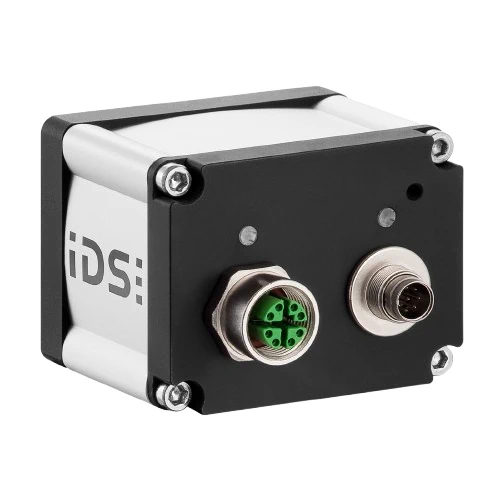

The IDS Imaging GV-51N0FA Series is a rugged, high-resolution industrial GigE Vision camera designed for demanding machine vision tasks. Featuring the Sony IMX542 global shutter sensor in both color (C-HQ) and monochrome (M-GL) variants, this camera delivers 16.2 MP resolution (5328 × 3040) with exceptional detail and minimal distortion, even for high-speed objects.
Its IP65/67-rated aluminum housing ensures protection against dust and water, making it ideal for harsh industrial environments, while Power-over-Ethernet (PoE) simplifies integration.
The IDS Imaging GV-51N0FA series delivers high-resolution industrial imaging with the Sony IMX542 global shutter CMOS sensor, available in color (C-HQ) or monochrome (M-GL) versions. Offering 16.2 MP detail and motion blur–free capture, it supports exposures from microseconds to 120 seconds for both high-speed and low-light applications. Its IP65/67 aluminum housing ensures durability in harsh environments, while GigE Vision with PoE simplifies integration. On-board processing features like auto exposure, gamma correction, LUT, and ROI enhance performance. Ideal for electronics inspection, precision metrology, robotics guidance, and medical device imaging, the GV-51N0FA series combines resolution, flexibility, and reliability for demanding machine vision tasks.
Why GV-51N0FA?
The GV-51N0FA series redefines precision imaging with 16.2 MP clarity, global shutter accuracy, and rugged IP65/67 protection.
What problem does it solve?
It eliminates motion blur, poor low-light visibility, and environmental limitations in machine vision. Perfect for capturing flawless, detailed images in fast, complex, or harsh industrial processes where accuracy is non-negotiable.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Brand & Model | Sony IMX542-AAQJ-C (Color) / Sony IMX542-AAMJ-C (Mono) | Industry-leading global shutter sensor with high sensitivity and precision |
| Interface | GigE Vision (M12, screwable) | Reliable, secure industrial connectivity |
| Interface Speed | 1 Gbps | High-speed data transfer with minimal latency |
| Resolution (H × V) | 5328 × 3040 (16.2 MP) | Captures ultra-fine detail for precise inspection |
| Optical Area (H × V) | 14.599 mm × 8.330 mm | Large imaging area for more scene coverage |
| Optical Format | 1.1″ (Diagonal 20.65 mm) | Supports high-resolution optics for superior clarity |
| Lens Mount | C-Mount | Broad compatibility with industrial lenses |
| Pixel Size | 2.74 µm | Balances resolution and light sensitivity |
| Image Memory | 128 MB | Ensures stable image buffering during high-speed capture |
| Frame Rate @ Max. Resolution | 7.69 fps (free run), up to 9.67 fps (triggered) | Maintains image quality even at full resolution |
| Shutter | Global Shutter | Eliminates motion blur for moving objects |
| Exposure Time | 0.035 ms – 2000 ms (Mono) / 0.12 ms – 2000 ms (Color), up to 120 s long exposure | Flexible for both fast and low-light imaging |
| Trigger & Flash I/O | Opto-isolated trigger input & flash output, 2× GPIO | Synchronized imaging with external devices |
| Power Supply | 12–24 V DC or PoE | Simplifies installation and reduces cabling |
| Software Tools | IDS peak SDK, image pre-processing, auto exposure/gain, gamma, LUT, ROI | Powerful customization for application-specific needs |
| Environmental Tolerance | 0°C to 55°C operation, -20°C to 60°C storage, 0–100% RH (non-condensing) | Reliable performance in varying industrial conditions |
| Housing Protection | IP65/67, aluminum housing | Dustproof and water-resistant for harsh environments |
| Size & Weight | 41 × 53 × 42.7 mm, 175 g | Compact and lightweight for easy integration |
1. High-Speed Sports Broadcasting & Replay Capture
The Sony IMX542 sensor delivers crystal-clear imaging for sports coverage, where every millisecond counts. Its global shutter ensures that even rapid motions—like a golf swing or a tennis serve—are frozen without distortion. Paired with its 16.2 MP resolution, the camera can capture fine details such as ball rotation or subtle player movements. This capability allows broadcast systems to generate slow-motion replays with exceptional clarity, aiding in both audience engagement and professional sports analysis.
2. UAV-Based Aerial Mapping & Photogrammetry
Mounted on drones, the IMX542 sensor enables precise aerial surveys of landscapes, infrastructure, and urban environments. Its high resolution supports accurate 3D reconstruction, while the global shutter prevents image skew during fast flyovers. The sensor’s wide dynamic range captures both shaded and brightly lit areas in a single pass, ensuring that mapping, land surveying, and environmental monitoring projects deliver accurate, consistent results even in challenging light conditions.
3. Flat Panel Display (FPD) Inspection in Manufacturing
For quality control in display manufacturing, the IMX542 sensor captures extremely fine details to detect tiny defects on LCD or OLED panels. The global shutter eliminates motion-related distortions when panels move along production lines, while its high pixel density ensures precise identification of pixel anomalies, scratches, or assembly misalignments. This level of accuracy helps manufacturers maintain consistent product quality and reduce costly rework in high-volume production.
4. Semiconductor Wafer Scanning & Metrology
In semiconductor fabrication, the IMX542 sensor is well-suited for inspecting wafer surfaces for microscopic defects. Its small pixel size allows it to detect cracks, particle contamination, or lithography misalignments with high precision. The global shutter ensures that scanning systems capture distortion-free images even when wafers move quickly under inspection tools, supporting the demanding accuracy requirements of semiconductor metrology.
5. Telecentric Inspection of Mechanical Parts
When paired with telecentric optics, the IMX542 sensor provides distortion-free images across the entire field of view—critical for dimensional measurement of precision components. Its high resolution enables accurate edge detection and feature measurement, while the global shutter removes motion artifacts from part handling or conveyor movement. This makes it an excellent choice for automotive, aerospace, and precision engineering industries where tight tolerances must be consistently verified.
IDS Accessories (Recommended)
C-Mount Lenses (IDS Approved) – Optimized for 1.1″ sensors
GigE Hubs and Cables – For multi-camera setups
GPIO Interface Boards – For trigger and flash control
