$ 654.58 $ 665.85Price range: $ 654.58 through $ 665.85
High-speed 0.51 MP GigE camera with Sony IMX426, global shutter, IP67 housing, 225 fps, ideal for industrial automation and inspection.

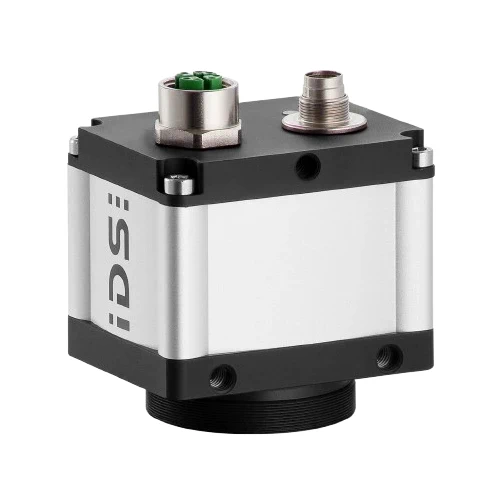

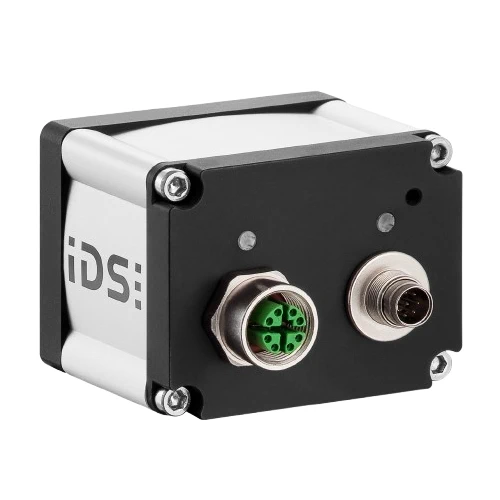

Unlock precision imaging with the GV-51A0FA series from IDS Imaging – available in both monochrome (GV-51A0FA-M-GL) and color (GV-51A0FA-C-HQ) variants. Designed for speed, reliability, and rugged environments, these industrial cameras deliver 225 fps, GigE connectivity, and IP65/67 protection, making them ideal for high-speed inspection and vision-critical automation tasks.
The GV-51A0FA Rev.1.2 series integrates Sony’s advanced IMX426 CMOS sensor with a global shutter and a pixel size of 9 µm, ensuring sharp and blur-free images even at high frame rates. With 0.51 MP resolution (816 x 624 px) and up to 225 frames per second, this camera is perfectly tailored for line scan applications, motion analysis, and machine vision inspection systems where every millisecond counts.
This GigE Vision-compliant model features M12 screwable connectors for Ethernet, C-mount lens interface, and rugged IP65/67 housing – ready for harsh industrial use. It also supports PoE or 12–24V DC power, simplifying integration and deployment in constrained spaces.
The GV-51A0FA tackles the challenge of capturing high-speed, high-precision imaging in tough industrial settings. Whether you’re monitoring fast-moving components, performing optical metrology, or conducting motion capture with millisecond accuracy, this camera provides stable, low-noise imaging and robust mechanical durability in a compact footprint.
| Feature | Details | Benefit |
|---|---|---|
| Sensor Type | Sony IMX426 (CMOS, Global Shutter) | High-speed imaging with minimal motion blur |
| Resolution | 0.51 MP (816 × 624 px) | Optimized for fast processing in line-scan and real-time applications |
| Frame Rate | Up to 225 fps (freerun or triggered) | Reliable high-speed performance for demanding inspection tasks |
| Pixel Size | 9 µm | Excellent sensitivity in low-light and short exposure scenarios |
| Optical Format | 1/1.7″ (Diagonal 10.39 mm) | Compatible with standard industrial lenses |
| Lens Mount | C-Mount | Flexible integration with off-the-shelf optics |
| Shutter Type | Global Shutter | Eliminates motion artifacts in high-speed capture |
| Exposure Time | 0.02 ms to 2000 ms (Color), 0.017 ms to 2000 ms (Mono); up to 90,000 ms long exposure | Supports both ultra-fast capture and long exposures |
| Interface | GigE Vision (M12 screwable connector) | Reliable data transmission with industrial-grade cabling |
| Trigger & Flash I/O | Opto-isolated Trigger, Flash, PWM, GPIO | Enables precise synchronization with external devices |
| Power Supply | 12–24 V DC or PoE | Simplified cabling and installation flexibility |
| Color Model (GV-51A0FA-C-HQ) | BayerRG, RGB8, BGR10p32, Auto White Balance, Color Correction | High-fidelity color reproduction |
| Monochrome Model (GV-51A0FA-M-GL) | Mono8/10/12, Long exposure support (up to 90s) | Superior performance in low-light or NIR setups |
| Onboard Memory | 128 MB image buffer | Minimizes frame loss during high-speed acquisition |
| Software Tools | IDS peak SDK, LUT, Denoiser, Sequencer, ROI, Binning | Advanced configuration, processing, and control features |
| Environmental Tolerance | 0°C to 55°C, 0–100% RH | Built for stable performance in industrial environments |
| Housing Protection | IP65/67-rated Aluminum Housing | Dustproof, waterproof — ideal for harsh factory conditions |
| Size & Weight | 41 × 53 × 42.7 mm, 174 g | Compact form factor for tight integration |
Download Full Datasheet – Monochrome Model (GV-51A0FA-M-GL)
Download Full Datasheet – Color Model (GV-51A0FA-C-HQ)
Technical Drawings available upon request.
High-Speed PCB Inspection
In electronics manufacturing, the camera captures detailed images of PCBs at 225 fps during motion. The global shutter eliminates motion blur, while the large 9 µm pixels enhance contrast in low-reflectivity areas, enabling accurate detection of solder defects and component misplacement in real-time.
Pick-and-Place Robotic Calibration
Automated pick-and-place systems use the camera’s hardware trigger and precise ROI control for alignment accuracy. Its high frame rate allows real-time feedback for motion correction, while global shutter ensures exact positional capture of fast-moving parts without geometric distortion.
Automotive Component Sorting
On conveyor-based sorting lines, the sensor’s high sensitivity and global shutter capture images of small, reflective automotive parts at high speeds. Its robust synchronization with external lighting reduces ghosting, ensuring consistent classification and defect detection even under challenging lighting conditions.
Barcode and OCR Reading
Used in high-speed logistics lines, the sensor captures fast-moving labels with sharpness due to its global shutter. With up to 12-bit depth and region-specific acquisition, it enables precise OCR and barcode reading, reducing error rates in automated material handling and shipment tracking.
Machine Vision in Harsh Environments
The sensor’s low noise performance and programmable exposure make it ideal for industrial monitoring under fluctuating lighting. In machine tools or process control, the global shutter ensures accurate visualization of fast movements while high dynamic range supports reflective or low-contrast surfaces.
Sports Biomechanics & Motion Capture
In motion analysis systems, athletes or moving machinery are recorded at over 200 fps. The global shutter eliminates distortion from rapid movements, and the camera’s onboard memory buffers ensure no frame loss—essential for accurate measurement of velocity, trajectory, and impact forces.
Fluid Dynamics in Research Labs
In scientific experiments, the sensor captures droplets and particles in fluid flow with exceptional clarity. Large pixels improve sensitivity under short exposures, while multi-ROI modes enable specific tracking zones, helping researchers quantify turbulence and particle velocity in transparent or low-contrast mediums.
Vision-Guided Mobile Robots
In mobile robotics, compact systems rely on the sensor’s high frame rate and global shutter to navigate dynamic environments. Real-time imaging of edges, obstacles, and floor textures is achieved even during rapid motion, supporting reliable SLAM and object avoidance algorithms in AGVs and drones.
As an authorized distributor of IDS Imaging products, we offer certified expertise and technical support to ensure you get the most out of your IDS GV-51A0FA GigE camera. We stand by the quality of our products and provide comprehensive warranty services. Our team can also assist with special services like custom integration and creating pre-configured kits tailored to your specific needs.
We also offer:
Custom integration services for embedded systems
Pre-configured vision kits tailored to your project requirements
