Original price was: $ 528.08.$ 406.18Current price is: $ 406.18.
8.39 MP IDS streaming camera with Sony IMX678, RTSP/HTTP support, compact size, and low power—ideal for embedded vision & industrial monitoring.

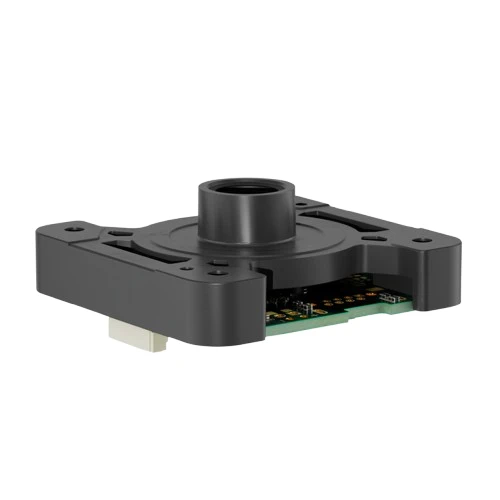

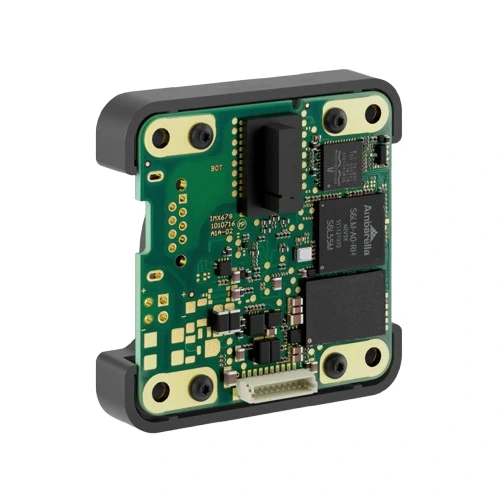

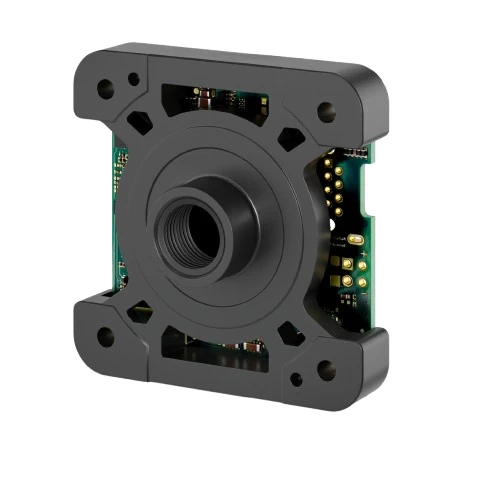

The IDS GL-54J1SLE-C-MB is a compact, high-performance streaming camera equipped with a Sony IMX678 CMOS sensor, optimized for seamless RTSP/HTTP live streams and embedded system integration. With its 8.39 MP resolution, low power consumption, and onboard MJPEG/H.264 compression, this camera delivers professional-grade imaging for factory automation, traffic systems, smart devices, and more.
The GL-54J1SLE-C-MB is a reliable, long-term available streaming camera developed by IDS Imaging, tailored for use in space-constrained embedded vision systems and intelligent monitoring solutions. It integrates Sony’s high-sensitivity IMX678 rolling shutter sensor for exceptional image clarity and real-time streaming capability.
With flexible RTSP and HTTP stream outputs, pre/post-event recording, and REST-API support, this camera is ideal for developers building AI vision platforms, machine monitoring, or smart surveillance applications.
This camera is designed for:
System integrators developing embedded AI vision systems.
Factory automation engineers needing event-based monitoring.
OEMs building smart devices with compact vision capabilities.
Surveillance and traffic system designers requiring 8MP streaming.
It simplifies high-quality image streaming with RTSP/HTTP, enables event-triggered video capture, and supports host-based image pre-processing, all in a compact and power-efficient design. It eliminates the need for bulky camera systems in tight industrial or smart device spaces.
| Feature | Details | Benefit |
|---|---|---|
| Sensor | Sony IMX678, 1/1.8″, 8.39 MP, CMOS color | High-resolution imaging with strong light sensitivity |
| Streaming Output | 2x RTSP, 1x HTTP | Enables live remote viewing and integration with IP systems |
| Resolution & Frame Rate | Up to 3856×2176 @ 30 fps | Smooth, detailed video output |
| Compression Formats | MJPEG, H.264 | Efficient bandwidth use without compromising image quality |
| Event Recording | 120s max with 60s pre/post trigger | Ideal for capturing events before and after triggers |
| Trigger Input | GPIO & Hardware trigger | Precise control for automated workflows |
| Power Consumption | 3.7–4 W, 12–24 V input | Energy-efficient operation |
| Dimensions | 50 x 50 x 23.5 mm | Fits into compact spaces |
| Weight | 27 g | Lightweight, suitable for mobile or embedded devices |
| Lens Mount | S-Mount | Easy integration with miniature lenses |
| Ambient Operating Temp | 0 °C – 30 °C (device), 0 °C – 70 °C (internal) | Suitable for typical indoor/industrial environments |
| Software Interface | WebCockpit, REST API | Easy-to-configure via browser or API-based integration |
| Image Adjustments | Auto exposure/gain/white balance, flip/mirror | Built-in tuning for consistent imaging |
Download Full Specification Datasheet
Technical Drawing PDF
In automated production lines, the GL-54J1SLE-C-MB captures high-resolution images of passing products. Its hardware trigger ensures images are captured exactly when items align, helping identify defects using AI-powered analysis.
Thanks to its compact form factor and RTSP streaming, the camera is ideal for use in pole-mounted or embedded traffic systems. With MJPEG/H.264 support, municipalities can stream real-time footage to traffic management centers.
The small size and onboard streaming allow seamless integration into smart kiosks or vending machines. Use cases include customer behavior tracking or event-based analytics triggered by product selection.
The lightweight camera can be mounted on robotic arms or mobile platforms. Its ability to stream over HTTP/RTSP and adjust exposure automatically makes it perfect for dynamic visual navigation or inspection tasks.
As an authorized distributor of IDS Imaging products, we offer certified expertise and technical support to ensure you get the most out of your IDS GL-54J1SLE-C-MB camera. We stand by the quality of our products and provide comprehensive warranty services. Our team can also assist with special services like custom integration and creating pre-configured kits tailored to your specific needs.
