Type		Master unit	Slave unit
		High-performance type	High-performance type	Standard type	Wire-saving type

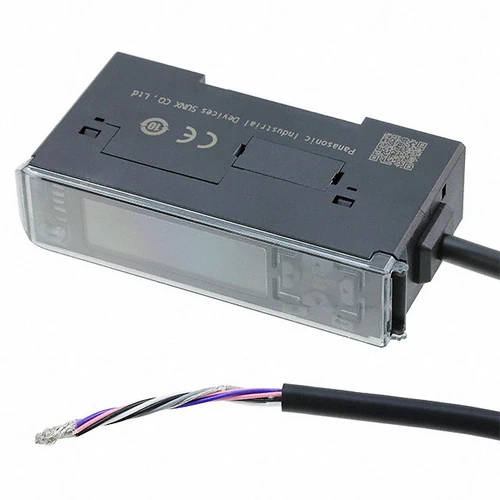

Model No.	NPN output	HG-SC101	HG-SC111	HG-SC112	HG-SC113
	PNP output	HG-SC101-P	HG-SC111-P	HG-SC112-P
Regulatory compliance		EMC Directive, RoHS Directive

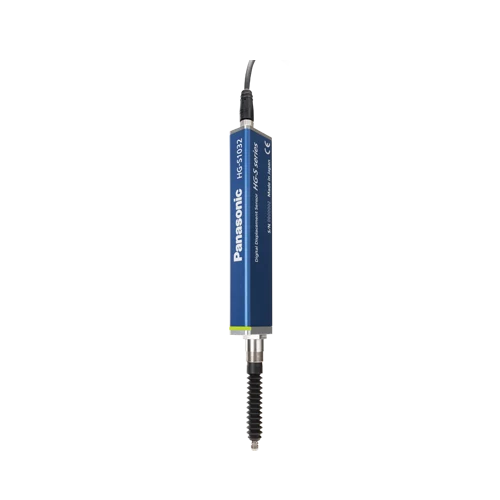

Compatible sensor head		HG-S1010(R), HG-S1110(R), HG-S1032, HG-S1050, HG-S1010-AC, HG-S1110-AC
(Note 8)
Number of		Up to 15 slave units can be connected per master unit.(Note 2)
connectable controllers
Supply voltage		24 V DC ±10 %, including ripple 0.5 V (P-P)
Current consumption		70 mA or less (when sensor head is connected)
(Note 3)
Analog current output		・Current output range: 4 to 20 mA / F.S. (default value)		–
(Note 4)		・Error output: 0 mA
		・Linearity: ±0.25 % F.S.
		・Load impedance: 250 Ω max.
Control output		<NPN output type>			–
(Output 1,		NPN open-collector transistor
Output 2,		・Maximum sink current: 50 mA(Note 5)
Output 3)		・Applied voltage: 30 V DC or less
		(between output and 0 V)
		・Residual voltage: 1.5 V or less
		(at 50 mA sink current)
		・Leakage current: 0.1 mA or less

		<PNP output type>
		PNP open-collector transistor
		・Maximum source current: 50 mA(Note 5)
		・Applied voltage: 30 V DC or less
		(between output and +V)
		・Residual voltage: 1.5 V or less
		(at 50 mA source current)
		・Leakage current: 0.1 mA or less
	Short-circuit	Incorporated (automatic reset type)			–
	protection
	Judgment	NO / NC switching method			–
	output
	Alarm output	Open when alarm occurs			–
External input		<NPN output type>			–
(Input 1,		Non-contact input or
Input 2,		NPN open-collector transistor
Input 3)		・Input condition:
		Invalid (+8 V to +V DC or open)
		Valid (0 to +1.2 V DC)
		・Input impedance: 10 kΩ approx.

		<PNP output type>
		Non-contact input or
		PNP open-collector transistor
		・Input condition:
		Invalid (0 to +0.6 V DC or open)
		Valid (+4 V to +V DC)
		・Input impedance: 10 kΩ approx.
	Trigger input	Input time 2 ms or more (ON)			–
	Preset input	Input time 20 ms or more (ON)			–
	Reset input	Input time 20 ms or more (ON)			–
	Bank input A / B(Note 6)	Input time 20 ms or more (ON)			–
Response time		3 ms, 5 ms, 10 ms, 100 ms, 500 ms, 1,000 ms switching type
Digital display		204-segment LCD
Display resolution		0.1 μm 0.004 mil
Display range		-199.9999 to 199.9999 mm -7.874 to 7.874 in
Pollution degree		2
Operating altitude		2000 m 6561.68 ft or less(Note 7)
Environmental	Protection	IP40 (IEC)
resistance	Ambient	-10 to +50 ℃ +14 to +122 ℉ (No condensation or icing)(Note 5), Storage: -20 to +60 ℃ -4 to +140 ℉
	temperature
	Ambient	35 to 85 % RH, Storage: 35 to 85 % RH
	humidity
	Voltage withstandability	1,000 V AC for one min. between all supply terminals connected together and enclosure
	Insulation resistance	20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure
	Vibration	10 to 150 Hz frequency, 0.75 mm 0.030 in double amplitude (10 to 58Hz), maximum acceleration 49 m/s² (58 to 150 Hz) in X, Y and Z directions for two hours each
	resistance
	Shock	98 m/s2 acceleration (10 G approx.) in X, Y and Z directions five times each
	resistance
Material		Case: Polycarbonate, Cover: Polycarbonate, Switches: Polyacetal
Cable		0.2 mm² 2-core cable	0.15 mm², 7‑core composite cable, 2 m 6.562 ft long	0.15 mm², 6‑core cabtyre cable, 2 m 6.562 ft long	–
		(brown and blue lead wires) /
		0.15 mm² 7‑core
		composite cable, 2 m 6.562 ft long
Weight		Net weight:	Net weight:	Net weight:	Net weight:
		140 g approx.	140 g approx.	130 g approx.	60 g approx.

Notes:

1)	Where measurement conditions have not been specified precisely, the conditions used were as follows: supply voltage 24 V DC, ambient temperature +20 ℃ +68 ℉.
2)	When a digital displacement sensor communication unit is connected, a maximum of 14 slave units can be connected per master unit.
3)	Current consumption does not include analog current output.
4)	Linearity F.S. = 16 mA, and is linearity with respect to digitally measured values.
5)	When slave units are connected to the master unit, the maximum sink current / source current of the control output and ambient temperature vary depending on the number of connected slave units as shown below.

Number of connected slave units	Maximum sink current / source current of control output	Ambient temperature
1 to 7 units	20 mA	-10 to +45 ℃ +14 to +113 ℉
8 to 15 units	10 mA	-10 to +45 ℃ +14 to +113 ℉

6)	Banks 1 to 3 can be selected by switching bank input A / B.
7)	Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m.

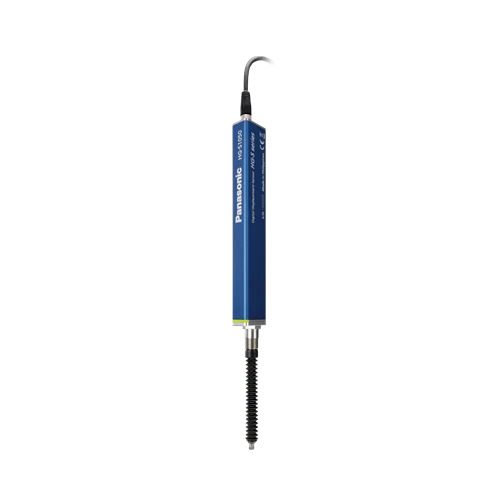

8)	Always connect the Air-driven type (HG-S1010-AC / HG-S1110-AC) and the 50 mm 1.969 in type (HG-S1050) to an HG-SC□ controller manufactured February 2019 or later.

Type		General purpose		High precision
		Standard type	Low measuring	Standard type	Low measuring
			force type		force type

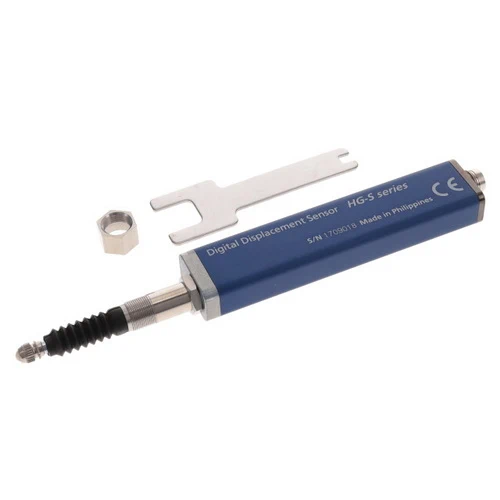

Model No.		HG-S1010	HG-S1010R	HG-S1110	HG-S1110R
Regulatory compliance		EMC Directive, RoHS Directive
Compatible controller		HG-SC101(-P), HG-SC111(-P), HG-SC112(-P), HG-SC113
Position detection method		Optical absolute linear encoder method
Measurement range		10 mm 0.394 in
Stroke		10.5 mm 0.413 in or more
Measuring	Downward	1.65 N or less	0.35 N or less	1.65 N or less	0.35 N or less
force	mount	1.10 N (Note 3)	0.30 N (Note 3)	1.10 N (Note 3)	0.30 N (Note 3)
(Note 2)	Upward	1.35 N or less	–	1.35 N or less	–
	mount	0.85 N (Note 3)		0.85 N (Note 3)
	Side	1.50 N or less	0.25 N or less	1.50 N or less	0.25 N or less
	mount	0.95 N (Note 3)	0.20 N (Note 3)	0.95 N (Note 3)	0.20 N (Note 3)
Resolution		0.5 μm 0.020 mil		0.1 μm 0.004 mil
Sampling period		1 ms
Indication accuracy		Full range: 2.0 μm 0.079 mil or less		Full range: 1.0 μm 0.039 mil or less
(P-P)		Narrow range: 1.0 μm 0.039 mil or less		Narrow range: 0.5 μm 0.020 mil or less
		(any 60 μm 2.362 mil)		(any 60 μm 2.362 mil)
Tip deviation amount		35 μm 1.378 mil (typical)(Note 4)
Hot swap function		Incorporated
Operation indicator		2-color LED (Orange / Green)
Pollution degree		2
Operating altitude		2,000 m 6561.68 ft or less (Note 5)
Environmental	Protection	IP67 (IEC) (Note 6)	–	IP67 (IEC) (Note 6)	–
resistance	Ambient	-10 to +55 ℃ +14 to +131 ℉
	temperature	(No condensation or icing),
		Storage: -20 to +60 ℃ -4 to +140 ℉
	Ambient	35 to 85 % RH, Storage: 35 to 85 % RH
	humidity
	Insulation	100 MΩ or more at 250 V DC
	resistance
	Vibration	10 to 500 Hz frequency, 3 mm 0.118 in double amplitude (10 to 58 Hz), maximum acceleration 196 m/s², (58 to 500 Hz) in X, Y, and Z directions for two hours each
	resistance
	Shock	1,960 m/s² acceleration in X, Y and Z directions three times each
	resistance
Grounding method		Capacitor grounding
Material	Body	Zinc
	Holder	Stainless steel
	Spindle	Tool steel
	Probe (Note 7)	Brass (body) / Ceramic (ball)
	Rubber bellows	NBR (black)
Weight		Net weight: 80 g approx.
Accessories		Standard type (HG-S1010 / HG-S1110): Sensor head fastening wrench 1 pc., Mounting nut 1 pc.
		Low measuring force type (HG-S1010R / HG-S1110R): Sensor head fastening wrench 1 pc., Mounting nut 1 pc., Rubber bellows 1 pc.

Notes:

1)	Where measurement conditions have not been specified precisely, the conditions used were as follows: standard type measurement probe (HG‑SS10C), ambient temperature +20 ℃ +68 ℉, and a clean atmosphere where dust and liquids such as water and oil do not come in contact with the equipment.
2)	In the case of low measurement force type (HG-S1010R / HG-S1110R), measurements were obtained with products in standard configuration without rubber bellows.
3)	Typical value near center of measurement.
4)	Value calculated from the clearance of the upper and lower plain bearings.
5)	Do not use or store in an environment that has been pressurized to an air pressure higher than the atmospheric pressure at 0 m.
6)	Excludes damage and deterioration to rubber bellows due to external causes.
7)	The probes (optional) are also available.
