1. Lockout/Tagout (LOTO) Safety Isolation for Automated Packaging Lines

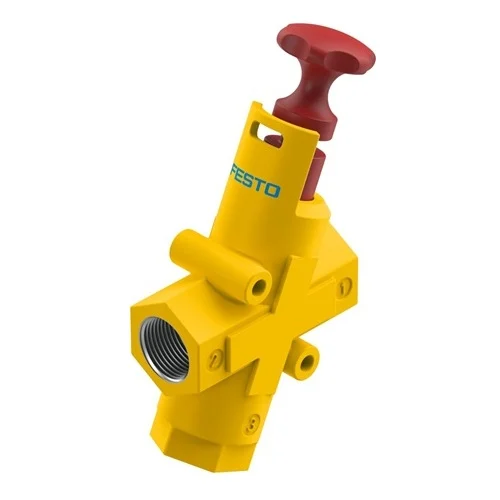

Used as the primary manual safety isolation point for pneumatic packaging machinery. The valve is installed at the service unit (FRL) inlet to allow maintenance personnel to manually shut off the air supply and verify zero energy state before entering the machine envelope.
Problem SolvedPrevents accidental machine startup and releases trapped residual pressure during maintenance, mitigating crush hazards for technicians. The specific 'LO' design enables padlocking in the closed position, complying with OSHA 29 CFR 147 standards for hazardous energy control.
3/2 bistable valve functionG1 exhaust port for rapid ventingOSHA compliancePadlock facilityResidual pressure exhaust
2. Corrosion-Resistant Air Control for Industrial Car Wash Systems
Functions as the main air supply shut-off for pneumatic brushes and dryers in vehicle wash facilities. The valve controls the compressed air distribution to high-humidity zones where cleaning agents and water vapor are constantly present.
Problem SolvedStandard valves fail quickly due to corrosion from humidity and aggressive cleaning chemicals (soaps, waxes). This valve's CRC 3 (High Corrosion Stress) rating and PBT/Die-cast aluminium construction resist these harsh environmental factors, ensuring long service life and reducing downtime.
CRC 3 corrosion resistanceAmbient temperature -10°C ... 60°CChemical resistancePBT housingSoft sealing principle
3. Main Air Supply for Outdoor Timber Processing Machinery
Acts as the manual master switch for pneumatic clamping and feed cylinders on outdoor sawmill equipment. It manages high-volume air flow required to drive heavy-duty actuators used in log handling and cutting operations.
Problem SolvedOutdoor timber processing requires valves that withstand weather exposure while delivering high flow rates for heavy loads. This unit provides a massive 5200 l/min flow rate (exceptional for a G3/8 valve) to power large cylinders, while its CRC 3 rating protects it from rain and outdoor humidity.
Flow rate 5200 l/minOperating pressure 1...10 barOutdoor exposure suitableManual piston gate actuationG3/8 pneumatic connection
