$ 25.53 $ 50.83Price range: $ 25.53 through $ 50.83
| Main | ||||
| Part Number | XB4BW33B5 | XB4BW33M5 | XB4BW34B5 | XB4BW34M5 |
| Product Series | Harmony XB4 | Harmony XB4 | Harmony XB4 | Harmony XB4 |
| product type | Lighting button | Lighting button | Lighting button | Lighting button |
| product short name | XB4 | XB4 | XB4 | XB4 |
| frame material | Nickel plated metal | Nickel plated metal | Nickel plated metal | Nickel plated metal |
| Retaining ring material | Zamak | Zamak | Zamak | Zamak |
| Installation diameter | 22 mm | 22 mm | 22 mm | 22 mm |
| Quantity sold separately | 1 | 1 | 1 | 1 |
| Control head type | Standard | Standard | Standard | Standard |
| Signal unit head shape | Round | Round | Round | Round |
| Operating head type | Spring return | Spring return | Spring return | Spring return |
| joystick shape | Green flat head | Green flat head | Red crew cut | Red crew cut |
| Joystick Additional Information | With flat mirror | With flat mirror | With flat mirror | With flat mirror |
| contact type | 1NO + 1NC | 1NO + 1NC | 1NO + 1NC | 1NO + 1NC |
| contact action | Slow break | Slow break | Slow break | Slow break |
| Wiring capacity | Screw-on, <= 2 x 1.5 mm² with wire terminals to EN/IEC 60947-1 Screw-on, 1 x 0.22…2 x 2.5 mm² without wire terminals to EN/IEC 60947-1 |
Screw-on, <= 2 x 1.5 mm² with wire terminals to EN/IEC 60947-1 Screw-on, 1 x 0.22…2 x 2.5 mm² without wire terminals to EN/IEC 60947-1 |
Screw-on, <= 2 x 1.5 mm² with wire terminals to EN/IEC 60947-1 Screw-on, 1 x 0.22…2 x 2.5 mm² without wire terminals to EN/IEC 60947-1 |
Screw-on, <= 2 x 1.5 mm² with wire terminals to EN/IEC 60947-1 Screw-on, 1 x 0.22…2 x 2.5 mm² without wire terminals to EN/IEC 60947-1 |
| light source | Universal LED | Universal LED | Universal LED | Universal LED |
| lamp holder | Built-in BA 9s base | Built-in BA 9s base | Built-in BA 9s base | Built-in BA 9s base |
| Rated supply voltage [Us] | 24 V AC/DC at 50/60 Hz on | 230…240 V AC at 50/60 Hz at | 24 V AC/DC at 50/60 Hz on | 230…240 V AC at 50/60 Hz at |
| Additional information | ||||
| high | 47 mm | 47 mm | 47 mm | 47 mm |
| width | 30 mm | 30 mm | 30 mm | 30 mm |
| depth | 57 mm | 57 mm | 57 mm | 57 mm |
| ISO n°1 terminals | (21-22)NC (13-14)NO |
(13-14)NO (21-22)NC |
(13-14)NO (21-22)NC |
(13-14)NO (21-22)NC |
| Product Weight | 0.097kg | 0.097kg | 0.097kg | 0.097kg |
| High pressure washer resistance | 7000000 Pa at 55 °C, distance: 0.1 m | 7000000 Pa at 55 °C, distance: 0.1 m | 7000000 Pa at 55 °C, distance: 0.1 m | 7000000 Pa at 55 °C, distance: 0.1 m |
| Wire use | Standard contact | Standard contact | Standard contact | Standard contact |
| force open | Complies with EN/IEC 60947-5-1 Annex K | Complies with EN/IEC 60947-5-1 Annex K | Complies with EN/IEC 60947-5-1 Annex K | Complies with EN/IEC 60947-5-1 Annex K |
| operational communication | 1.5 mm (NC changes electrical state) 2.6 mm (NO changes electrical state) 4.3 mm (total stroke) |
1.5 mm (NC changes electrical state) 2.6 mm (NO changes electrical state) 4.3 mm (total stroke) |
1.5 mm (NC changes electrical state) 2.6 mm (NO changes electrical state) 4.3 mm (total stroke) |
1.5 mm (NC changes electrical state) 2.6 mm (NO changes electrical state) 4.3 mm (total stroke) |
| control | 3.5 N NC change electrical status 3.8 N |
3.5 N NC change electrical status 3.8 N |
3.5 N NC change electrical status 3.8 N |
3.5 N NC change electrical status 3.8 N |
| Mechanical life | 10000000 times | 10000000 times | 10000000 times | 10000000 times |
| Tightening torque | 0.8…1.2 Nm conforming to EN 60947-1 | 0.8…1.2 Nm conforming to EN 60947-1 | 0.8…1.2 Nm conforming to EN 60947-1 | 0.8…1.2 Nm conforming to EN 60947-1 |
| screw head shape | Cross compatible with Philips no 1 screwdriversCross compatible with pozidriv No 1 screwdriversSlotted compatible with flat Ø 4 mm screwdriversSlotted compatible with flat Ø 5.5 mm screwdrivers |
Cross compatible with Philips no 1 screwdriversCross compatible with pozidriv No 1 screwdriversSlotted compatible with flat Ø 4 mm screwdriversSlotted compatible with flat Ø 5.5 mm screwdrivers |
Cross compatible with Philips no 1 screwdriversCross compatible with pozidriv No 1 screwdriversSlotted compatible with flat Ø 4 mm screwdriversSlotted compatible with flat Ø 5.5 mm screwdrivers |
Cross compatible with Philips no 1 screwdriversCross compatible with pozidriv No 1 screwdriversSlotted compatible with flat Ø 4 mm screwdriversSlotted compatible with flat Ø 5.5 mm screwdrivers |
| contact material | Silver Alloy (Silver/Nickel) | Silver Alloy (Silver/Nickel) | Silver Alloy (Silver/Nickel) | Silver Alloy (Silver/Nickel) |
| Short circuit protection | 10 A Cartridge fuse type gG conforming to EN/IEC 60947-5-1 | 10 A Cartridge fuse type gG conforming to EN/IEC 60947-5-1 | 10 A Cartridge fuse type gG conforming to EN/IEC 60947-5-1 | 10 A Cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Conventional thermal current [Ith] | 10 A conforming to EN/IEC 60947-5-1 | 10 A conforming to EN/IEC 60947-5-1 | 10 A conforming to EN/IEC 60947-5-1 | 10 A conforming to EN/IEC 60947-5-1 |
| Rated insulation voltage [Ui] | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Rated impulse withstand voltage [Uimp] | 6 kV conforming to EN/IEC 60947-1 | 6 kV conforming to EN/IEC 60947-1 | 6 kV conforming to EN/IEC 60947-1 | 6 kV conforming to EN/IEC 60947-1 |
| Rated operating current [Ie] | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 126 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 126 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 126 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 126 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Electrical life | 1000000 cycles, AC-15, 2 A at 230 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, AC-15, 3 A at … at 120 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, AC-15, 4 A at 24 V, operating rating <3600 cycles/hour hours, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947 -5-1 Appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Appendix C |
1000000 cycles, AC-15, 2 A at 230 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, AC-15, 3 A at … at 120 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, AC-15, 4 A at 24 V, operating rating <3600 cycles/hour hours, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947 -5-1 Appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Appendix C |
1000000 cycles, AC-15, 2 A at 230 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, AC-15, 3 A at … at 120 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, AC-15, 4 A at 24 V, operating rating <3600 cycles/hour hours, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947 -5-1 Appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Appendix C |
1000000 cycles, AC-15, 2 A at 230 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, AC-15, 3 A at … at 120 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, AC-15, 4 A at 24 V, operating rating <3600 cycles/hour hours, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947 -5-1 Appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Appendix C |
| electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA at clean ambient conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA at clean ambient conforming to EN/IEC 60947-5-4 IEC 60947-5-4 |
Λ < 10exp(-6) at 5 V and 1 mA at clean ambient conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA at clean ambient conforming to EN/IEC 60947-5-4 IEC 60947-5-4 |
Λ < 10exp(-6) at 5 V and 1 mA at clean ambient conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA at clean ambient conforming to EN/IEC 60947-5-4 IEC 60947-5-4 |
Λ < 10exp(-6) at 5 V and 1 mA at clean ambient conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA at clean ambient conforming to EN/IEC 60947-5-4 IEC 60947-5-4 |
| signal type | Constant | Constant | Constant | Constant |
| current consumption | 18 mA | 14 mA | 18 mA | 14 mA |
| service life | 100000 hours at 25°C, rated voltage | 100000 hours at 25°C, rated voltage | 100000 hours at 25°C, rated voltage | 100000 hours at 25°C, rated voltage |
| surge withstand | 1 kV conforming to IEC 61000-4-5 | 1 kV conforming to IEC 61000-4-5 | 1 kV conforming to IEC 61000-4-5 | 1 kV conforming to IEC 61000-4-5 |
| Power supply voltage range | 19.2…30 V DC 21.6…26.4 V AC |
195…264 V AC | 19.2…30 V DC 21.6…26.4 V AC |
195…264 V AC |
| Equipment introduction | Product (not parts) | Product (not parts) | Product (not parts) | Product (not parts) |
| environment | ||||
| Protective treatment | TH | TH | TH | TH |
| storage environment temperature | -40…70°C | -40…70°C | -40…70°C | -40…70°C |
| operating temperature | -40…70°C | -40…70°C | -40…70°C | -40…70°C |
| Electric Shock Protection Level | Class I according to IEC 60536 | Class I according to IEC 60536 | Class I according to IEC 60536 | Class I according to IEC 60536 |
| IP protection class | IP66 conforms to IEC 60529 IP67 IP69 IP69K |
IP66 conforms to IEC 60529 IP67 IP69 IP69K |
IP66 conforms to IEC 60529 IP67 IP69 IP69K |
IP66 conforms to IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
NEMA 13 NEMA 4X |
NEMA 13 NEMA 4X |
NEMA 13 NEMA 4X |
| IK protection class | IK06 conforms to IEC 50102 | IK06 conforms to IEC 50102 | IK06 conforms to IEC 50102 | IK06 conforms to IEC 50102 |
| Standards compliant | EN/IEC 60947-5-1 JIS C8201-5-1 EN/IEC 60947-5-5 CSA C22.2 No 14 EN/IEC 60947-5-4 EN/IEC 60947-1 UL 508 JIS C8201-1 |
UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-5 JIS C8201-5-1 EN/IEC 60947-5-4 JIS C8201-1 |
EN/IEC 60947-5-5 UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C8201-5-1 JIS C8201-1 |
EN/IEC 60947-1 JIS C8201-5-1 EN/IEC 60947-5-5 CSA C22.2 No 14 EN/IEC 60947-5-1 UL 508 EN/IEC 60947-5-4 JIS C8201-1 |
| certified product | UL CSA listed by LROS (Lloyds register of shipping) DNV BV GL |
UL CSA listed by BV LROS (Lloyds register of shipping) DNV GL |
UL DNV CSA LROS (Lloyds register of shipping) GL listed by BV |
UL CSA LROS (Lloyds register of shipping) DNV GL listed by BV |
| Anti-vibration | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| impact resistance | 30 gn (duration = 18 ms) for half-sine shocks according to IEC 60068-2-27 50 gn (duration = 11 ms) for half-sine shocks according to IEC 60068-2-27 |
30 gn (duration = 18 ms) for half-sine shocks according to IEC 60068-2-27 50 gn (duration = 11 ms) for half-sine shocks according to IEC 60068-2-27 |
30 gn (duration = 18 ms) for half-sine shocks according to IEC 60068-2-27 50 gn (duration = 11 ms) for half-sine shocks according to IEC 60068-2-27 |
30 gn (duration = 18 ms) for half-sine shocks according to IEC 60068-2-27 50 gn (duration = 11 ms) for half-sine shocks according to IEC 60068-2-27 |
| Anti-instantaneous pulse capability | 2 kV conforming to IEC 61000-4-4 | 2 kV conforming to IEC 61000-4-4 | 2 kV conforming to IEC 61000-4-4 | 2 kV conforming to IEC 61000-4-4 |
| Anti-electromagnetic field | 10 V/m conforming to IEC 61000-4-3 | 10 V/m conforming to IEC 61000-4-3 | 10 V/m conforming to IEC 61000-4-3 | 10 V/m conforming to IEC 61000-4-3 |
| Anti-static discharge | 6 kV in contact (metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
6 kV in contact (metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
6 kV in contact (metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
6 kV in contact (metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic radiation | Class B according to IEC 55011 | Class B according to IEC 55011 | Class B according to IEC 55011 | Class B according to IEC 55011 |
| packaging unit | ||||
| Unit Type of Package 1 | PCE | PCE | PCE | PCE |
| Number of Units in Package 1 | 1 | 1 | 1 | 1 |
| Package 1 Height | 3.500 cm | 3.500 cm | 3.500 cm | 3.500 cm |
| Package 1 Width | 5.500 cm | 5.500 cm | 5.500 cm | 5.500 cm |
| Package 1 Length | 8.500 cm | 8.500 cm | 9.000 cm | 8.500 cm |
| Package 1 Weight | 97.000g | 97.000g | 96.000g | 97.000g |
| Unit Type of Package 2 | S03 | S03 | S03 | S03 |
| Number of Units in Package 2 | 150 | 100 | 150 | 100 |
| Package 2 Height | 30.000 cm | 30.000 cm | 30.000 cm | 30.000 cm |
| Package 2 Width | 30.000 cm | 30.000 cm | 30.000 cm | 30.000 cm |
| Package 2 Length | 40.000 cm | 40.000 cm | 40.000 cm | 40.000 cm |
| Package 2 Weight | 14.919kg | 10.136kg | 14.867kg | 10.119kg |
| Unit Type of Package 3 | P06 | P06 | P06 | P06 |
| Number of Units in Package 3 | 1200 | 800 | 1200 | 800 |
| Package 3 Height | 75.000 cm | 75.000 cm | 75.000 cm | 75.000 cm |
| Package 3 Width | 80.000 cm | 80.000 cm | 80.000 cm | 80.000 cm |
| Package 3 Length | 60.000 cm | 60.000 cm | 60.000 cm | 60.000 cm |
| Package 3 Weight | 127.352kg | 89.088kg | 126.932kg | 88.952kg |
| contract warranty | ||||
| Warranty | 18 months | 18 months | 18 months | 18 months |
| Main | ||
| Part Number | XB4BW35B5 | XB4BW35M5 |
| Product Series | Harmony XB4 | Harmony XB4 |
| product type | Lighting button | Lighting button |
| product short name | XB4 | XB4 |
| frame material | Nickel plated metal | Nickel plated metal |
| Retaining ring material | Zamak | Zamak |
| Installation diameter | 22 mm | 22 mm |
| Quantity sold separately | 1 | 1 |
| Control head type | Standard | Standard |
| Signal unit head shape | Round | Round |
| Operating head type | Spring return | Spring return |
| joystick shape | Orange flat head | Orange flat head |
| Joystick Additional Information | With flat mirror | With flat mirror |
| contact type | 1NO + 1NC | 1NO + 1NC |
| contact action | Slow break | Slow break |
| Wiring capacity | Screw-on, <= 2 x 1.5 mm² with wire terminals to EN/IEC 60947-1 Screw-on, 1 x 0.22…2 x 2.5 mm² without wire terminals to EN/IEC 60947-1 |
Screw-on, <= 2 x 1.5 mm² with wire terminals to EN/IEC 60947-1 Screw-on, 1 x 0.22…2 x 2.5 mm² without wire terminals to EN/IEC 60947-1 |
| light source | Universal LED | Universal LED |
| lamp holder | Built-in BA 9s base | Built-in BA 9s base |
| Rated supply voltage [Us] | 24 V AC/DC at 50/60 Hz on | 230…240 V AC at 50/60 Hz at |
| Additional information | ||
| high | 47 mm | 47 mm |
| width | 30 mm | 30 mm |
| depth | 101 mm | 101 mm |
| ISO n°1 terminals | (13-14)NO (21-22)NC |
(21-22)NC (13-14)NO |
| Product Weight | 0.097kg | 0.097kg |
| High pressure washer resistance | 7000000 Pa at 55 °C, distance: 0.1 m | 7000000 Pa at 55 °C, distance: 0.1 m |
| Wire use | Standard contact | Standard contact |
| force open | Complies with EN/IEC 60947-5-1 Annex K | Complies with EN/IEC 60947-5-1 Annex K |
| operational communication | 1.5 mm (NC changes electrical state) 2.6 mm (NO changes electrical state) 4.3 mm (total stroke) |
1.5 mm (NC changes electrical state) 2.6 mm (NO changes electrical state) 4.3 mm (total stroke) |
| control | 3.5 N NC change electrical status 3.8 N |
3.5 N NC change electrical status 3.8 N |
| Mechanical life | 10000000 times | 10000000 times |
| Tightening torque | 0.8…1.2 Nm conforming to EN 60947-1 | 0.8…1.2 Nm conforming to EN 60947-1 |
| screw head shape | Cross compatible with Philips no 1 screwdriversCross compatible with pozidriv No 1 screwdriversSlotted compatible with flat Ø 4 mm screwdriversSlotted compatible with flat Ø 5.5 mm screwdrivers |
Cross compatible with Philips no 1 screwdriversCross compatible with pozidriv No 1 screwdriversSlotted compatible with flat Ø 4 mm screwdriversSlotted compatible with flat Ø 5.5 mm screwdrivers |
| contact material | Silver Alloy (Silver/Nickel) | Silver Alloy (Silver/Nickel) |
| Short circuit protection | 10 A Cartridge fuse type gG conforming to EN/IEC 60947-5-1 | 10 A Cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Conventional thermal current [Ith] | 10 A conforming to EN/IEC 60947-5-1 | 10 A conforming to EN/IEC 60947-5-1 |
| Rated insulation voltage [Ui] | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| Rated impulse withstand voltage [Uimp] | 6 kV conforming to EN/IEC 60947-1 | 6 kV conforming to EN/IEC 60947-1 |
| Rated operating current [Ie] | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 126 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 0.55 A at 126 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Electrical life | 1000000 cycles, AC-15, 2 A at 230 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, AC-15, 3 A at … at 120 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, AC-15, 4 A at 24 V, operating rating <3600 cycles/hour hours, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947 -5-1 Appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Appendix C |
1000000 cycles, AC-15, 2 A at 230 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, AC-15, 3 A at … at 120 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, AC-15, 4 A at 24 V, operating rating <3600 cycles/hour hours, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Annex C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947 -5-1 Appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rating <3600 cycles/hour, duty factor: 0.5 conforming to EN/IEC 60947-5-1 Appendix C |
| electrical reliability | Λ < 10exp(-6) at 5 V and 1 mA at clean ambient conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA at clean ambient conforming to EN/IEC 60947-5-4 IEC 60947-5-4 |
Λ < 10exp(-6) at 5 V and 1 mA at clean ambient conforming to EN/IEC 60947-5-4 Λ < 10exp(-8) at 17 V and 5 mA at clean ambient conforming to EN/IEC 60947-5-4 IEC 60947-5-4 |
| signal type | Constant | Constant |
| current consumption | 18 mA | 14 mA |
| service life | 100000 hours at 25°C, rated voltage | 100000 hours at 25°C, rated voltage |
| surge withstand | 1 kV conforming to IEC 61000-4-5 | 1 kV conforming to IEC 61000-4-5 |
| Power supply voltage range | 19.2…30 V DC 21.6…26.4 V AC |
195…264 V AC |
| Equipment introduction | Product (not parts) | Product (not parts) |
| environment | ||
| Protective treatment | TH | TH |
| storage environment temperature | -40…70°C | -40…70°C |
| operating temperature | -40…70°C | -40…70°C |
| Electric Shock Protection Level | Class I according to IEC 60536 | Class I according to IEC 60536 |
| IP protection class | IP66 conforms to IEC 60529 IP67 IP69 IP69K |
IP66 conforms to IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
NEMA 13 NEMA 4X |
| IK protection class | IK06 conforms to IEC 50102 | IK06 conforms to IEC 50102 |
| Standards compliant | EN/IEC 60947-5-5 EN/IEC 60947-1 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-5-4 JIS C8201-5-1 UL 508 JIS C8201-1 |
JIS C8201-5-1 UL 508 EN/IEC 60947-5-5 EN/IEC 60947-1 CSA C22.2 No 14 EN/IEC 60947-5-1 EN/IEC 60947-5-4 JIS C8201-1 |
| certified product | UL CSA BV listed by LROS (Lloyds register of shipping) DNV GL |
UL listed by DNV CSA LROS (Lloyds register of shipping) GL BV |
| Anti-vibration | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| impact resistance | 30 gn (duration = 18 ms) for half-sine shocks according to IEC 60068-2-27 50 gn (duration = 11 ms) for half-sine shocks according to IEC 60068-2-27 |
30 gn (duration = 18 ms) for half-sine shocks according to IEC 60068-2-27 50 gn (duration = 11 ms) for half-sine shocks according to IEC 60068-2-27 |
| Anti-instantaneous pulse capability | 2 kV conforming to IEC 61000-4-4 | 2 kV conforming to IEC 61000-4-4 |
| Anti-electromagnetic field | 10 V/m conforming to IEC 61000-4-3 | 10 V/m conforming to IEC 61000-4-3 |
| Anti-static discharge | 6 kV in contact (metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
6 kV in contact (metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic radiation | Class B according to IEC 55011 | Class B according to IEC 55011 |
| packaging unit | ||
| Unit Type of Package 1 | PCE | PCE |
| Number of Units in Package 1 | 1 | 1 |
| Package 1 Height | 3.5cm | 8.8cm |
| Package 1 Width | 5.5cm | 3.4cm |
| Package 1 Length | 8.5cm | 5.4 cm |
| Package 1 Weight | 96.66g | 96g |
| Unit Type of Package 2 | S03 | S02 |
| Number of Units in Package 2 | 150 | 50 |
| Package 2 Height | 30cm | 15cm |
| Package 2 Width | 30cm | 30cm |
| Package 2 Length | 40cm | 40cm |
| Package 2 Weight | 14.913 kg | 5.089 kg |
| Unit Type of Package 3 | P06 | |
| Number of Units in Package 3 | 1200 | |
| Package 3 Height | 75cm | |
| Package 3 Width | 80cm | |
| Package 3 Length | 60cm | |
| Package 3 Weight | 127.304kg | |
| contract warranty | ||
| Warranty | 18 months | 18 months |

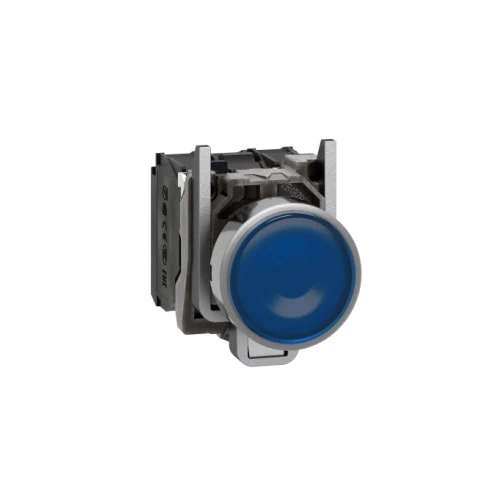

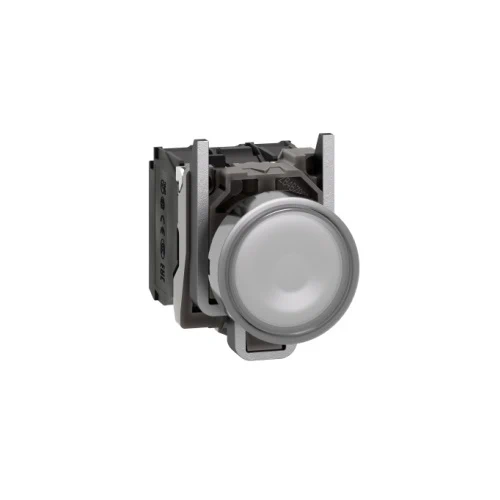

| Model Name | XB4BW36B5 | XB4BW31B5 |
| Product range | Harmony XB4 | Harmony XB4 |
| Product type | Illumination buttons | Illumination buttons |
| Short name of the product | XB4 | XB4 |
| Border material | Nickel-plated metal | Nickel-plated metal |
| Retaining ring material | Zamak | Zamak |
| Mounting diameter | 22.5 mm | 22.5 mm |
| Each item is sold separately | 1 | 1 |
| Manipulator type | standard | standard |
| Signal unit head shape | rotundity | rotundity |
| The type of operating head | Spring return | Spring return |
| Joystick shape | Blue Flat head | White flat head |
| Joystick additional information | With flat mirrors | With flat mirrors |
| Contact type | 1NO + 1NC | 1NO + 1NC |
| Contact action | Slow break | Slow break |
| Wiring capacity | Bolt fastening, < = 2 x 1.5 mm² with terminal blocks acc. to IEC 60947-1 | Bolt fastening, < = 2 x 1.5 mm² with terminal blocks acc. to IEC 60947-1 |
| Bolt fastening, 1 x 0.22…2 x 2.5 mm² without terminal blocks acc. to IEC 60947-1 | Bolt fastening, 1 x 0.22…2 x 2.5 mm² without terminal blocks acc. to IEC 60947-1 | |
| Light source | Universal LED | Universal LED |
| lamp holder | Built-in BA 9s base | Built-in BA 9s base |
| Rated supply voltage [us] | 24 V AC/DC in… on 50/60 Hz | 24 V AC/DC in… on 50/60 Hz |
| Supplemental information | ||
| height | 47 mm | 47 mm |
| width | 30 mm | 30 mm |
| depth | 101 mm | 57 mm |
| ISO n°1 terminals | (13-14) NO | (13-14) NO |
| (21-22)NC | (21-22)NC | |
| net weight | 0.097 kg | 0.097 kg |
| High pressure gasket impedance | 7000000 Pa in… Up to 55 °C, distance: 0.1 m | 7000000 Pa in… Up to 55 °C, distance: 0.1 m |
| Contact wire use | Standard contacts | Standard contacts |
| Force on | Yes Complies with IEC 60947-5-1 Annex K | Yes IEC 60947-5-1 Annex K |
| Operational Communication | 1.5 mm (NC to change electrical status), | 1.5 mm (NC to change electrical status), |
| 2.6 mm (NO to change electrical state), | 2.6 mm (NO to change electrical status), | |
| 4.3 mm (total stroke) | 4.3 mm (total stroke) | |
| Control | 3.5 N NC changes the electrical state by | 3.5 N NC changes the electrical state by |
| 3.8 N | 3.8 N | |
| Mechanical life | 10000000 times | 10000000 times |
| Tightening torque | 0.8… 1.2 N.m in accordance with IEC 60947-1 | 0.8… 1.2 N.m in accordance with IEC 60947-1 |
| Screw head shape | Crossover compatible with Philips no 1 screwdriver | Crossover compatible with Philips no 1 screwdriver |
| cross compatible with pozidriv no 1 screwdriver | cross compatible with pozidriv no 1 screwdriver | |
| slotted slot compatible with flat Ø 4 mm screwdriver | slotted slot compatible with flat Ø 4 mm screwdriver | |
| slotted slot compatible with flat Ø 5.5 mm screwdriver | slotted slot compatible with flat Ø 5.5 mm screwdriver | |
| Contact material | Silver alloy (silver/nickel) | Silver alloy (silver/nickel) |
| Short-circuit protection | 10 A fused tube type gG according to IEC 60947-5-1 | 10 A fused tube type gG according to IEC 60947-5-1 |
| Conventional heating current [Ith] | 10 A according to IEC 60947-5-1 | 10 A according to IEC 60947-5-1 |
| Rated insulation voltage [UI] | 600 V (pollution class 3) according to IEC 60947-1 | 600 V (pollution class 3) according to IEC 60947-1 |
| Rated impulse withstand voltage [UIMP] | 6 kV according to IEC 60947-1 | 6 kV according to IEC 60947-1 |
| Rated operating current [IE] | 3 A in… On 240 V, AC-15, A600 in accordance with IEC 60947-5-1 | 3 A in… On 240 V, AC-15, A600 in accordance with IEC 60947-5-1 |
| 6 A in… On 120 V, AC-15, A600 in accordance with IEC 60947-5-1 | 6 A in… On 120 V, AC-15, A600 in accordance with IEC 60947-5-1 | |
| 0.1 A in… On 600 V, DC-13, Q600 in accordance with IEC 60947-5-1 | 0.1 A in… On 600 V, DC-13, Q600 in accordance with IEC 60947-5-1 | |
| 0.27 A in… On 250 V, DC-13, Q600 in accordance with IEC 60947-5-1 | 0.27 A in… On 250 V, DC-13, Q600 in accordance with IEC 60947-5-1 | |
| 0.55 A in… On 125 V, DC-13, Q600 complies with IEC 60947-5-1 | 0.55 A in… On 125 V, DC-13, Q600 complies with IEC 60947-5-1 | |
| 1.2 A in… Up to 600 V, AC-15, A600 according to IEC 60947-5-1 | 1.2 A in… Up to 600 V, AC-15, A600 according to IEC 60947-5-1 | |
| Electrical life | 1000000 times, AC-15, 2 A in… Up to 230 V, operating rating <3600 cycles/hour, load factor: 0.5 per IEC 60947-5-1 Annex C | 1000000 times, AC-15, 2 A in… Up to 230 V, operating rating <3600 cycles/hour, load factor: 0.5 per IEC 60947-5-1 Annex C |
| 1000000 cycles, AC-15, 3 A in… Up to 120 V, operating rating <3600 cycles/hour, load factor: 0.5 per IEC 60947-5-1 Annex C | 1000000 cycles, AC-15, 3 A in… Up to 120 V, operating rating <3600 cycles/hour, load factor: 0.5 per IEC 60947-5-1 Annex C | |
| 1000000 cycles, AC-15, 4 A in… Up to 24 V, operating rating <3600 cycles/hour, load factor: 0.5 per IEC 60947-5-1 Annex C | 1000000 cycles, AC-15, 4 A in… Up to 24 V, operating rating <3600 cycles/hour, load factor: 0.5 per IEC 60947-5-1 Annex C | |
| 1000000 cycles, DC-13, 0.2 A at… Up to 110 V, operating rating <3600 cycles/hour, load factor: 0.5 per IEC 60947-5-1 Annex C | 1000000 cycles, DC-13, 0.2 A at… Up to 110 V, operating rating <3600 cycles/hour, load factor: 0.5 per IEC 60947-5-1 Annex C | |
| 1000000 cycles, DC-13, 0.5 A in… Up to 24 V, operating rating < 3600 vph, load factor: 0.5 according to IEC 60947-5-1 Annex C | 1000000 cycles, DC-13, 0.5 A in… Up to 24 V, operating rating < 3600 vph, load factor: 0.5 according to IEC 60947-5-1 Annex C | |
| Electrical reliability | Λ < 10exp(-6) in… Up to 5 V and 1 mA in a clean environment according to IEC 60947-5-4 | Λ < 10exp(-6) in… Up to 5 V and 1 mA in a clean environment according to IEC 60947-5-4 |
| λ < 10exp(-8) in… Clean environment at 17 V and 5 mA in accordance with IEC 60947-5-4 | λ < 10exp(-8) in… Clean environment at 17 V and 5 mA in accordance with IEC 60947-5-4 | |
| Signal type | Constant | Constant |
| Current consumption | 18 mA | 18 mA |
| Service life | 100,000 hours at 25°C, rated voltage | 100,000 hours at 25°C, rated voltage |
| Surge tolerant | 1 kV according to IEC 61000-4-5 | 1 kV according to IEC 61000-4-5 |
| Supply voltage range | 19.2… 30 V dc | 19.2… 30 V dc |
| 21.6… 26.4 V AC | 21.6… 26.4 V AC | |
| Introduction to the device | Products (non-parts) | Products (non-parts) |
| environment | ||
| Protective treatment | TH | TH |
| Storage ambient temperature | -40… 70 °C | -40… 70 °C |
| Operating temperature | -40… 70 °C | -40… 70 °C |
| Shock protection level | Class I complies with IEC 60536 | Class I complies with IEC 60536 |
| IP protection rating | IP66 in accordance with IEC 60529, | IP66 in accordance with IEC 60529, |
| IP67, | IP67, | |
| IP69, | IP69, | |
| IP69K | IP69K | |
| NEMA protection rating | NEMA 13 | NEMA 13 |
| NEMA 4X | NEMA 4X | |
| IK protection level | IK06 conforming to IEC 50102 | IK06 conforming to IEC 50102 |
| Meets standards | IEC 60947-5-5 | IEC 60947-5-5 |
| IEC 60947-1 | CSA C22.2 No 14 | |
| JIS C8201-5-1 | IEC 60947-5-4 | |
| IEC 60947-5-4 | IEC 60947-5-1 | |
| UL 508 | JIS C8201-5-1 | |
| CSA C22.2 No 14 | UL 508 | |
| IEC 60947-5-1 | IEC 60947-1 | |
| JIS C8201-1 | JIS C8201-1 | |
| Product Certification | UL | UL |
| DNV listed by CSA | DNV listed by CSA | |
| LROS (Lloyds register of shipping) | LROS (Lloyds register of shipping) | |
| BV | BV | |
| Vibration-resistant | 5 gn (f= 2… 500 Hz) conforming to IEC 60068-2-6 | 5 gn (f= 2… 500 Hz) conforming to IEC 60068-2-6 |
| Impact-resistant | 30 gn (duration = 18 ms) applicable Half-sinusoidal shock according to IEC 60068-2-27 | 30 gn (duration = 18 ms) applicable Half-sinusoidal shock according to IEC 60068-2-27 |
| 50 gn (duration = 11 ms) applicable Half-sinusoidal impact according to IEC 60068-2-27 | 50 gn (duration = 11 ms) applicable Half-sinusoidal impact according to IEC 60068-2-27 | |
| Resistance to transient pulses | 2 kV according to IEC 61000-4-4 | 2 kV according to IEC 61000-4-4 |
| Electromagnetic domain | 10 V/m according to IEC 61000-4-3 | 10 V/m according to IEC 61000-4-3 |
| Antistatic discharge | 6 kV contact (metal parts) according to IEC 61000-4-2 | 6 kV contact (metal parts) according to IEC 61000-4-2 |
| 8 kV free air (in insulated parts) according to IEC 61000-4-2 | 8 kV free air (in insulated parts) according to IEC 61000-4-2 | |
| electromagnetic radiation | Class B complies with IEC 55011 | Class B complies with IEC 55011 |
| Packing Units | ||
| Package 1: Packing unit type | PCE | PCE |
| Package 1: Packing unit quantity | 1 | 1 |
| Package 1: Height | 3.5 cm | 3.500 cm |
| Package 1: Width | 5.5 cm | 5.500 cm |
| Package 1: Length | 8.5 cm | 8.500 cm |
| Package 1: Gross weight | 96.6 g | 96.300 g |
| Package 2: Packing unit type | S03 | S03 |
| Package 2: Packing unit quantity | 100 | 100 |
| Package 2: Height | 30.0 cm | 30.000 cm |
| Package 2: Width | 30.0 cm | 30.000 cm |
| Package 2: Length | 40.0 cm | 40.000 cm |
| Package 2: Gross weight | 10.086 kg | 10.079 kg |
| Package 3: Packing unit type | P06 | P06 |
| Package 3: Packing unit quantity | 800 | 800 |
| Package 3: Height | 75.0 cm | 75.000 cm |
| Package 3: Width | 80.0 cm | 60.000 cm |
| Package 3: Length | 60.0 cm | 80.000 cm |
| Package 3: Gross weight | 88.688 kg | 88.632 kg |
| Contract Warranty | ||
| Warranty | 18 months | 18 months |
