$ 805.00

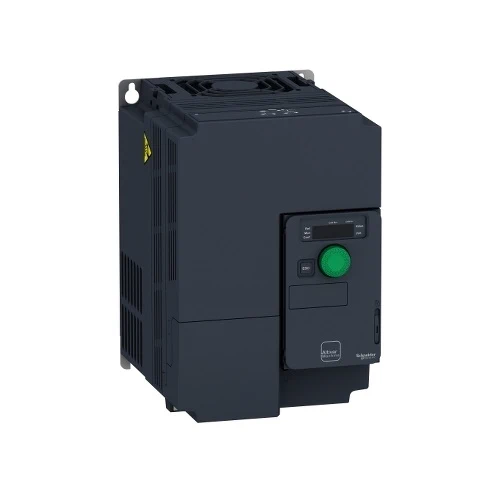

| Model Name | ATV320U55N4C |
| Product range | ATV320 |
| Product type | Frequency converters |
| Fields of application | Complex machines |
| variable | Standard version |
| Drive format | Compact |
| Installation type | Wall-mounted |
| Communication port protocol | Modbus serial |
| CANopen | |
| tab | Communication Module, CANopen |
| Communication Module, EtherCAT | |
| Communication Module, Profibus DP V1 | |
| Communication Module, Profinet | |
| Communication Module, Ethernet Powerlink | |
| Communication Module, Ethernet/IP | |
| Communication Module, DeviceNet | |
| Rated supply voltage [us] | 380…500 V – 15…10 % |
| Rated output current | 14.3 A |
| Motor power (kW) | 5.5 kW for heavy loads |
| EMC filters | Integrated |
| IP rating | IP20 |
| Supplemental information | |
| The number of discrete inputs | 7 |
| Digital input type | STO safe torque interrupt, 24 V dc, Impedance: 1.5 kOhm |
| DI1… DI6 logic input, 24 V dc (30 V) | |
| DI5 programmable as pulse input: 0… 30 kHz, 24 V dc (30 V) | |
| Discrete input logic | Positive Logic (Source) |
| Negative Logic (Leak) | |
| The number of discrete outputs | 3 |
| Output type | Open Current Collector DQ+ 0… 1 kHz 30 V dc 100 mA |
| open current collector DQ- 0… 1 kHz 30 V DC 100 mA | |
| The number of analog inputs | 3 |
| Analog input type | AI1 voltage: 0…10 V dc, Impedance: 30 kOhm, resolution 10 bits |
| AI2 Bipolar differential voltage: +/- 10 V dc, Impedance: 30 kOhm, resolution 10 bits | |
| AI3 Current: 0…20 mA (or 4-20 mA, x-20 mA, 20-x mA or other configuration modes), Impedance: 250 Ω, resolution 10 bits | |
| Number of analog outputs | 1 |
| Analog output model | Software – Configurable current AQ1: 0…20 mA Impedance 800 Ω, resolution 10 bitsSoftware |
| – Configurable voltage AQ1: 0…10 V DC Impedance 470 Ω, resolution 10 bits | |
| Relay output type | Configurable Relay Logic R1A 1 NO Electrical Life 100000 cycles |
| Configurable Relay Logic R1B 1NC Electrical Life 100000 cycles | |
| Configurable Relay Logic R1C | |
| Configurable Relay Logic R2A 1 NO Electrical Life 100000 cycles | |
| Configurable Relay Logic R2C | |
| Maximum switching current | Relay outputs R1A, R1B, R1C in… On the resistive (load) amount, cos phi = 1: 3 A in… On 250 V AC |
| relay output R1A, R1B, R1C in… On the resistive (load) amount, cos phi = 1: 3 A in… On 30 V DC | |
| relay outputs R1A, R1B, R1C, R2A, R2C in… On the inductive load, cos phi = 0.4 L/R = 7 ms: 2 A in… On 250 V AC | |
| relay outputs R1A, R1B, R1C, R2A, R2C in… On the inductive load, cos phi = 0.4 L/R = 7 ms: 2 A in… On the 30 V DC | |
| relay output R2A, R2C in… On the resistive (load) amount, cos phi = 1: 5 A in… On 250 V AC | |
| relay output R2A, R2C in… On the resistive (load) amount, cos phi = 1: 5 A in… on 30 V DC | |
| Minimum switching current [Imin] | Relay outputs R1A, R1B, R1C, R2A, R2C: 5 mA in… on 24 V DC |
| Access method | Slave (station) CANopen |
| 4 quadrant operation possible | TRUE |
| Asynchronous motor control profile | Voltage/Frequency Ratio, 5 Point |
| Sensorless Flink Vector Control Standard | |
| Voltage/Frequency Ratio | |
| Sensorless Flink Appropriate Control – Energy Saving | |
| Voltage/Frequency Ratio, 2 Points | |
| Synchronous motor control configuration mode | Sensorless vector control |
| Maximum output frequency | 0.599 kHz |
| Acceleration and deceleration tilt | Acceleration/deceleration ramp adaptation |
| Acceleration/deceleration automatic stop with DC injection | |
| Motor slip compensation | Automatic Adjustable 0 |
| … 300 % | |
| unavailable voltage/frequency ratio (2 or 5 points) | |
| Switching frequency | 2…16 kHz Adjustable |
| 4…16 kHz Yes | |
| Rated switching frequency | 4 kHz |
| Braking to stop | DC injection is used |
| Brake chopper integrated | TRUE |
| Line current | 20.7 A in… Up to 380 V (heavy load) |
| 14.5 A in… Up to 500 V (Heavy Load) | |
| Maximum input current | 20.7 A |
| Maximum output voltage | 500 V |
| Apparent power | 12.6 kVA in… Up to 500 V (Heavy Load) |
| Grid frequency | 50…60 Hz |
| Relative symmetric network frequency tolerance | 0.05 |
| Expected line Isc | 22 kA |
| Base load current at high overload | 14.3 A |
| Power consumption W | Fan: 195.0 W in… Up to 380 V, switching frequency 4 kHz |
| With safety function Safely Limited Speed (SLS) | TRUE |
| With safety function Safe brake management (SBC/SBT) | FALSE |
| With safety function Safe Operating Stop (SOS) | FALSE |
| With safety function Safe Position (SP) | FALSE |
| With safety function Safe programmable logic | FALSE |
| With safety function Safe Speed Monitor (SSM) | FALSE |
| With safety function Safe Stop 1 (SS1) | TRUE |
| With sft fct Safe Stop 2 (SS2) | FALSE |
| With safety function Safe torque off (STO) | TRUE |
| With safety function Safely Limited Position (SLP) | FALSE |
| With safety function Safe Direction (SDI) | FALSE |
| Type of protection | Input phase failure: Overcurrent between drive |
| output phase and ground: Drive | |
| overheat protection: Short circuit between each phase of the drive | |
| motor: Drive | |
| thermal protection: Drive | |
| width | 150 mm |
| height | 232.0 mm |
| depth | 178.0 mm |
| net weight | 3.5 kg |
| Instantaneous overtorque | 170… 200 % nominal motor torque |
| environment | |
| Operating position | +/- 10° vertically |
| Product Certification | CE |
| ATEX | |
| NOM | |
| GOST | |
| EAC | |
| RCM | |
| KC | |
| logotype | CE |
| ATEX | |
| UL | |
| CSA | |
| EAC | |
| RCM | |
| Meets standards | IEC 61800-5-1 |
| Electromagnetic compatibility | Electrostatic Discharge Immunity Level 3 conforming to IEC 61000-4-2 |
| RF Electromagnetic Field Radiated Immunity Test Level 3 conforming to IEC 61000-4-3 | |
| Resisting Fast Transients Level 4 conforming to IEC 61000-4-4 | |
| 1.2/50 and 8/20 μs composite wave (test) Level 3 conforming to IEC 61000-4-5 | |
| Resistance to conduction fluctuations caused by RF fields Level 3 conforming to IEC 61000-4-6 | |
| Voltage drop and break suppression test conforming to IEC 61000-4-11 | |
| Environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 |
| Class 3S2 according to IEC 60721-3-3 | |
| Maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| Maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13…200 Hz |
| Maximum deflection under vibratory load (during operation) | 1.5 mm at 2…13 Hz |
| Permitted relative humidity (during operation) | Class 3K5 according to EN 60721-3 |
| Cooling air capacity | 60 m3/h |
| Overvoltage category | III |
| Regulation loops | Adjustable PID regulator |
| Speed accuracy | +/- 10 % nominal slip 0.2 Tn to Tn |
| Pollution level | 2 |
| Ambient air transport temperature | -25… 70 °C |
| Ambient temperature | -10… 50 °C without degrading50 |
| … 60 °C Yes | |
| Storage ambient temperature | -25… 70 °C |
| Packing Units | |
| Package 1: Packing unit type | PCE |
| Package 1: Packing unit quantity | 1 |
| Package 1: Height | 19.500 cm |
| Package 1: Width | 22.500 cm |
| Package 1: Length | 33.000 cm |
| Package 1: Gross weight | 4.696 kg |
| Package 2: Packing unit type | P06 |
| Package 2: Packing unit quantity | 10 |
| Package 2: Height | 75.000 cm |
| Package 2: Width | 60.000 cm |
| Package 2: Length | 80.000 cm |
| Package 2: Gross weight | 57.500 kg |
| Contract Warranty | |
| Warranty | 18 months |
