Name: Festo NPQE-D-R38-Q8-P5 Push-in Fitting - INOSAKI
SKU: Festo-8112924
Price: 7.96 USD
Availability: InStock

Technical Overview

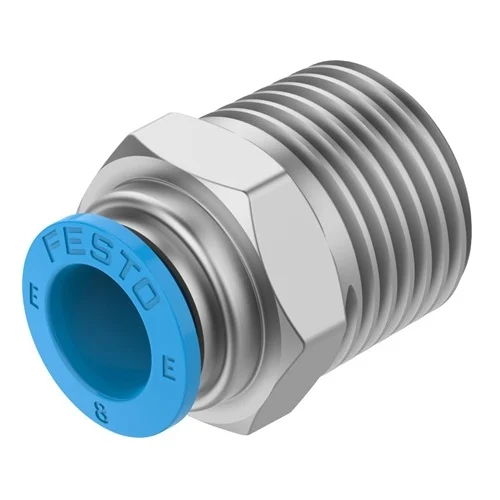

Straight R3/8 male to 8mm tubing push-in fitting. Nickel-plated brass with pre-applied PTFE thread sealant. Operating range: -0.95 to 8 bar; -5°C to 60°C.

Key Features

Robust nickel-plated brass housing ensures durable mechanical performance
Pre-applied PTFE thread coating on the R3/8 male connection ensures instant, leak-free installation without extra thread-seal tape
User-friendly push-pull principle for fast, tool-free connection and disconnection of 8 mm O.D. pneumatic tubing
Capable of operating under low vacuum conditions down to -0.95 bar and positive pressures up to 8 bar
Cleanroom suitability certified to ISO 14644-1 Class 4 for sensitive automation environments
Corrosion resistance class CRC 1 provides reliable defense against low-stress environmental corrosion
High-performance NBR tubing seals and POM releasing ring for smooth operation

Technical Specification Matrix

Parameter	Value
Nominal Size	6 mm
Type of Seal on Screwed Plug	Coating (PTFE)
Mounting Position	Any / Optional
Design	Straight design, push-pull principle
Size of Pack	5
Operating Pressure Complete Temperature Range	-0.095 MPa to 0.8 MPa (-0.95 bar to 8 bar)
Operating Medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on Operating and Pilot Medium	Lubricated operation possible
Corrosion Resistance Class CRC	1 - Low corrosion stress
LABS (PWIS) Conformity	VDMA24364 zone III
Cleanroom Class	Class 4 according to ISO 14644-1
Ambient Temperature Range	-5 °C to 60 °C
Type of Mounting	External hexagon (17 mm), Internal hexagon (6 mm)
Pneumatic Connection 1	Male thread R3/8
Pneumatic Connection 2	For tubing outside diameter of 8 mm
Colour of Release Ring	Blue
Material Housing	Brass, nickel-plated
Material Release Ring	POM
Material Tubing Seal	NBR
Material Tubing Clamp Component	Stainless steel
Physical Weight (kg)	0.02
Dimensions L x W x H (cm)	2.37 x 1.96 x 1.96

Industrial Applications

1. Semiconductor Wafer Handling and Cleanroom Assembly

High-precision semiconductor packaging and wafer handling lines require pneumatic components that do not contaminate the sterile air environment.

Problem Solved

Standard fittings can shed particles or outgas, contaminating semiconductor wafers. This fitting is certified to ISO 14644-1 Class 4 cleanroom suitability and has VDMA24364 zone III LABS/PWIS conformity, ensuring it introduces zero paint-wetting impairment substances and meets strict cleanroom particulate levels.

Cleanroom Class 4VDMA24364 Zone IIIPneumatic FittingISO 14644-1Nickel-Plated Brass

2. Automated Vacuum Pick-and-Place Systems

In electronic component assembly, vacuum suction cups are used to pick up and place small components. This requires fittings that can hold a consistent negative pressure.

Problem Solved

The straight push-pull fitting reliably holds vacuum levels down to -0.095 MPa (-0.95 bar). The high-durability NBR seals and stainless steel tubing clamp prevent vacuum leaks, maintaining stable suction forces during high-speed packaging runs.

Vacuum Pressure-0.95 bar VacuumNBR Tubing SealPush-Pull PrincipleStainless Steel Clamp

3. Factory Automation Pneumatic Manifold Connections

Distribution of compressed air within automated machinery control panels to pilot solenoid valves.

Problem Solved

Traditional threaded fittings require messy PTFE tape application, which can cause internal contamination if tape shreds enter the pneumatic line. The pre-applied PTFE coating on the R3/8 male thread allows direct, safe, and speedy mounting with external and internal hex tools in compact manifold enclosures, operating safely up to 8 bar.

Male Thread R3/8PTFE Thread Coating8 bar PressureHexagon MountingBrass Nickel-Plated
