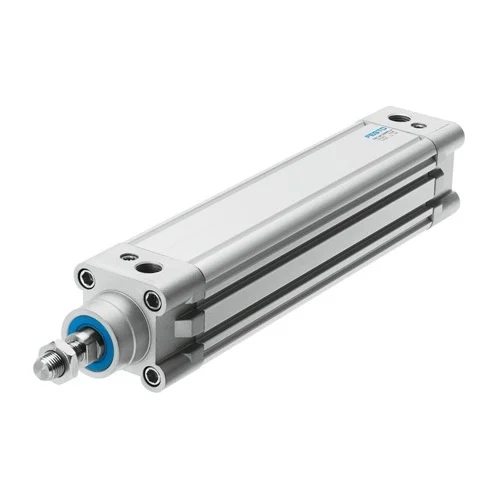

32 mm ISO 15552 double-acting cylinder with adjustable end cushioning, G1/8 port, ATEX/UKEX variants, and anti-rotation guidance.
ISO 15552 pneumatic cylinder with 32 mm bore, 40 mm stroke, double-acting operation, adjustable cushioning at both ends, and G1/8 air connection. Manufacturer data confirms a wide operating pressure range, ATEX/UKEX suitability variants, proximity-switch sensing capability, and a square piston rod with anti-rotation guidance. This exact item is identified by Festo as part number 163302 and by distributor listing as DNC-32-35-PPV-A-S2-67K8.
| Parameter | Value |
|---|---|
| Part number | 163302 |
| Series / model | DNC-32-35-PPV-A-S2-67K8 |
| Product type | ISO cylinder |
| Standard | ISO 15552 |
| Piston diameter | 32 mm |
| Stroke | 40 mm |
| Mode of operation | Double-acting |
| Cushioning | Elastic cushioning rings/pads at both ends; pneumatic cushioning, adjustable at both ends |
| Mounting position | Any |
| Position sensing | Via proximity switch |
| Operating pressure | 0.02 MPa to 1.2 MPa (0.2 bar to 12 bar) |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -40 °C to 120 °C |
| Impact energy in end positions | 0.1 J |
| Max. torque for protection against rotation | 0.8 Nm |
| Theoretical force at 6 bar, retracting | 415 N |
| Theoretical force at 6 bar, advancing | 415 N to 483 N |
| Pneumatic connection | G1/8 |
| ATEX category gas | II 2G |
| ATEX category for dust | II 2D |
| Type of ignition protection for gas | Ex h IIC T4 Gb |
| Type of ignition protection for dust | Ex h IIIC T120°C Db |
| Corrosion resistance class | CRC 2 - Moderate corrosion stress; CRC 3 - High corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L; VDMA24364 Zone III |
| Cover material | Die-cast aluminum, coated |
| Cylinder barrel material | Wrought aluminum alloy, smooth-anodized |
The 32 mm bore and double-acting behavior provide a compact linear actuator for short-stroke transfer motions where repeatable extension and retraction are needed.
Replaces unstable manual or spring-return movement with repeatable pneumatic actuation and end cushioning.
The ATEX/UKEX-related explosion-protection variants and compressed-air operation make it suitable for linear actuation in classified industrial zones.
Provides motion control where electrical actuators may be less suitable due to explosive atmosphere requirements.
The square piston rod and anti-rotation torque rating support guided linear motion where rod twist would compromise alignment or clamping accuracy.
Prevents torsional drift during force application, preserving alignment in jigs, clamps, and stops.
