Festo 5/3-way NC electrically actuated solenoid valve featuring a 24mm width, 1650 L/min flow rate, QS-12 push-in connections, 24V DC coil, and IP65 rating.

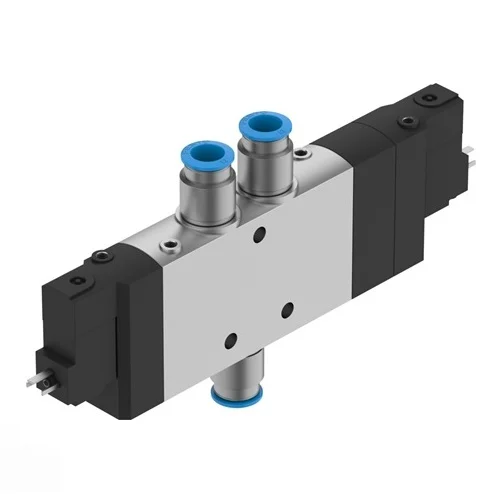

The Festo CPE24-M1H-5/3G-QS-12 (part number 170277) is a 5/3-way mid-position normally closed (NC) electrically actuated pneumatic solenoid valve. Part of the Compact Performance (CPE) series, it features a 24mm width and delivers a high nominal flow rate of 1,650 L/min. It comes equipped with QS-12 (12mm) push-in pneumatic connections, internal pilot air supply, and a mechanical spring reset. Housed in a durable die-cast aluminum body, it operates on a 24 V DC control voltage and offers an IP65 protection rating, making it ideal for robust industrial automation and directional control applications.
| Parameter | Value |
|---|---|
| Valve Function | 5/3-way, mid-position normally closed (NC) |
| Actuation Type | Electric, pilot actuated |
| Operating Voltage | 24 V DC |
| Power Consumption | 1.5 W |
| Operating Pressure | 2.5 to 10 bar (0.25 to 1 MPa) |
| Standard Nominal Flow Rate | 1,650 L/min |
| Pneumatic Connections | QS-12 (12mm push-in) |
| Housing Material | Die-cast Aluminum |
| Protection Class | IP65 |
| Width | 24 mm |
| Physical Weight (kg) | 0.43 |
| Dimensions L x W x H (cm) | 0 x 2.4 x 0 |
Used to precisely control double-acting pneumatic cylinders where the actuator must hold its position during mid-stroke or power loss, relying on the 5/3 normally closed center function.
Prevents unintended cylinder movement during power failures or emergency stops, ensuring safety and precision in material handling or clamping systems.
Utilized in industrial blow-off or cleaning stations where high-volume air blasts are required, leveraging the robust 1,650 L/min nominal flow rate.
Overcomes the limitation of restrictive pneumatic circuits by delivering high flow rates through a compact 24mm valve body, reducing manifold footprint.
Deployed in moderate contamination zones, such as packaging or assembly lines where dust and moisture are present, protected by its IP65 die-cast aluminum housing.
Provides reliable solenoid switching and pilot air control without degrading under industrial dust or water spray, maximizing uptime.
