1. Automotive Paint Booth Actuator Coupling

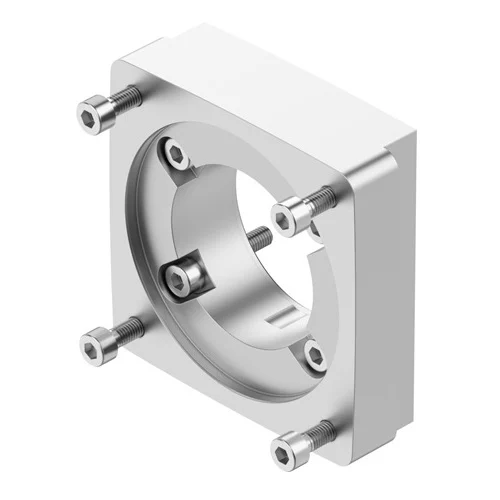

In automated automotive manufacturing, robotic spray painting gantries utilize linear toothed belt axes (such as Festo ELGR) to precisely move paint nozzles over vehicle chassis. The Festo EAMF-A-48A-80P motor flange is used to axially couple an 80mm servo motor to the 48mm interface of the linear actuator. It reliably transmits drive energy while enduring the high humidity levels present in wash and spray zones.
Problem SolvedEliminates the risk of paint defects (like fisheyes or craters) by ensuring that no silicone or paint-wetting impairment substances are released during mechanical operation, a critical requirement in automotive paint shops.
LABS (PWIS) conformity VDMA24364-B2-LRelative air humidity 0 - 95%Interface code motor in 80PInterface code clutch housing 48A
2. High-Dynamic Pick-and-Place Cartesian Robot
High-speed packaging and palletizing lines rely on multi-axis Cartesian systems using EGC-TB recirculating ball bearing toothed belt axes. Engineers integrate the EAMF-A-48A-80P axial kit to secure the drive motors on the Y and Z axes. The kit forms a secure mechanical connection using a friction-locked coupling while handling significant mechanical vibrations.
Problem SolvedPrevents excessive moving mass on the gantry system, which minimizes mechanical stress on the primary X-axis and improves cycle speeds, while offering complete design flexibility for spatial constraints.
Product weight 324 gMounting position optionalAmbient temperature -10 °C ... 60 °CToothed belt axes
3. Automated Optical Inspection (AOI) Camera Positioning
In electronics assembly, AOI stations perform quality checks on printed circuit boards (PCBs) by scanning them with high-resolution cameras. The EAMF-A-48A-80P acts as the rigid, zero-play bridge between precision stepper motors (80P interface) and the linear sliding stage (48A interface). It must survive fluctuating factory temperatures caused by nearby reflow soldering ovens.
Problem SolvedSolves the mechanical challenge of securely adapting mismatched motor and actuator interfaces (80mm to 48mm) while strictly adhering to global hazardous materials directives essential for certified electronics manufacturing plants.
Note on materials RoHS-compliantInterface code motor in 80PInterface code clutch housing 48AStorage temperature -25 °C ... 60 °C
