Name: DSBF-C-32-50-PPVA-N3-R Festo ISO Cylinder - INOSAKI
SKU: Festo-1773754
Price: 149.00 USD
Availability: InStock

Technical Overview

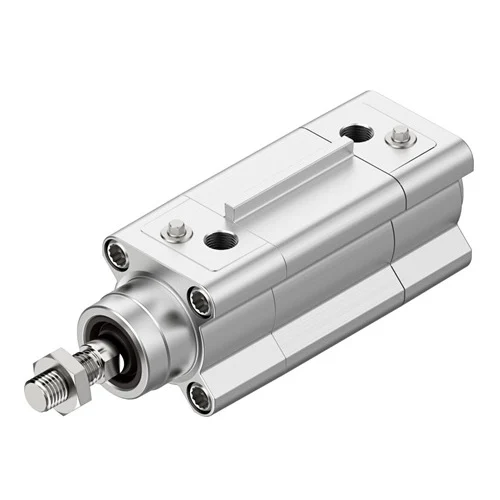

The DSBF-C-32-50-PPVA-N3-R is a double-acting standards-based pneumatic cylinder conforming to ISO 15552. This profile barrel cylinder features a 32 mm piston diameter and 50 mm stroke, integrated with adjustable pneumatic cushioning at both ends (PPV). It is engineered for high-stress environments with a CRC 3 corrosion resistance class and is certified for Cleanroom Class 5. Its construction utilizes high-alloy stainless steel for the piston rod and coated die-cast aluminum for the cover, ensuring durability and reliability in automated systems.

Key Features

Conforms to standard ISO 15552
Double-acting mode of operation
Pneumatic cushioning, adjustable at both ends
Position detection via proximity switch
High corrosion resistance class CRC 3
Cleanroom suitability ISO Class 5
High-alloy stainless steel piston rod
RoHS-compliant materials

Technical Specification Matrix

Parameter	Value
Stroke	50 mm
Piston diameter	32 mm
Piston rod thread	M10x1.25
Cushioning	Pneumatic cushioning, adjustable at both ends
Mounting position	optional
Conforms to standard	ISO 15552
Piston-rod end	Male thread
Design	Piston Piston rod Profile barrel
Position detection	Via proximity switch
Symbol	00991235
Operating pressure	0.06 MPa ... 1.2 MPa
Operating pressure (bar)	0.6 bar ... 12 bar
Mode of operation	Double-acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	3 - high corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L
Cleanroom suitability	measured according to ISO 14644-14 Class 5 according to ISO 14644-1
Ambient temperature	-20 °C ... 80 °C
Impact energy in end positions	0.4 J
Cushioning length	17 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke	415 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	483 N
Moving mass	153 g
Moving mass for 0 mm stroke	108 g
Additional moving mass per 10 mm stroke	9 g
Product weight	612 g
Basic weight for 0 mm stroke	472 g
Additional weight per 10 mm stroke	28 g
Type of mounting	Via female thread With accessories
Pneumatic connection	G1/8
Note on materials	RoHS-compliant
Material cover	Coated die-cast aluminium
Material piston seal	TPE-U(PU)
Material piston	Wrought aluminium alloy
Material piston rod	High-alloy stainless steel
Material piston rod wiper	TPE-U(PU)
Buffer seal material	TPE-U(PU)
Material of cushioning boss	POM
Material cylinder barrel	Anodised wrought aluminium alloy
Material nut	High-alloy stainless steel
Material bearing	POM
Material collar screws	Galvanised steel

Industrial Applications

1. Hygienic Product Rejection System in Beverage Bottling

Utilized in the 'splash zone' of a beverage filling line to rapidly divert defective bottles or cans from the main conveyor into a reject bin. The cylinder acts as a pneumatic kicker, extending its 50mm stroke to push items off the line upon receiving a signal from a vision inspection system.

Problem Solved

Standard cylinders trap bacteria in sensor slots and cooling fins, creating contamination risks during washdown. This 'Clean Design' (DSBF-C) unit eliminates dirt traps and withstands aggressive chemical cleaning (CIP) without corroding, ensuring food safety compliance.

Clean DesignCRC 3 (High Corrosion Stress)Splash ZoneWashdown CapableISO 15552

2. ISO Class 5 Cleanroom Pharmaceutical Blister Packaging

Integrated into a sterile packaging machine to actuate the vertical heat-sealing tool or push finished blister packs of medication into a cartoning tray. The cylinder operates within the sterile barrier, performing precise, repetitive 50mm linear movements to index packaging materials.

Problem Solved

Prevents particulate contamination in sterile environments. Standard cylinders emit particles from seals and lubrication, violating ISO 14644-1. This cylinder is certified for ISO Class 5 cleanrooms, protecting sensitive pharmaceutical products from contamination during the packaging process.

ISO 14644-1 Class 5Cleanroom SuitabilityPPVA CushioningParticle Emission ControlPharmaceutical Packaging

3. Corrosive Chemical Hopper Flap Actuation

Installed outdoors or in a chemical processing plant to actuate the flow-control gates (flaps) on a fertilizer or salt distribution hopper. The cylinder extends and retracts to open or close the chute, regulating the dispensing of corrosive granular materials.

Problem Solved

Solves the issue of rapid equipment failure due to rust and seizure in harsh, corrosive environments. The CRC 3 rating (High Corrosion Stress) and high-alloy stainless steel piston rod allow the cylinder to survive exposure to fertilizers, salts, and outdoor weather (-20°C to 80°C) where standard steel cylinders would fail.

CRC 3 Corrosion ResistanceOutdoor ApplicationStainless Steel Piston RodHigh-Alloy MaterialChemical Resistance
