Name: DGTZ-GF-10-30-P-A Festo Twin cylinder - INOSAKI
SKU: Festo-8100556
Price: 119.86 USD
Availability: InStock

Technical Overview

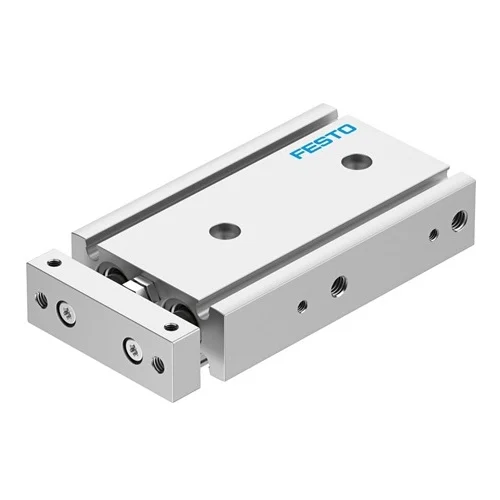

The Festo DGTZ-GF-10-30-P-A is a high-performance double-acting twin cylinder with an integrated plain-bearing guide. Designed for pneumatic automation, it features a 10 mm piston diameter and 30 mm stroke, complemented by a 10 mm adjustable end-position range. This guided drive utilizes elastic cushioning at both ends to reduce impact energy and supports position detection through proximity switches. It is built with an anodised wrought aluminium alloy housing and high-alloy stainless steel piston rods, ensuring durability while maintaining a low corrosion resistance class (CRC 1). The unit is compliant with RoHS standards and is suitable for Class 5 cleanroom environments according to ISO 14644-1.

Key Features

Integrated plain-bearing guide for high guidance precision
Double-acting pneumatic operation
Elastic cushioning rings/plates at both ends
Position detection via proximity sensors
Suitable for cleanroom environments (ISO Class 5)
RoHS-compliant material construction

Technical Specification Matrix

Parameter	Value
Stroke	30 mm
Adjustable end-position range/length	10 mm
Piston diameter	10 mm
Operating mode, drive unit	Yoke
Cushioning	Elastic cushioning rings/plates at both ends
Mounting position	optional
Guide	Plain-bearing guide
Design	Guidance
Position detection	Via proximity switch
Symbol	00991249
Operating pressure MPa	0.15 MPa ... 0.8 MPa
Operating pressure bar	1.5 bar ... 8 bar
Mode of operation	Double-acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364 zone III
Cleanroom suitability	Class 5 according to ISO 14644-1
Ambient temperature	-10 °C ... 80 °C
Impact energy in end positions	0.08 J
Max. effective load dependent upon stroke at defined distance xs	4.3 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke	60 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	94 N
Moving mass	175 g
Product weight	175 g
Pneumatic connection	M5
Note on materials	RoHS-compliant
Material cover	Wrought aluminium alloy
Material seals	HNBR
Material housing	Anodised wrought aluminium alloy
Material piston rod	High-alloy stainless steel

Industrial Applications

1. Cleanroom PCB Handling and Positioning

Utilizing the guided drive unit to precisely align and hold printed circuit boards during automated optical inspection in semiconductor manufacturing.

Problem Solved

Prevents particulate contamination during delicate handling operations by leveraging its ISO 14644-1 Class 5 cleanroom suitability, while providing highly precise 30mm stroke positioning with its plain-bearing guide.

ISO Class 5 CleanroomPlain-bearing guide30mm StrokeProximity switch position detection

2. Lightweight Component Sorting and Ejection

Acting as an automated pusher mechanism in a lightweight packaging conveyor line to swiftly divert small manufactured parts into designated sorting bins.

Problem Solved

Solves the need for rapid, low-impact sorting of light parts (up to 4.3 N payload) without damaging the products, utilizing its double-acting mode, 94 N advance force at 6 bar, and integrated elastic cushioning plates at both ends.

Double-actingElastic cushioning rings94 N advance force1.5 bar to 8 bar operating pressure

3. Medical Tube Capping Automation

Integrated into an automated medical device assembly station to mechanically press caps onto diagnostic vials.

Problem Solved

Delivers reliable and repetitive linear actuation in a compact footprint, utilizing the adjustable end-position range of 10 mm to safely accommodate slight variances in vial heights without crushing the glass tubes.

Adjustable end-position rangeHigh-alloy stainless steel piston rod10mm Piston diameterRoHS-compliant
