Mini slide with 30mm stroke and recirculating ball bearing guide. Features external hydraulic cushioning and 60N theoretical force at 0.6 MPa.

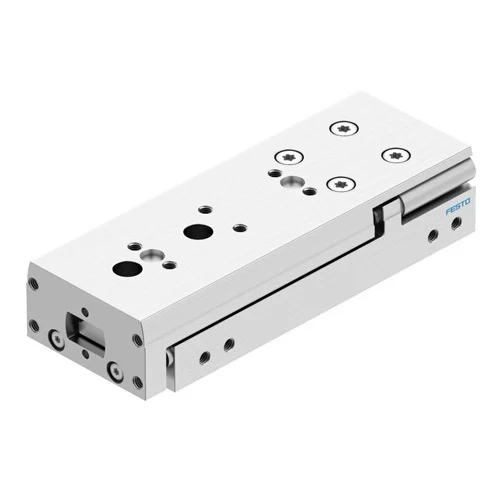

The Festo DGST-8-30-Y12A is a high-precision double-acting pneumatic mini slide designed for automation applications requiring guided movement. It features a yoke-style drive unit with a recirculating ball bearing guide for exceptional accuracy and a repetition accuracy of <= 0.02 mm. This model is equipped with external hydraulic cushioning and is prepared for position detection via proximity switches. Its robust construction utilizes wrought aluminium alloy for the housing and high-alloy stainless steel for the piston rod, making it suitable for cleanroom environments up to Class 6.
| Parameter | Value |
|---|---|
| Stroke | 30 mm |
| Adjustable end position range/length front | 17.6 mm |
| Adjustable end position range/length rear | 15.7 mm |
| Piston diameter | 8 mm |
| Operating mode, drive unit | Yoke |
| Cushioning | External hydraulic cushioning |
| Mounting position | optional |
| Guide | Recirculating ball bearing guide |
| Design | Yoke Piston rod Slide |
| Position detection | Via proximity switch |
| Symbol | 00991249 |
| Operating pressure MPa | 0.15 MPa ... 0.8 MPa |
| Operating pressure bar | 1.5 bar ... 8 bar |
| Operating pressure psi | 21.75 psi ... 116 psi |
| Max. speed | 0.8 m/s |
| Repetition accuracy | <= 0.02 mm |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | CRC 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability | Measured according to ISO 14644-14 Class 6 according to ISO 14644-1 |
| Ambient temperature | -10 °C ... 60 °C |
| Impact energy in end positions | 0.4 J |
| Cushioning length | 4 mm |
| Max. force Fy | 300 N |
| Max. force Fz | 300 N |
| Max. moment Mx | 2.8 Nm |
| Max. moment My | 2 Nm |
| Max. moment Mz | 2 Nm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 45 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 60 N |
| Moving mass | 99.8 g |
| Product weight | 191.6 g |
| Type of mounting | With through-hole |
| Pneumatic connection | M5 |
| Note on materials | RoHS-compliant |
| Material cover | Wrought aluminium alloy |
| Material seals | HNBR |
| Material guide | POM TPE-E High-alloy steel |
| Material housing | Wrought aluminium alloy |
| Material piston rod | High-alloy stainless steel |
