1. Lithium-Ion Battery Cell Pick-and-Place Positioning

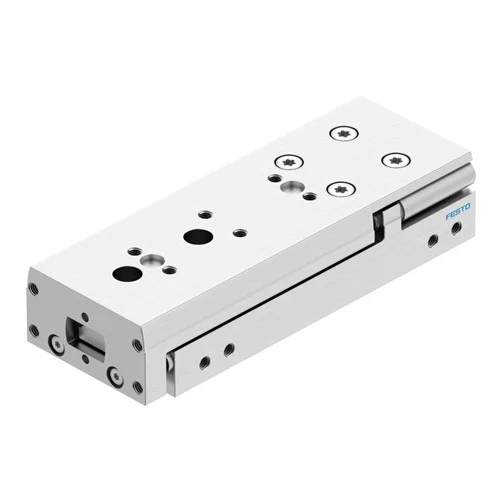

In automated battery manufacturing, the DGST-6-20-PA acts as a precision Z-axis actuator for placing sensitive battery electrodes. Its design is compliant for battery production to reduce the risk of heavy metal contamination [1.2], while its Class 6 cleanroom rating ensures particle-free operation during the 20 mm stroke.
Problem SolvedEliminates contamination risks that cause internal short circuits in battery cells, while providing exact positioning with minimal payload mass to maximize robotic arm speed.
Cleanroom suitability Class 6 according to ISO 14644-1Repetition accuracy <= 0.3 mmRecirculating ball bearing guideMoving mass 62 gStroke 20 mm
2. High-Speed Microchip Testing and Sorting
Utilized as a vertical pushing mechanism in semiconductor testing stations and precision tooling. The slide extends to press microchips into testing sockets at high speeds, relying on its internal elastic cushioning to absorb impact and its single-component yoke and slide design for extreme torsional rigidity.
Problem SolvedPrevents mechanical damage and micro-fractures in delicate integrated circuits during rapid testing cycles by utilizing built-in elastic cushioning and preventing lateral deflection.
Max. speed 0.5 m/sElastic cushioning rings/plates at both endsDesign Yoke Piston rod SlideMax. force Fz 220 NMax. force Fy 220 N
3. Automated Medical Syringe Plunger Insertion
Deployed in medical assembly systems to insert rubber plungers into plastic syringe barrels. Regulated to 0.6 MPa, the cylinder delivers a consistent 34 N advance force, seating the components smoothly without exceeding the yield strength of the medical-grade plastics.
Problem SolvedProvides a highly repeatable, controlled low-force insertion stroke to replace inconsistent manual assembly, eliminating the risk of barrel deformation or component cracking in delicate medical devices.
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 34 NOperating pressure 0.15 MPa ... 0.8 MPaRoHS-compliantMode of operation Double-actingMaterial guide POM TPE-E High-alloy steel
