$ 152.46 – $ 178.20

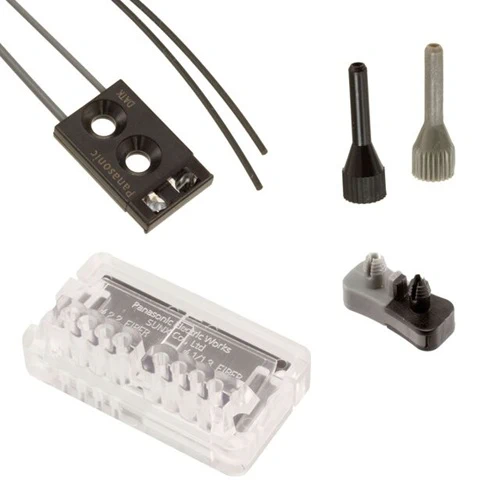

■ It is a fiber in which the sensing distance is limited to a specific range so it is not easily affected by the background. It is effective when a workpiece is accumulated or when the background is near.
| Type | Shape of fiber head (mm) |
Model No. | Bending radius (mm) |
Fiber cable length |
Free-cut | Protection | Ambient temp. |
|---|---|---|---|---|---|---|---|
| Glass substrate detection | Mapping W25×H7.3×D30 |
FD-L32H | R4 Bending durability |
4m | Available | IP40 | -40 to +60℃ |
Alignment W20×H29×D3.8 |
 FD-L30A |
R2 Bending durability |
3m | 0 to +70℃ |
|||
Alignment W23.5×H29×D4.5 |
FD-L31A |
R4 Bending durability |
|||||
Alignment W17×H29×D3.8 |
FD-L22A |
R2 Bending durability |
2m | ||||
Seating confirmation W18×H29×D3.8 |
FD-L23 |
3m | -20 to +70℃ |
||||
Seating confirmation W12×H19×D3 |
FD-L11 |
R4 Bending durability |
2m | -40 to +60℃ |
|||
Seating confirmation W12×H19×D3 |
FD-L10 |
||||||
 W24×H21×D4 |
FD-L21 |
R2 Bending durability |
|||||
 W24×H21×D4 |
FD-L21W | R1 | |||||
| General purpose |  W6×H18×D14 |
FD-L20H |
R2 Bending durability |
-40 to +70℃ |
|||
| Ultla-small |  W7.2×H7.5×D2 |
FD-L12W | R1 | 1m | IP30 | -40 to +60℃ |
| Refer to “Digital Fiber Sensor FX-550/FX-550L List of fibers”, “Digital Fiber Sensor FX-500 Ver.2 List of fibers” and “Digital Fiber Sensor FX-100 List of fibers” for the sensing range. |
| ・ | : Refers to a fiber which possesses both unbreakable (bending radius: R10 mm R0.394 in, reciprocating bending: 180°) and more flexible (bending radius: R4 mm R0.157 in or less) features. |
|---|
