USD 142.72

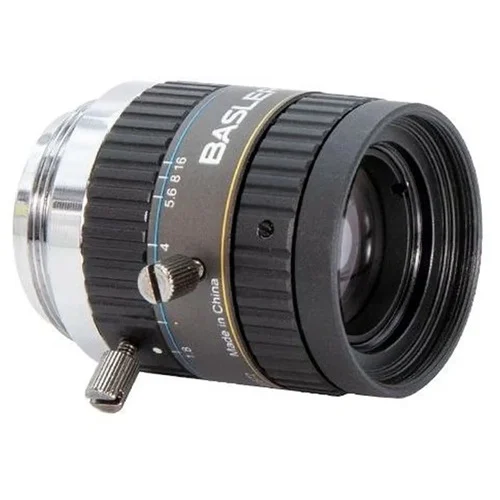

Premium 35mm F2.0 fixed focal lens for 5MP cameras with 2/3″ sensors, featuring C-mount and locking screws.
Premium 35mm F2.0 fixed focal lens for 5MP cameras with 2/3" sensors, featuring C-mount and locking screws.
| Parameter | Value |
|---|---|
| Focal Length | 35 mm |
| Aperture Range (Iris) | F2.0-F16 |
| Resolution | 5 MP |
| Sensor Format / Image Circle | up to 2/3" (11 mm diagonal) |
| Lens Mount | C-Mount |
| Minimum Object Distance (MOD) | 200 mm |
| Operating Temperature | -10–50 °C (14–122 °F) |
| Filter Thread | M27 x 0.5 |
| Relative Illumination at Full Aperture | 73 % |
| Distortion | < 0.14 % |
| Designed Pixel Size | 3.40 µm |
| Housing Material | Metal |
| Wavelength Range | Visible (400 to 700 nm) |
| Physical Weight (kg) | 0.07 |
| Dimensions L x W x H (cm) | 0 x 0 x 0 |
This lens is ideal for detailed inspection of miniature electronic components, pharmaceutical products, or small mechanical parts on an assembly line.
The 5 MP resolution and 3.40 µm pixel size support precise defect detection and quality control where fine details are critical, and the 200mm minimum object distance allows for close-up imaging.
Integrates seamlessly into robotic systems requiring visual guidance for picking and placing small, delicate items. The C-mount ensures broad compatibility with industrial cameras.
The high resolution enables robots to accurately identify and locate small objects, while the fixed 35mm focal length provides consistent magnification, crucial for repeatable robotic tasks within a short working distance.
Suitable for laboratory automation where automated systems need to analyze small medical samples or specimens under magnification.
The 5 MP resolution allows for clear imaging of cellular structures or other microscopic features, and the fixed 35mm focal length provides a stable field of view for consistent automated analysis. The metal housing ensures durability in a laboratory environment.
