High-resolution 5 MP fixed focal lens with 16 mm focal length and C-mount interface, optimized for 2/3″ sensor format and industrial vision tasks.

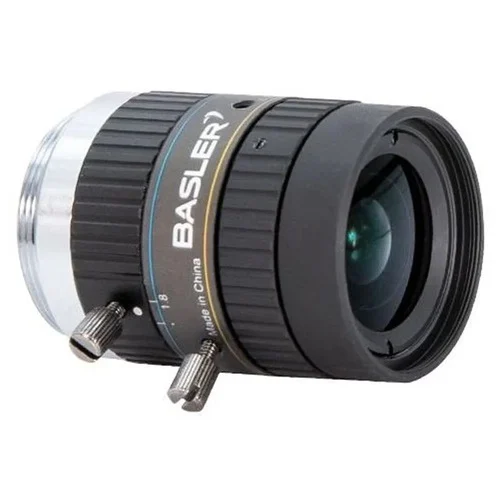

Basler Premium fixed focal C-mount lens with 16 mm nominal focal length, 5 MP resolution class, and 2/3" sensor coverage. The lens is designed for visible-light machine vision with a manual iris and focus, locking screws, low distortion, and high contrast. Manufacturer documentation lists a 0.2 m to infinity focus range, 0.5 m optimum working distance, and C-mount mechanical interface.
| Parameter | Value |
|---|---|
| Order Number | 2200000570 |
| Focal Length f' | 16.09 mm ± 5 % |
| Aperture Range | F2.0–F16 |
| Aperture with Highest Resolution | F2.4 |
| Image Circle | 11 mm (2/3" format) |
| Focus Range | 0.2 m to infinity |
| Optimum Working Distance | 0.5 m |
| Relative Illumination at Full Aperture | 55 % |
| Resolution | Designed for 147 LP/mm (3.40 µm pixel size) |
| MTF Center @ 90/140 LP/mm | 0.68 / 0.56 (F2.0, polychromatic, 0.45 m WD) |
| MTF Corner @ 90/140 LP/mm | 0.51 / 0.37 (F2.0, polychromatic, 0.45 m WD) |
| Optical Distortion | Typical -1.00 % |
| Angle of View, 1/1.8" Format | Horizontal: 25.3°, Vertical: 18.9° |
| Angle of View, 2/3" Format | Horizontal: 30.8°, Vertical: 23.3° |
| Wavelength Range | Visible (400–700 nm) |
| Back Focal Length | 9.98 mm |
| Flange Back | 17.526 mm |
| Mount | C-mount |
| Weight | Approx. 74.4 g |
| Focus/Iris Operation | Manual |
| Temperature During Operation | -10–50 °C |
| Humidity During Operation | 10–90 % relative humidity, non-condensing |
| Temperature During Storage | -20–60 °C |
The 16 mm focal length, 5 MP class resolution, and visible-light optimization suit inspection stations that must resolve fine print, codes, or micro-features on flat parts.
Maintains sharp imaging of small structures without excessive geometric distortion.
The 0.2 m to infinity focus range and 0.5 m optimum working distance make it practical for conveyor-mounted cameras inspecting parts at moderate standoff distance.
Provides stable framing and focus for fixed-station automation cells.
The lens is optimized for visible wavelengths, has 55% full-aperture illumination, and a metal housing with locking focus/iris, making it appropriate for repeatable QC imaging where settings must not drift.
Prevents focus and aperture movement under vibration while preserving consistent image contrast.
