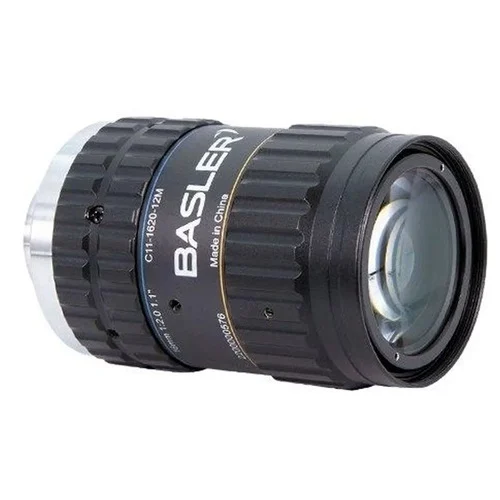

Basler C11-1620-12M-P C-Mount Fixed Focal Lens 16mm 12MP

Technical Overview

Premium 12MP C-mount fixed focal lens with 16mm focal length for 1.1" sensors, offering high resolution and low distortion.

Key Features

Fits all Basler cameras with a sensor size of up to 1.1"
Metal housing
C-mount
Locking screws for iris and focus
Aperture indicators on iris ring and lens barrel
High contrast
Designed and tested for the most demanding applications
Excellent price/performance ratio
Brilliant image quality for high-resolution CMOS sensors
Long availability
Manual focus and iris
Visible wavelength range (400-700nm)

Technical Specification Matrix

Parameter	Value
Focal Length f'	16.36 mm ± 5 %
Aperture Range	F2.0–F16
Aperture with Highest Resolution	F2.3
Image Circle	17.6 mm (1.1" format)
Focus Range	0.1 m to infinity
Optimum Working Distance	0.4 m
Relative Illumination at Full Aperture	59 %
Resolution	12 MP (Designed for 140 LP/mm at 3.57 µm pixel size)
Optical Distortion	Typical -3.26 %
Angle of View (1.1" Format)	Horizontal: 47.9°, Vertical: 36.0°
Wavelength Range	Visible (400–700 nm)
Back Focal Length s'F	11.22 mm
Flange Back	17.526 mm
Mount	C-mount
Focus/Iris Operation	Manual
Operating Temperature	-20 to 60 °C
Filter Thread	M37 x 0.5
Physical Weight (kg)	0.2
Dimensions L x W x H (cm)	0 x 0 x 0

Industrial Applications

1. High-Precision Quality Control in Electronics Manufacturing

This lens, with its 12 MP resolution and ability to achieve 140 LP/mm, is ideal for inspecting minute components and solder joints on printed circuit boards (PCBs) or semiconductor wafers. The low distortion ensures accurate measurements across the entire field of view, critical for automated optical inspection (AOI) systems. The 0.1m minimum working distance allows for close-up inspection.

Problem Solved

Ensures the detection of tiny defects, misalignments, or contaminants that are invisible to the naked eye, improving product reliability and reducing waste in high-volume production.

Automated Optical Inspection (AOI)PCB inspectionSemiconductor inspectionSolder joint inspectionMicro-defectsHigh resolution imaging

2. Pharmaceutical Packaging and Label Verification

The lens's high resolution and clear image quality, coupled with low distortion, are perfect for verifying alphanumeric codes, barcodes, and intricate graphics on pharmaceutical packaging and labels. It can accurately read expiration dates, lot numbers, and ensure label integrity and placement at high speeds in a production line. The 0.1m minimum object distance is suitable for inspecting small packages.

Problem Solved

Prevents mislabeled or incorrectly packaged pharmaceutical products from reaching the market, ensuring regulatory compliance, patient safety, and brand protection.

Pharmaceutical packagingLabel inspectionBarcode readingOCR/OCVSerializationQuality assuranceHigh contrast imaging

3. Robotic Vision for Assembly and Pick-and-Place Operations

With its robust metal housing, C-mount compatibility, and high resolution, this lens can be integrated into robotic vision systems for precise component recognition and positioning. The 16mm fixed focal length and 1.1" image circle provide a consistent field of view, while the manual focus and iris locking screws ensure stability in industrial environments with vibrations. The operating temperature range of -20 to 60 °C supports various industrial conditions.

Problem Solved

Enables robots to accurately identify, locate, and manipulate small parts with high precision, improving efficiency and reliability in automated assembly lines.

Robotic guidancePick-and-placeAutomated assemblyPart recognitionMachine visionC-mountIndustrial automation
