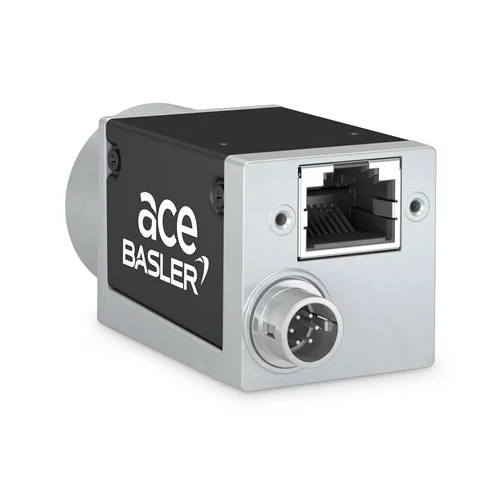

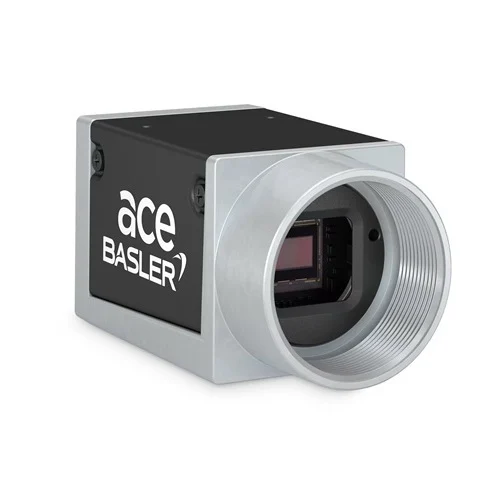

Basler ace acA3088-16gm Monochrome GigE Camera

Technical Overview

Compact 6.3 MP monochrome GigE camera with Sony IMX178 sensor, 16 fps, PoE, and IP30 rating, ideal for high-resolution industrial machine vision.

Key Features

6.3 MP (3088 x 2064) resolution with Sony IMX178 CMOS sensor.
Gigabit Ethernet (GigE) interface for reliable data transfer.
Power over Ethernet (PoE) for single-cable power and data.
Compact size: 42.0 x 29 x 29 mm.
C-mount lens compatibility.
Operating temperature range of 0 °C to 50 °C.
IP30 protection class.
Includes Basler pylon Software Suite for easy integration and control.
Multiple I/O lines for versatile synchronization and control (opto-coupled input/output, GPIO).
Supports hardware, software, and free-run triggering.

Technical Specification Matrix

Parameter	Value
Resolution (H x V Pixels)	3088 x 2064
Resolution (Megapixels)	6.3 MP
Sensor Type	Sony IMX178LLJ-C Progressive scan CMOS Rolling shutter
Sensor Format	1/1.8"
Pixel Size (H x V)	2.4 µm x 2.4 µm
Frame Rate	16 fps
Interface	Gigabit Ethernet (GigE)
Lens Mount	C-mount
Operating Temperature	0–50 °C
Power over Ethernet (PoE) Consumption	≈2.9 W (typical)
I/O Connector Power Consumption	≈2.5 W (typical) @ 12–24 VDC
Power Supply Range (I/O Connector)	12–24 VDC (min 10.8 VDC, max 30 VDC)
I/O Lines	1 opto-coupled input, 1 opto-coupled output, 1 general purpose I/O (GPIO)
IP Rating	IP30
Conformity	CE (includes RoHS), EAC, UKCA, UL Listed, FCC, GenICam, GigE Vision, IEEE 802.3af (PoE), REACH, KC
Physical Weight (kg)	0.09
Dimensions L x W x H (cm)	4.2 x 2.9 x 2.9

Industrial Applications

1. Automated Visual Inspection for Defect Detection

This camera can be integrated into automated manufacturing lines for high-speed, high-resolution visual inspection of small components or surfaces. Its 6.3 MP monochrome sensor captures fine details, detecting subtle defects like scratches, dents, or misalignments. The 16 fps frame rate allows for continuous inspection on fast-moving lines, while GigE and PoE simplify integration into existing factory networks. The IP30 rating indicates suitability for controlled industrial environments.

Problem Solved

Ensures product quality by automatically identifying manufacturing defects that are difficult or impossible for human inspectors to consistently detect, increasing throughput and reducing errors.

Machine VisionQuality ControlDefect DetectionAutomated InspectionGigEPoEHigh ResolutionMonochrome Imaging

2. High-Resolution Image Acquisition for Microscopy

The acA3088-16gm is well-suited for laboratory applications requiring high-resolution image capture, such as in scientific microscopy or material analysis. Its C-mount allows direct attachment to microscopes, and the 6.3 MP monochrome sensor provides detailed grayscale images crucial for precise measurement and analysis of biological samples, material structures, or micro-assemblies. The GigE interface ensures fast data transfer to processing workstations.

Problem Solved

Provides clear, high-detail digital images for scientific documentation, quantitative analysis, and research, replacing less efficient or lower-resolution imaging methods.

MicroscopyScientific ImagingMaterial ScienceImage AnalysisC-mountHigh ResolutionMonochrome

3. Traffic and License Plate Recognition (Daylight/Controlled Lighting)

With its 6.3 MP resolution and 16 fps, this camera can capture clear images of vehicles and license plates in applications like traffic monitoring, toll collection, or access control. The monochrome sensor offers excellent contrast, which is beneficial for optical character recognition (OCR) of license plates. The GigE interface allows for real-time data streaming, and PoE simplifies deployment in roadside cabinets where power outlets might be limited. The 0-50°C operating temperature supports outdoor enclosure integration.

Problem Solved

Enables automated identification and tracking of vehicles, improving traffic management, security, and enforcement efficiency.

Traffic MonitoringLicense Plate Recognition (LPR)Automated Number Plate Recognition (ANPR)Vehicle IdentificationGigEPoEHigh ResolutionMonochrome
