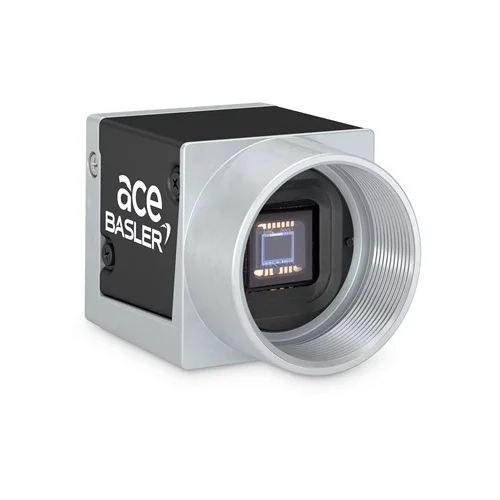

Basler ace acA2500-14um Industrial Monochrome USB 3.0 Camera

Technical Overview

5MP monochrome USB 3.0 camera with 2592x1944 resolution, 14 fps, 12-bit pixel depth, and IP30 rating.

Key Features

High-speed USB 3.0 Interface for up to 5 Gbit/s data transfer.
Ultra-small 29 x 29 x 29 mm form factor.
5 MP resolution (2592 x 1944 pixels) with 1/2.5" ON Semi MT9P031 progressive scan CMOS sensor.
14 frames per second at full resolution.
Monochrome imaging with 12-bit pixel depth and 60.6 dB dynamic range.
C-Mount lens compatibility.
Hardware trigger (GPIO) and free-run synchronization options.
Single cable operation for power and data via USB 3.0.
Includes Basler Pylon SDK software and driver.
IP30 rating for environmental protection.

Technical Specification Matrix

Parameter	Value
Resolution (H x V Pixels)	2592 x 1944
Resolution	5 MP
Sensor Type	onsemi MT9P031 Progressive Scan CMOS Rolling Shutter
Sensor Format	1/2.5"
Pixel Size (H x V)	2.2 x 2.2 µm
Frame Rate	14 fps
Spectrum	Monochrome
Interface	USB 3.0
Power Supply	5 VDC (Power over USB)
Power Requirements (Typical)	2.2 W
Synchronization	Hardware Trigger (GPIO) or Free-Run; Software Trigger
GPIO Connector Type	6-pin Hirose (HR10A)
Lens Mount	C-Mount
Operating Temperature	0 to +50 °C
Storage Temperature	-20 to +80 °C
IP Rating	IP30
Pixel Depth	12 bit
Dynamic Range	60.6 dB
Conformity	CE, EAC, FCC, GenICam, IP30, KC, RoHS, UKCA, UL, USB3 Vision, REACH
Physical Weight (kg)	0.08
Dimensions L x W x H (cm)	2.93 x 2.9 x 2.9

Industrial Applications

1. Automated Quality Control in Electronics Manufacturing

The Basler acA2500-14um is highly suitable for integration into Automated Optical Inspection (AOI) systems for printed circuit boards (PCBs) and semiconductor components. Its 5 MP monochrome sensor and 12-bit pixel depth allow for the detection of fine defects and precise measurement of component placement.

Problem Solved

Ensures high product quality by automatically identifying microscopic defects on electronic components that are difficult for human inspection to detect consistently. The compact 29x29x29mm form factor facilitates integration into space-constrained inspection machines.

Automated Optical Inspection (AOI)PCB inspectionSemiconductor inspectionDefect detectionHigh resolution imagingMonochrome sensing

2. Precision Measurement and Gauging in Machining

This camera can be effectively used in machine vision systems for non-contact, precise dimensional measurement and gauging of machined parts. Its 2592x1944 pixel resolution and 14 fps frame rate provide the necessary detail and speed for verifying tight tolerances and ensuring consistency in manufacturing processes.

Problem Solved

Replaces slower, less accurate manual measurement tools with a fast, automated, and highly repeatable system, reducing human error and increasing throughput for quality control of precision-machined components.

Dimensional measurementAutomated gaugingPrecision manufacturingNon-contact measurementMetrologyTolerance verification

3. Barcode and 2D Code Reading for Traceability

The Basler acA2500-14um is ideal for robust reading of high-density 1D and 2D barcodes (e.g., Data Matrix, QR codes) on various products in logistics and manufacturing. The high resolution, monochrome imaging, and 60.6 dB dynamic range ensure reliable decoding even on low-contrast or challenging surfaces.

Problem Solved

Enables reliable and fast product traceability and identification throughout the supply chain and production line, enhancing inventory management and quality assurance. The USB 3.0 interface ensures quick data transfer for real-time tracking.

Barcode reading2D code scanningData Matrix decodingTraceabilityLogistics automationProduct identificationHigh-density codes
