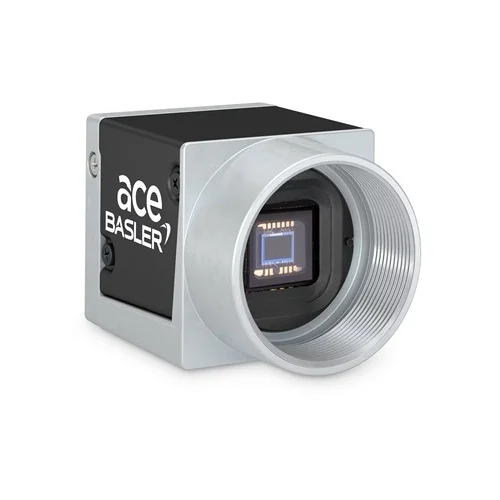

Basler ace acA2040-120um Monochrome USB 3.0 Camera

Technical Overview

3.2MP monochrome USB 3.0 camera with Sony IMX252 global shutter sensor, 120 fps, and 29.3x29x29mm compact design.

Key Features

3.2 MP (2048 x 1536) resolution with 120 fps at full resolution.
Sony IMX252 progressive scan CMOS global shutter sensor.
USB 3.0 interface with screw-locking ports for ruggedness.
Compact 29.3 x 29 x 29 mm form factor (excluding connectors and lens mount).
Power over USB (Power over USB 3.0).
Hardware and software trigger synchronization, plus free-run mode.
10/12-bit pixel depth.
73.2 dB dynamic range.
Includes Basler Pylon SDK software and driver.
IP30 rating.
Multiple I/O lines (1 opto-coupled input, 1 opto-coupled output, 2 general purpose I/O).

Technical Specification Matrix

Parameter	Value
Type	Monochrome Camera
Resolution (H x V Pixels)	2048 x 1536 (default), 2064 x 1544 (full)
Resolution (Megapixels)	3.2 MP
Frame Rate (fps)	120 fps
Sensor Type	Sony IMX252LLR-C Progressive Scan CMOS Global Shutter
Sensor Format	1/1.8"
Pixel Size (H x V)	3.45 x 3.45 µm
Sensing Area (H x V)	7.07 x 5.3 mm
Pixel Depth	10/12 bit
Dynamic Range	73.2 dB
Interface	USB 3.0
Power Supply	Power over USB
Power Requirements (typical)	3.1 W @ 5 VDC
Synchronization	Hardware Trigger (GPIO), Software Trigger, Free-Run
Lens Mount	C-Mount
Operating Temperature	0 to +50 °C
IP Rating	IP30
Conformity	CE (incl. RoHS), EAC, UKCA, UL Listed, FCC, GenICam 2.x, USB3 Vision, REACH, KC
Physical Weight (kg)	0.08
Dimensions L x W x H (cm)	2.93 x 2.9 x 2.9

Industrial Applications

1. High-Speed Defect Detection in Manufacturing

The camera's 3.2 MP resolution at 120 fps, combined with a global shutter, makes it ideal for capturing fast-moving objects on production lines to detect subtle defects such as scratches, blemishes, or misalignments. The high frame rate ensures no object is missed, while the global shutter prevents motion blur.

Problem Solved

Ensures rapid and accurate quality control in high-volume manufacturing, reducing faulty products and increasing throughput.

Machine visionQuality controlDefect inspectionHigh-speed imagingGlobal shutter120 fps3.2 MP

2. Automated Component Inspection for Electronics Assembly

With its 3.45 x 3.45 µm pixel size and 73.2 dB dynamic range, this monochrome camera can provide detailed, high-contrast images for inspecting small electronic components (e.g., PCBs, SMT parts) for correct placement, solder joint quality, and presence/absence. The compact size (29.3 x 29 x 29 mm) allows integration into space-constrained assembly machines.

Problem Solved

Automates precise inspection of miniature components, improving reliability and consistency in electronics manufacturing.

PCB inspectionSMT inspectionComponent verificationHigh resolutionPixel detailCompact form factor

3. Robotic Guidance and Pick-and-Place Operations

The USB 3.0 interface providing power and data over a single cable, combined with hardware trigger synchronization, enables efficient integration with robotic systems for guiding robots in pick-and-place or assembly tasks. The camera can accurately locate objects, and its 0 to +50 °C operating temperature ensures reliability in typical industrial environments.

Problem Solved

Provides accurate and reliable visual feedback for robotic automation, enhancing precision and speed in material handling and assembly.

Robotic visionPick-and-placeAutomationUSB 3.0Hardware triggerIndustrial environment
