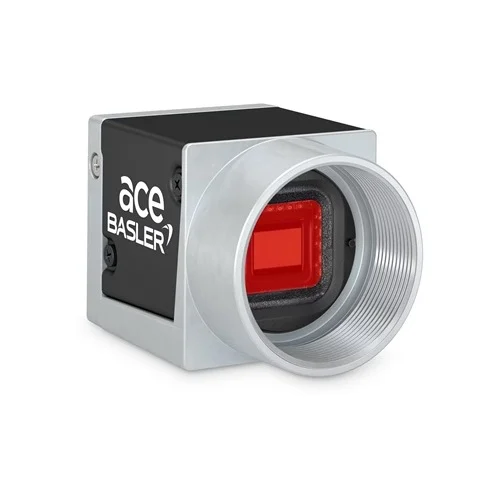

Basler ace acA1300-200uc USB 3.0 Color Camera

Technical Overview

Compact 1.3MP color industrial camera with USB 3.0 interface, 203 fps, global shutter, and IP30 rating.

Key Features

1.3 MP resolution (1280 x 1024 pixels).
High frame rate of up to 203 frames per second.
ON Semiconductor PYTHON 1300 CMOS sensor with Global Shutter.
USB 3.0 interface with Power over USB capability.
Ultra-compact housing size of 29 x 29 x 29 mm.
C-Mount lens compatibility.
USB3 Vision and GenICam compliant for broad software compatibility.
Includes Basler Pylon SDK software and driver.
Supports hardware trigger (GPIO), software trigger, and free-run synchronization.
Operating temperature range from 0 °C to +50 °C.
IP30 conformity for protection against solid objects larger than 2.5mm.
10-bit pixel depth for detailed image data.

Technical Specification Matrix

Parameter	Value
Resolution (H x V Pixels)	1280 x 1024
Resolution (Megapixels)	1.3 MP
Frame Rate (fps)	203 fps
Sensor Type	ON Semiconductor PYTHON 1300 Progressive Scan CMOS
Shutter Type	Global Shutter
Sensor Format	1/2"
Pixel Size (H x V)	4.8 µm x 4.8 µm
Pixel Bit Depth	10 bit
Interface	USB 3.0
Power Supply	Via USB 3.0 interface (5 VDC nominal)
Power Consumption (Typical)	3 W
Power Consumption (Maximum)	3.3 W
Lens Mount	C-Mount
Operating Temperature	0 to +50 °C
IP Rating	IP30
Synchronization	Hardware Trigger, Software Trigger, Free-Run
I/O Lines	1 opto-coupled input, 1 opto-coupled output, 2 general purpose I/O (GPIO)
Physical Weight (kg)	0.08
Dimensions L x W x H (cm)	2.93 x 2.9 x 2.9

Industrial Applications

1. High-Speed Component Inspection

This camera is ideal for inspecting fast-moving components on an assembly line, such as verifying correct part placement, detecting surface defects, or reading barcodes. Its 203 fps frame rate captures quick events, while the 1.3 MP resolution with global shutter ensures sharp, undistorted images of moving objects.

Problem Solved

Prevents manufacturing errors and ensures product quality by enabling rapid, automated visual inspection of high-volume production lines.

Machine VisionAutomated Optical Inspection (AOI)Global ShutterHigh Frame RateDefect DetectionQuality Control

2. Real-time Microscopic Analysis

The compact size and high resolution make it suitable for integration into microscopy systems for real-time observation and analysis of biological samples or small-scale industrial processes. The color sensor aids in distinguishing features in stained samples, and the USB 3.0 interface allows for quick data transfer to a workstation.

Problem Solved

Provides clear, high-speed imaging for diagnostic purposes, research, or precision manufacturing at a microscopic level, facilitating accurate analysis and decision-making.

MicroscopyMedical ImagingBiological Sample AnalysisHigh ResolutionReal-time ImagingDigital Pathology

3. Robotics and Automation Guidance

Its small footprint and robust industrial design (IP30, 0-50°C operating temperature) allow for easy mounting on robotic arms or within tight spaces for guidance in pick-and-place operations, object recognition, or navigation. The high frame rate supports dynamic movements, providing up-to-date positional data.

Problem Solved

Enhances the precision and speed of robotic systems by providing reliable, high-frequency visual feedback for object manipulation and environmental interaction in automated settings.

Robotic VisionObject RecognitionIndustrial AutomationPick-and-PlaceCompact DesignReal-time Feedback
