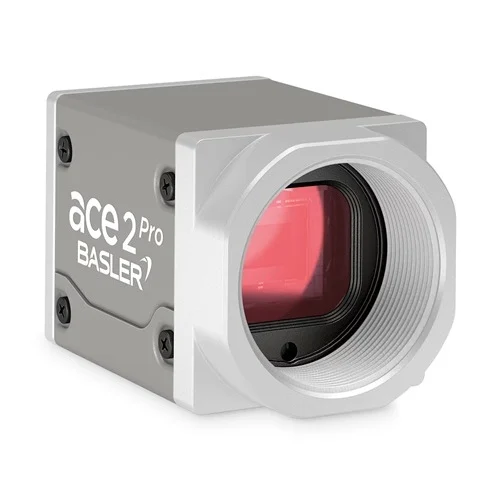

Basler ace 2 a2A2590-60ucPRO Color USB3 Camera

Technical Overview

5.1 MP color USB 3.0 camera with Sony IMX334ROI sensor, 60 fps, C-mount, and IP30 protection for demanding vision applications.

Key Features

5.1 MP resolution (2592 x 1944 pixels) at 60 fps.
Sony IMX334ROI CMOS sensor with rolling shutter.
USB 3.0 interface (USB3 Vision standard) for high-speed data transfer.
Compact housing with a 29 x 29mm footprint (excluding connectors and lens mount).
C-Mount lens compatibility for a wide range of optical options.
Integrated status LED, removable IR cut filter, and robust M8 connector.
Supports hardware trigger, software trigger, and free-run synchronization.
Includes Basler pylon SDK Software and Driver for easy integration.
PGI feature set for improved image quality.
Flexible power supply via USB 3.0 (5 VDC) or I/O connector (12-24 VDC).

Technical Specification Matrix

Parameter	Value
Resolution (H x V)	2592 x 1944 pixels (5.1 MP)
Frame Rate	60 fps
Sensor Type	Sony IMX334ROI CMOS, Rolling Shutter
Sensor Format	1/2.8"
Pixel Size (H x V)	2 μm × 2 μm
Pixel Depth	8/10/12 Bit
Interface	USB 3.0 (USB3 Vision)
Power Supply	≈3.2 W (typical) @ 5 VDC (via USB 3.0) or 12-24 VDC (via I/O connector)
Operating Temperature	-10 °C to +50 °C
Storage Temperature	-20 °C to +80 °C
Lens Mount	C-Mount
Protection Class	IP30
Dynamic Range	69.5 dB
Synchronization	Hardware Trigger, Software Trigger, Free-Run
GPIO	1 Digital Input, 2 General Purpose I/O (6-pin M8 connector)
Physical Weight (kg)	0.09
Dimensions L x W x H (cm)	4.28 x 2.9 x 2.9

Industrial Applications

1. High-Speed Quality Control in Manufacturing

This camera is ideally suited for automated optical inspection (AOI) on high-speed production lines. Its 5.1 MP resolution and 60 fps frame rate allow for precise and rapid capture of fast-moving components, ensuring detailed defect detection and quality verification. The color sensor is critical for identifying color-specific flaws or verifying product coloration.

Problem Solved

Ensures rapid and accurate quality control of products on fast-moving assembly lines by identifying even subtle defects in color or form.

Automated Optical Inspection (AOI)Defect DetectionHigh-Speed ImagingQuality AssuranceColor Verification

2. Robotics and Automation Guidance

With its compact dimensions (4.28 x 2.9 x 2.9 cm) and C-mount, the camera can be easily integrated onto robotic arms or automated guided vehicles (AGVs). The USB 3.0 interface ensures efficient data transfer for real-time robotic guidance, object recognition for pick-and-place tasks, or precise positioning in automated processes. The hardware trigger guarantees synchronization with robot movements.

Problem Solved

Provides reliable and precise visual feedback for industrial robots and automated systems, enabling accurate navigation, object handling, and complex task execution in confined spaces.

Robotic VisionObject RecognitionPick-and-PlaceMachine GuidanceFactory AutomationUSB3 Vision

3. Microscopy and Scientific Imaging

The 5.1 MP resolution, 2μm pixel size, and a dynamic range of 69.5 dB make this camera an excellent choice for microscopy and scientific imaging applications. It can capture highly detailed images with subtle tonal variations, crucial for biological research, material science, or digital pathology where accurate color and fine spatial resolution are paramount. The programmable exposure control allows for optimal image acquisition under varying lighting conditions.

Problem Solved

Offers high-resolution, high-fidelity color imaging for scientific research and analysis, capturing intricate details and subtle changes in microscopic samples or experimental setups.

MicroscopyScientific ImagingImage AnalysisDigital PathologyHigh ResolutionBiological Imaging
