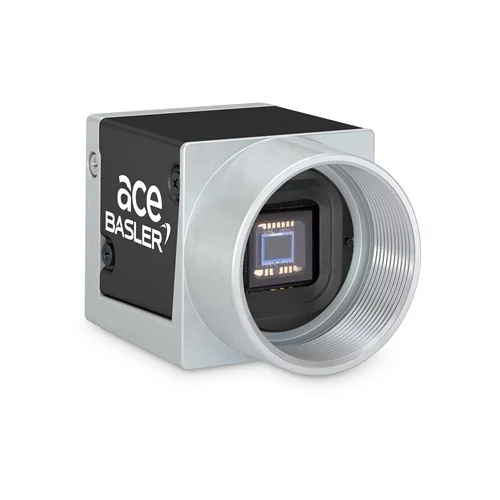

Basler acA5472-17um 20MP USB 3.0 Monochrome Camera

Technical Overview

20MP USB 3.0 monochrome camera with Sony IMX183 CMOS sensor, 17 fps, and compact 29x29x29mm form factor.

Key Features

20.0 MP Resolution (5472 x 3648 pixels)
17 frames per second (fps)
Sony IMX183 CMOS Sensor with Rolling Shutter
USB 3.0 Interface for high-speed data transfer and power
Compact 29.3 x 29 x 29 mm housing (without lens mount/connectors)
C-Mount lens compatibility
USB3 Vision and GenICam 2.x compliant
Includes Basler Pylon SDK software and driver
Hardware and Software Triggering
1 opto-coupled input, 1 opto-coupled output, 2 general purpose I/O (GPIO) lines
Operating Temperature: 0 to +50 °C
IP30 Protection Rating
10/12 bit Pixel Depth
PGI (Patented General Purpose Image) feature for in-camera image optimization

Technical Specification Matrix

Parameter	Value
Resolution (H x V Pixels)	5472 x 3648
Megapixels	20.0 MP
Frame Rate	17 fps
Sensor Type	Sony IMX183 CMOS, Progressive Scan, Rolling Shutter
Pixel Size (H x V)	2.4 μm x 2.4 μm
Sensor Format	1" (13.13 x 8.76 mm)
Interface	USB 3.0
Lens Mount	C-Mount
Power Supply	Power over USB, 5 VDC (min 4.5 VDC)
Power Consumption	≈2.9 W (typical)
I/O Lines	1 opto-coupled input, 1 opto-coupled output, 2 GPIO lines
Operating Temperature	0 to +50 °C
Storage Temperature	-20 to +80 °C
Humidity (Operating)	20-80% relative, non-condensing
IP Rating	IP30
Dynamic Range	71.8 dB (typical)
Pixel Bit Depth	10/12 bit
Physical Weight (kg)	0.08
Dimensions L x W x H (cm)	2.93 x 2.9 x 2.9

Industrial Applications

1. High-Resolution Quality Control in Electronics Manufacturing

Utilizing the 20.0 MP resolution and 2.4 µm pixel size to meticulously inspect small components, solder joints, and traces on printed circuit boards for defects or misalignments. The compact size allows integration into confined inspection stations.

Problem Solved

Ensuring the integrity and quality of miniature electronic components, preventing defects in high-density PCB assemblies, and automating visual inspection processes that require fine detail.

20 MP Resolution2.4 µm Pixel SizeElectronics InspectionPCB Quality ControlMicro-inspectionSmall Form Factor

2. Automated Pharmaceutical Packaging Inspection

The camera's 20.0 MP resolution and 17 fps frame rate enable rapid, detailed inspection of labels, batch codes, fill levels, and tamper-evident seals on pharmaceutical packaging lines. The USB 3.0 interface ensures quick data transfer for high-throughput environments, while the IP30 rating offers basic protection in cleanroom-like conditions.

Problem Solved

Verifying correct labeling, preventing packaging errors, and ensuring product safety and compliance in fast-paced pharmaceutical production lines.

20 MP Resolution17 fpsUSB 3.0Packaging InspectionPharmaceutical ManufacturingLabel VerificationIP30

3. Precision Measurement and Gauging in Automotive Assembly

Leveraging the high resolution (5472 x 3648 pixels) and C-Mount lens flexibility, the camera can accurately measure dimensions, verify component presence, and check alignment during automotive sub-assembly. The robust industrial design, 0 to +50 °C operating temperature, and GPIOs for synchronization integrate well into automated assembly lines for reliable operation.

Problem Solved

Achieving precise dimensional control and verifying correct assembly of parts in automotive production, reducing manual inspection errors, and ensuring product consistency.

5472 x 3648 ResolutionPrecision MeasurementAutomotive AssemblyC-MountGPIOIndustrial Automation0 to +50 °C
