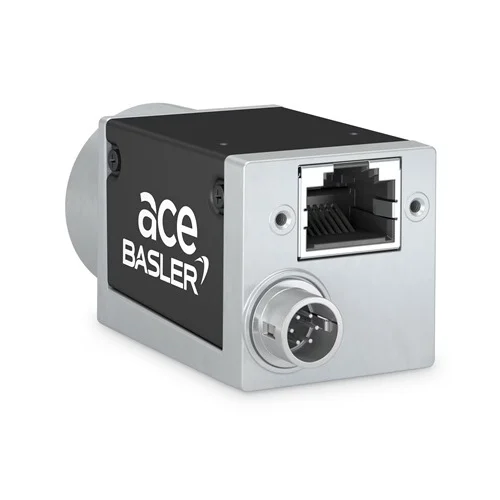

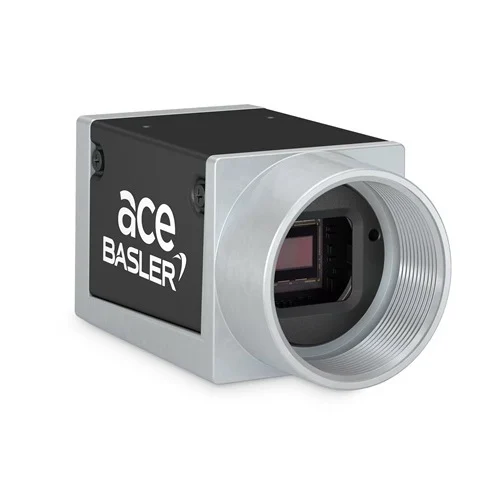

Basler acA4024-8gm GigE Monochrome Area Scan Camera

Technical Overview

Monochrome GigE area scan camera with 12.2 MP resolution, 8 fps, Sony IMX226 CMOS sensor, and PoE.

Key Features

12.2 MP Resolution (4024 x 3036 pixels)
8 fps Frame Rate
Sony IMX226 CMOS Sensor with Rolling Shutter
GigE Interface with Power over Ethernet (PoE)
C-Mount Lens Mount
Compact dimensions (42 x 29 x 29 mm without lens mount or connectors)
Monochrome imaging
Includes Basler pylon Software Suite for Windows, Linux, macOS, and Android
Operating temperature range of 0–50 °C
IP30 Protection Rating

Technical Specification Matrix

Parameter	Value
Resolution (H x V Pixels)	4024 x 3036
Resolution (Megapixels)	12.2 MP
Sensor Type	Sony IMX226CLJ-C Progressive Scan CMOS, Rolling Shutter
Sensor Format	1/1.7"
Effective Sensor Diagonal	9.33 mm
Pixel Size (H x V)	1.85 µm x 1.85 µm
Sensing Area (H x V)	7.44 mm x 5.61 mm
Frame Rate	8 fps
Monochrome/Color	Monochrome
Pixel Bit Depth	10/12 bit
Lens Mount	C-Mount
Interface	GigE (PoE)
Power Consumption (Typical)	≈2.9 W (PoE), ≈2.5 W (12-24 VDC)
Operating Voltage	12–24 VDC (via I/O connector) or PoE (IEEE 802.3af)
Housing Temperature during Operation	0–50 °C
IP Rating	IP30
Physical Weight (kg)	0.09
Dimensions L x W x H (cm)	4.2 x 2.9 x 2.9

Industrial Applications

1. High-Precision Quality Control in Electronics Manufacturing

This camera is ideal for detailed inspection of electronic components on production lines. Its high resolution and fine pixel size enable detection of microscopic defects, such as faulty solder joints or misaligned components on PCBs. The compact form factor allows for easy integration into existing machine vision systems, and PoE simplifies cabling.

Problem Solved

Detecting microscopic defects and ensuring precise component placement in electronics assembly, improving product quality and reducing manufacturing rework.

Machine VisionAutomated Optical Inspection (AOI)PCB InspectionSolder Joint InspectionHigh Resolution Imagingµm-level Defect DetectionCompact Camera IntegrationPoE

2. Industrial Metrology and Dimensional Gauging

With its 12.2 MP resolution and precise 1.85 µm pixel size, the camera excels in accurate dimensional measurements of manufactured parts. The monochrome sensor provides high contrast for critical edge detection, ensuring parts meet strict tolerance requirements for quality assurance. The GigE interface ensures reliable data transfer in industrial environments.

Problem Solved

Accurately measuring critical dimensions of parts for quality control, eliminating manual measurement errors, and ensuring compliance with stringent design specifications.

Dimensional MeasurementGaugingMetrologyQuality AssuranceEdge DetectionHigh-Resolution SensorMonochrome ImagingIndustrial Automation

3. Automated Assembly Verification in Robotics

The camera's compact size and C-mount compatibility make it suitable for mounting on robotic arms in automated assembly cells. Its high resolution allows for verification of correct component placement and detection of missing parts in complex assembly sequences, providing real-time feedback for robotic manipulation. PoE simplifies wiring on moving robotic systems.

Problem Solved

Verifying correct component assembly and preventing errors in automated robotic workstations, ensuring consistent product builds and reducing rework.

Robotic VisionAssembly AutomationComponent VerificationPick-and-PlaceReal-Time ImagingCompact CameraPoEIndustrial Robotics
