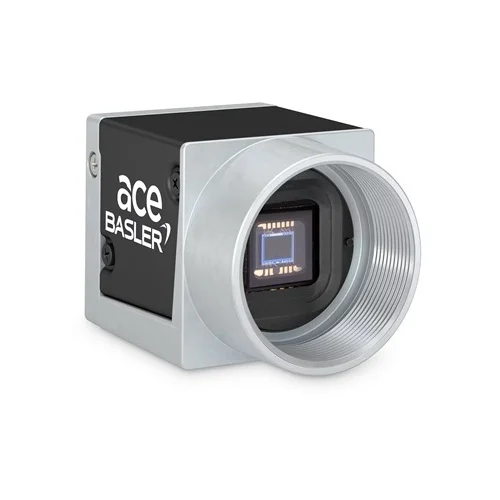

Basler acA2440-35um 5MP Mono USB 3.0 Camera

Technical Overview

Compact 5MP monochrome industrial camera with global shutter sensor and 35 fps, ideal for high-speed machine vision.

Key Features

5 MP Sony IMX264 CMOS sensor
Global Shutter technology
35 fps frame rate at 2448 x 2048 resolution
USB 3.0 interface with screw-locking connector
USB3 Vision compliant
Compact 29.3 x 29 x 29 mm form factor
Monochrome imaging
C-Mount lens interface
Power over USB functionality
Includes Basler Pylon SDK software and driver
IP30 rating
I/O Lines: 1 opto-coupled input, 1 opto-coupled output, 2 general purpose I/O lines

Technical Specification Matrix

Parameter	Value
Resolution (H x V Pixels)	2448 x 2048
Frame Rate	35 fps
Sensor Type	Sony IMX264LLR-C Progressive Scan CMOS Global Shutter
Sensor Format	2/3"
Pixel Size (H x V)	3.45 x 3.45 µm
Spectrum	Monochrome
Interface	USB 3.0
Power Consumption (typical)	2.5 W
Operating Voltage	5 VDC (min 4.5 VDC) via USB 3.0
I/O Lines	1 opto-coupled input, 1 opto-coupled output, 2 general purpose I/O
Lens Mount	C-Mount
Operating Temperature	0 to +50 °C
IP Rating	IP30
Physical Weight (kg)	0.08
Dimensions L x W x H (cm)	2.93 x 2.9 x 2.9

Industrial Applications

1. High-Speed Defect Detection in Manufacturing

The camera's 5 MP resolution and 35 fps global shutter make it ideal for capturing sharp images of fast-moving objects on production lines, enabling real-time inspection for surface defects, assembly errors, or missing components. The IP30 rating allows for integration into typical factory environments where dust ingress is limited.

Problem Solved

Traditional lower-frame-rate cameras may miss subtle defects on high-speed production lines, leading to quality control issues. The acA2440-35um's combination of high resolution and speed ensures comprehensive and reliable inspection.

Machine VisionQuality ControlDefect InspectionGlobal ShutterHigh Frame RateIndustrial AutomationProduction Line

2. Precision Measurement and Gauging Systems

With its 2448 x 2048 resolution and 3.45 µm pixel size, this camera can be integrated into systems requiring high-precision dimensional measurements of small parts. The global shutter prevents motion blur, crucial for accurate measurements in dynamic setups. Its compact size facilitates integration into tight spaces within measurement equipment.

Problem Solved

Achieving sub-micron level accuracy for dimensional analysis of components. The camera's high pixel density and global shutter allow for precise edge detection and measurement, reducing human error and improving measurement throughput.

MetrologyDimensional MeasurementOptical GaugingPrecision ImagingGlobal ShutterHigh ResolutionQuality Assurance

3. Robotics and Pick-and-Place Systems

The camera's compact form factor and USB 3.0 interface with Power over USB simplify integration into robotic arms or collaborative robot setups for tasks like object recognition, part sorting, and accurate pick-and-place operations. The 35 fps allows for rapid feedback to the robot control system.

Problem Solved

Enabling robots to accurately identify, locate, and manipulate objects at high speeds. The camera's quick image acquisition and precise resolution provide the necessary visual data for robotic guidance, reducing cycle times and increasing automation efficiency.

Robotic VisionObject RecognitionPick-and-PlaceCollaborative RoboticsUSB 3.0Real-time FeedbackAutomation
