USD 818.49
5 MP global-shutter GigE camera with PoE or 12–24 VDC, C-mount, IP30 housing, and 2/3-inch Sony IMX264 sensor.

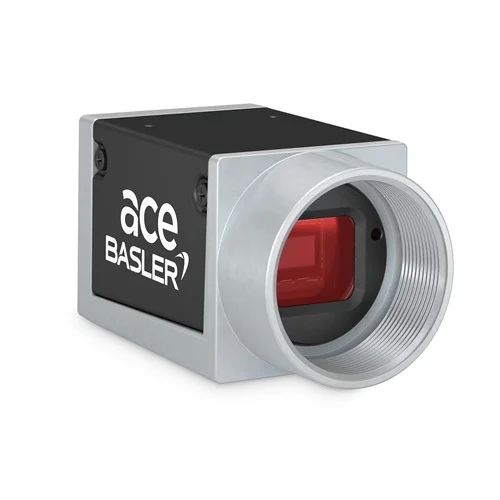

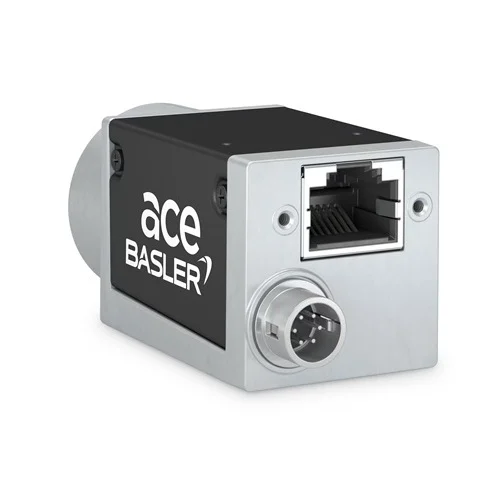

Basler ace U acA2440-20gc is a color GigE industrial area-scan camera built around the Sony IMX264LQR-C global-shutter CMOS sensor. It provides 5 MP resolution, 2/3-inch sensor format, hardware/software/free-run synchronization, and dual power options via PoE or 12–24 VDC. Documentation lists a compact C-mount box housing with industrial I/O and IP30 conformity, making it suitable for machine-vision inspection and general automation imaging.
| Parameter | Value |
|---|---|
| Resolution (default) | 2448 × 2048 pixels |
| Resolution (full) | 2464 × 2056 pixels |
| Sensor | Sony IMX264LQR-C |
| Sensor type | Progressive scan CMOS |
| Shutter | Global shutter |
| Sensor format | 2/3 inch |
| Effective sensor diagonal | 11.1 mm |
| Pixel size | 3.45 × 3.45 µm |
| Frame rate at default settings | 22.7 fps |
| Mono / Color | Color |
| Image data interface | Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s) |
| Image data stream protocol | GVSP |
| Synchronization | Hardware trigger, software trigger, free run |
| Exposure time control | Via hardware trigger; programmable via camera API |
| Power requirements (PoE) | ≈3.3 W typical, ≈3.8 W max. |
| Power requirements (12–24 VDC) | ≈2.8 W typical, ≈3.5 W max. |
| I/O lines | 1 opto-coupled input line, 1 opto-coupled output line, 1 GPIO line |
| Lens mount | C-mount |
| Size without lens mount or connectors | 42.0 × 29 × 29 mm |
| Size with lens mount and connectors | 60.3 × 29 × 29 mm |
| Weight | <90 g |
| Conformity | CE (includes RoHS), EAC, UKCA, UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH, KC |
| Product family | ace U |
| Camera category | Area Scan Camera |
The global shutter, 5 MP color sensor, and GigE interface support stable image capture on moving conveyor lines without motion distortion.
Eliminates blur and geometric skew in fast-moving inspection targets.
Compact C-mount GigE imaging with hardware triggering enables deterministic part localization for robotic pick-and-place cells.
Provides repeatable image acquisition timing for robot guidance.
The color 2/3-inch sensor and programmable exposure control suit inline verification of labels, markings, and packaging codes.
Improves readability and inspection consistency across variable packaging surfaces.
