USD 1,394.07

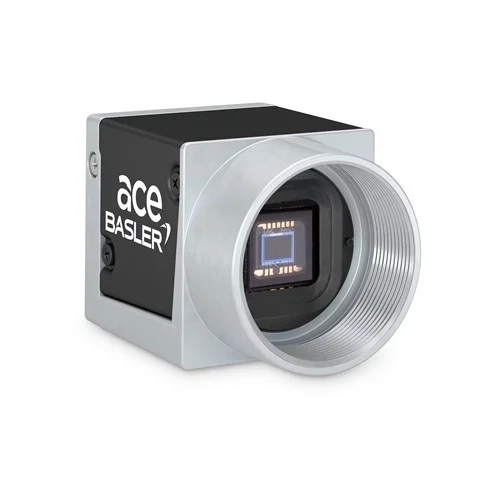

Monochrome industrial camera with a 2.2 MP global shutter CMOS sensor, 165 fps, and USB 3.0 for high-speed machine vision.
Monochrome industrial camera with a 2.2 MP global shutter CMOS sensor, 165 fps, and USB 3.0 for high-speed machine vision.
| Parameter | Value |
|---|---|
| Resolution (H x V Pixels) | 2048 x 1088 |
| Resolution (Megapixels) | 2.20 MP |
| Frame Rate | 165 fps |
| Sensor Type | ams CMV2000 Progressive scan CMOS Global shutter |
| Sensor Format | 2/3" |
| Pixel Size (H x V) | 5.5 μm x 5.5 μm |
| Interface | USB 3.0 |
| Power Requirements | ≈3.2 W (max) @ 5 VDC via USB 3.0 interface |
| Operating Temperature | 0 to +60 °C |
| Storage Temperature | -20 to +80 °C |
| Lens Mount | C-Mount |
| IP Rating | IP30 |
| Pixel Depth | 10/12 bit |
| Dynamic Range | 56.5 dB (typical) |
| Physical Weight (kg) | 0.08 |
| Dimensions L x W x H (cm) | 2.93 x 2.9 x 2.9 |
This camera is ideal for quality control in manufacturing lines, where products move rapidly and require detailed inspection for defects.
Detects small defects like scratches, foreign particles, or assembly errors on fast-moving objects, ensuring only quality products proceed.
Suitable for non-contact dimensional measurement and metrology in industries requiring high accuracy, such as electronics or medical devices.
Provides accurate, repeatable dimensional measurements of small components, ensuring tight tolerance adherence without physical contact.
Its compact size and global shutter make it perfect for mounting on robotic arms or within tight spaces for guidance and object manipulation.
Guides robotic manipulators for precise pick-and-place, assembly, or inspection tasks, even in dynamic or space-constrained environments.
