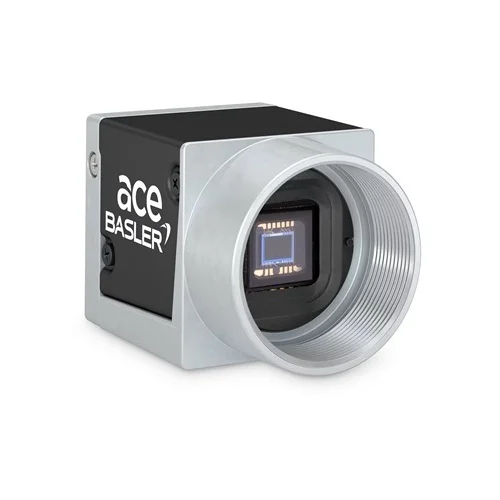

Basler acA1920-25um 2MP USB 3.0 Monochrome Industrial Camera

Technical Overview

2MP monochrome industrial camera with 1920x1080 resolution, 26 fps, USB 3.0 interface, C-mount lens mount, and compact 29.3 x 29 x 29 mm housing.

Key Features

2 MP (1920 x 1080) resolution.
26 frames per second (fps).
Monochrome imaging.
onsemi MT9P031 CMOS Rolling Shutter sensor.
USB 3.0 (USB3 Vision) interface.
C-mount lens mount.
Compact housing dimensions of 29.3 x 29 x 29 mm (without lens mount or connectors).
Low power consumption of approximately 2.2 W at 5 VDC.
Flexible I/O with 1 opto-coupled input, 1 opto-coupled output, and 2 general purpose I/O (GPIO) lines.
IP30 conformity for protection against solid objects larger than 2.5mm.

Technical Specification Matrix

Parameter	Value
Resolution (H x V)	1920 x 1080 pixels
Sensor Type	onsemi MT9P031 Progressive scan CMOS Rolling shutter
Sensor Format	1/3.7"
Pixel Size (H x V)	2.2 x 2.2 µm
Frame Rate	26 fps
Interface	USB 3.0 (USB3 Vision)
Lens Mount	C-Mount
Mono/Color	Monochrome
Power Requirements	≈2.2 W (typical and max.) @ 5 VDC
I/O Lines	1 opto-coupled input, 1 opto-coupled output, 2 general purpose I/O (GPIO) lines
Operating Temperature	0 to 50 °C
IP Rating	IP30
Physical Weight (kg)	0.08
Dimensions L x W x H (cm)	2.93 x 2.9 x 2.9

Industrial Applications

1. Automated Quality Inspection in Electronics Manufacturing

This camera is ideal for integration into Automated Optical Inspection (AOI) systems for precise defect detection on Printed Circuit Boards (PCBs) and small electronic components. Its 2MP resolution and 26fps frame rate allow for high-throughput inspection of fine details on complex assemblies.

Problem Solved

Rapidly identifies manufacturing defects such as solder joint irregularities, missing components, or incorrect polarity, significantly improving product quality and reducing reliance on time-consuming manual inspections. The USB 3.0 interface ensures quick image transfer for fast processing.

Automated Optical Inspection (AOI)PCB inspectiondefect detectioncomponent presence/absencehigh-resolution imagingindustrial automationUSB 3.0

2. Barcode and OCR Reading in Logistics and Warehousing

The monochrome sensor and 2MP resolution of the acA1920-25um are perfectly suited for robust 1D/2D barcode reading and Optical Character Recognition (OCR) on labels or packages moving on conveyor belts within logistics and warehousing environments. The 26fps capture rate ensures no items are missed.

Problem Solved

Automates the identification and tracking of items, improving inventory accuracy, accelerating sorting processes, and enhancing overall throughput in supply chain management. The compact size facilitates easy integration into existing conveyor systems.

Barcode readingOCRpackage sortinglogistics automationmaterial handlingmonochrome visionhigh frame ratecompact design

3. Microscopy and Laboratory Automation

With its compact dimensions, C-mount lens compatibility, and 2MP monochrome sensor, this camera is an excellent choice for scientific imaging applications in microscopy, such as analysis of biological samples or material science. It can also be seamlessly integrated into various automated laboratory equipment.

Problem Solved

Provides clear, high-contrast, detailed images essential for accurate analysis and documentation in research and development settings, particularly for applications where enhanced contrast of monochrome images is critical, enabling precise observation and measurement.

Microscopyscientific imaginglaboratory automationbiological imagingmaterial analysisC-mounthigh contrastcompact form factor
