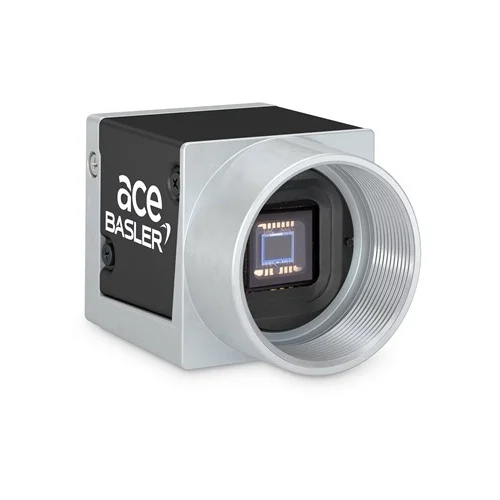

Basler acA1440-220um Ace U Industrial Camera

Technical Overview

Compact 1.6 MP monochrome camera with Sony IMX273 sensor, delivering 227 fps via USB 3.0 with global shutter.

Key Features

1/2.9" CMOS monochrome sensor with Global shutter.
USB 3.0 Vision and GenICam compliant interface.
Compact 29.3 x 29 x 29 mm housing.
Delivers up to 227 frames per second at full 1440 x 1080 resolution.
Power and data transfer via a single USB 3.0 cable.
Programmable pixel data output in 8, 10, or 12-bit depth.
Automatic exposure control, pixel binning, and horizontal image mirroring.
Includes 1 opto-coupled input, 1 opto-coupled output, and 2 general purpose I/O lines.
Screw-locking USB 3.0 ports for increased ruggedness in demanding applications.

Technical Specification Matrix

Parameter	Value
Resolution (H x V Pixels)	1440 x 1080
Sensor Type	Sony IMX273LLR-C CMOS (Pregius)
Sensor Format	1/2.9"
Frame Rate	227 fps
Interface	USB 3.0
Lens Mount	C-mount
Pixel Depth	8, 10, or 12 bit
Power Requirements	≈3.3 W (typical) @ 5 VDC, ≈3.4 W (max.)
I/O Lines	1 opto-coupled input, 1 opto-coupled output, 2 general purpose I/O (GPIO)
IP Rating	IP30
Operating Temperature	0 to +50 °C
Storage Temperature	-20 to +80 °C
Conformity	CE (RoHS), EAC, UKCA, UL Listed, FCC, GenICam 2.x, USB3 Vision, REACH, KC
Physical Weight (kg)	0.08
Dimensions L x W x H (cm)	2.93 x 2.9 x 2.9

Industrial Applications

1. High-Speed Manufacturing Quality Control

This camera is ideal for inspecting rapidly moving parts on an assembly line. Its 227 fps frame rate allows for detailed capture of each item, while the 1440x1080 monochrome global shutter sensor ensures crisp images free of motion blur for defect detection. The compact size (29.3 x 29 x 29 mm) allows for integration into tight spaces directly on the production line.

Problem Solved

Ensuring quality and detecting flaws in high-volume, fast-moving production environments where traditional cameras might miss defects due to motion blur or insufficient frame rates.

High-speed inspectionMotion blur reductionDefect detectionAssembly line automationGlobal shutter1.6 MP resolution

2. Precision Robotics Guidance and Positioning

With its precise 1440x1080 resolution and global shutter, the acA1440-220um can provide accurate visual feedback for robotic arms performing pick-and-place operations or precise component assembly. The USB 3.0 interface allows for high-bandwidth data transfer, critical for real-time control, and the opto-coupled I/O lines enable direct synchronization with robotic triggers and external lighting. The IP30 rating ensures suitability for typical industrial indoor environments.

Problem Solved

Providing high-accuracy, real-time visual data for industrial robots to perform delicate tasks, reducing errors and improving efficiency in automated manufacturing.

Robotics guidancePick-and-placeReal-time visionMachine vision feedbackI/O synchronizationUSB 3.0

3. Microscopy and Scientific Imaging

The camera's 1.6 MP monochrome sensor with 10/12-bit pixel depth is well-suited for scientific applications requiring detailed image analysis, such as microscopy or material science. Its operating temperature range of 0 to +50 °C allows for stable performance in laboratory settings, while the C-mount offers compatibility with a wide range of microscope objectives and specialized lenses for diverse experimental setups.

Problem Solved

Capturing high-quality, detailed monochrome images for analysis in scientific research and microscopy, where precise image data and flexible lens options are essential.

Monochrome imagingMicroscopyScientific researchImage analysisC-mount compatibilityHigh pixel depth
