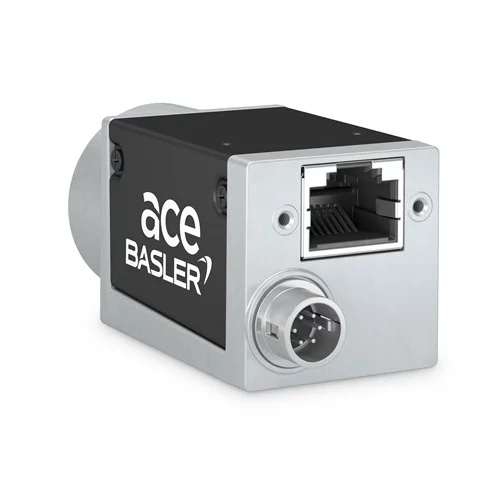

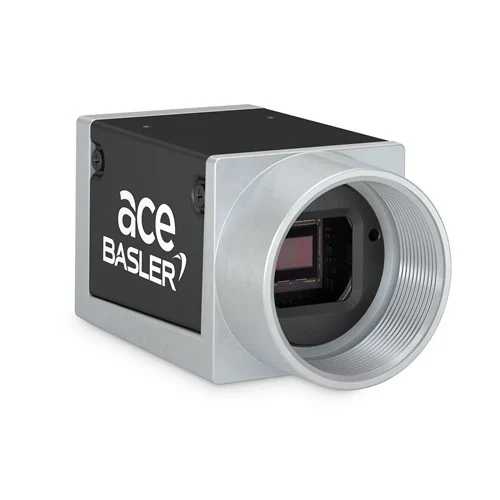

Basler acA1300-75gm Monochrome GigE Industrial Camera

Technical Overview

Compact 1.3 MP monochrome GigE camera with global shutter, 88 fps, and PoE.

Key Features

1.3 MP resolution (1280 x 1024 pixels) at 88 fps.
onsemi PYTHON 1300 CMOS global shutter sensor for distortion-free images of fast-moving objects.
GigE interface with Power over Ethernet (PoE) for single-cable operation.
Compact 42 x 29 x 29 mm housing, suitable for space-constrained applications.
Includes Basler pylon SDK Software and Driver for easy integration.
C-Mount lens interface for compatibility with a wide range of lenses.
Flexible power options: PoE (IEEE 802.3af) or 12-24 VDC via I/O connector.
Digital I/O lines (1 opto-coupled input, 1 opto-coupled output, 1 general purpose I/O) for external synchronization and control.
IP30 rating for protection against solid objects larger than 2.5 mm.

Technical Specification Matrix

Parameter	Value
Resolution (H x V)	1280 x 1024 pixels
Resolution (Megapixels)	1.3 MP
Frame Rate	88 fps
Sensor Type	onsemi PYTHON 1300 Progressive Scan CMOS
Shutter Type	Global Shutter
Sensor Format	1/2"
Pixel Size (H x V)	4.8 µm x 4.8 µm
Interface	GigE (Gigabit Ethernet)
Power Supply	PoE (IEEE 802.3af) or 12-24 VDC
Operating Voltage Range (I/O)	10.8 VDC to 30 VDC (Absolute Max)
Power Consumption (PoE)	≈3.1 W (typical), ≈3.3 W (max)
Power Consumption (12-24 VDC)	≈2.7 W (typical), ≈2.9 W (max)
Operating Temperature	0 to +50 °C
Storage Temperature	-20 to +80 °C
Lens Mount	C-Mount
Digital Input Lines	1 (opto-coupled)
Digital Output Lines	1 (opto-coupled)
General Purpose I/O (GPIO) Lines	1
GPIO Connector Type	6-pin Hirose (HR10)
Conformity	CE, EAC, UKCA, UL Listed, FCC, GenICam, GigE Vision, IP30, IEEE 802.3af (PoE), REACH, KC
IP Rating	IP30
Physical Weight (kg)	0.09
Dimensions L x W x H (cm)	4.2 x 2.9 x 2.9

Industrial Applications

1. High-Speed Quality Control on Production Lines

The Basler acA1300-75gm's 88 fps frame rate and 1.3 MP global shutter sensor allow for rapid acquisition of high-resolution, distortion-free images of products moving on a conveyor belt. Its compact size (42 x 29 x 29 mm) enables easy integration into existing machinery, performing tasks like defect detection or label verification.

Problem Solved

Ensures consistent product quality at high throughput, identifying defects or misalignments in real-time that would be missed by slower or rolling shutter cameras.

Machine VisionAutomated Optical Inspection (AOI)Defect DetectionQuality ControlHigh-Speed ImagingGlobal ShutterThroughputIndustrial Automation

2. Robotics and Pick-and-Place Applications

The camera's compact dimensions (42 x 29 x 29 mm) and GigE PoE interface make it ideal for mounting on robotic arms or within tight spaces for guiding robotic grippers. The global shutter provides precise positional data for moving objects, crucial for accurate pick-and-place operations.

Problem Solved

Provides accurate and timely visual feedback for robots, improving precision and speed in material handling and assembly tasks where space is limited and objects are in motion.

RoboticsRobot GuidancePick-and-PlaceMachine VisionCompact Form FactorPoEGlobal ShutterPositional Accuracy

3. Industrial Metrology and Measurement

The 1.3 MP resolution with 4.8 µm pixel size offers sufficient detail for precise measurement and verification of component dimensions in manufacturing environments. The GigE interface allows for long cable runs, suitable for distributed measurement stations, and the IP30 rating offers basic protection against solid objects in industrial settings.

Problem Solved

Automates precise dimensional measurement, reducing human error and increasing the speed of inspection for critical components in environments requiring a degree of environmental protection.

MetrologyDimensional InspectionQuality AssuranceAutomated MeasurementHigh ResolutionGigE VisionIP30
