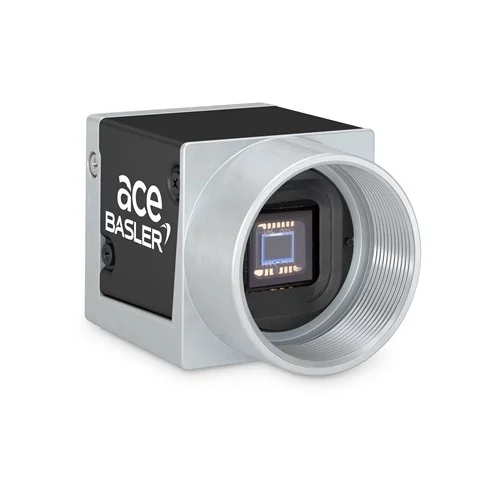

Basler acA1300-200um Industrial USB 3.0 Monochrome Camera

Technical Overview

1.3MP USB 3.0 monochrome camera with global shutter, 203 fps, and compact 29.3x29x29mm housing for industrial use.

Key Features

High-speed USB 3.0 Interface
Ultra-Small Form Factor (29.3 x 29 x 29 mm)
Fully USB3 Vision Compliant
Global Shutter CMOS sensor (ON Semiconductor PYTHON 1300)
1.3 MP (1280 x 1024) resolution
Frame rates up to 203 fps
Monochrome output
C-Mount lens interface
Screw-locking USB 3.0 ports for ruggedness
Includes Basler Pylon SDK software and driver
Hardware Trigger (GPIO) or Free-Run synchronization
Programmable exposure control via camera API
IP30 rating

Technical Specification Matrix

Parameter	Value
Resolution (H x V pixels)	1280 x 1024
Resolution (Megapixels)	1.3 MP
Sensor Type	ON Semiconductor PYTHON 1300 Progressive Scan CMOS
Sensor Format	1/2"
Pixel Size (H x V)	4.8 x 4.8 µm
Frame Rate	203 fps (at fast sensor readout mode)
Shutter Type	Global Shutter
Pixel Depth	10 bit
Interface	USB 3.0
Power Supply	Power over USB (5 VDC nominal operating voltage)
Power Consumption (typical)	2.8 W
Operating Temperature	0 to +50 °C
Lens Mount	C-Mount
Digital Input	1
Digital Output	1
General Purpose I/O (GPIO)	2
IP Rating	IP30
Physical Weight (kg)	0.08
Dimensions L x W x H (cm)	2.93 x 2.9 x 2.9

Industrial Applications

1. High-Speed Industrial Quality Control

The Basler acA1300-200um camera can be integrated into automated production lines for rapid defect detection and quality inspection of fast-moving objects. Its high frame rate (203 fps) and global shutter are crucial for capturing clear images without motion blur.

Problem Solved

Ensures consistent product quality and identifies manufacturing defects in high-volume production, reducing waste and improving efficiency.

203 fpsGlobal Shutter1.3 MPUSB 3.0Industrial AutomationDefect Detection

2. Precision Robotics Guidance and Positioning

This camera is suitable for providing visual feedback to industrial robots for precise object manipulation, pick-and-place operations, and accurate positioning tasks. Its compact size (29.3 x 29 x 29 mm) allows for flexible mounting on robot arms.

Problem Solved

Enables robots to accurately locate and interact with objects, enhancing precision and reliability in complex assembly or handling processes.

1280x1024 resolutionCompact (29.3x29x29mm)C-MountUSB 3.0RoboticsMachine Vision

3. Microscopy and Scientific Imaging

The monochrome output, 10-bit pixel depth, and 1.3 MP resolution make this camera ideal for scientific imaging applications such as microscopy, where detailed, high-contrast images of samples are required for analysis and documentation.

Problem Solved

Provides high-quality digital images for detailed observation and analysis in scientific research and medical diagnostics, replacing less efficient analog or lower-resolution digital methods.

Monochrome10 bit Pixel Depth1.3 MP4.8 µm Pixel SizeMicroscopyScientific Imaging
