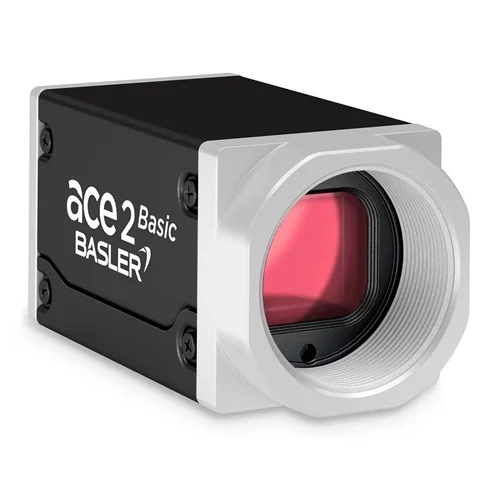

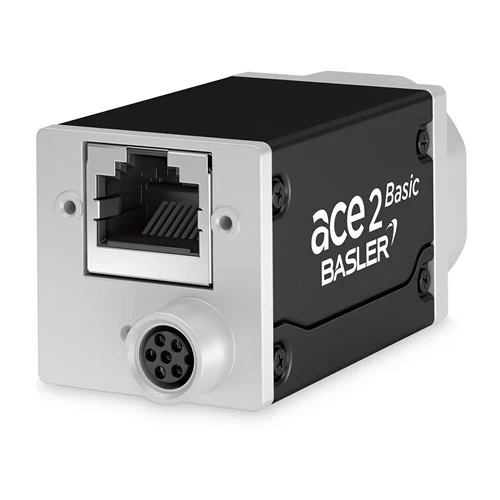

Basler a2A1920-51gcBAS GigE Color Camera

Technical Overview

2.3 MP (1920x1200) GigE color camera with global shutter, 51 fps, C-mount, and IP30 protection.

Key Features

Sony IMX392 CMOS sensor with Global Shutter.
2.3 MP resolution (1920 x 1200 pixels) at 51 fps.
Compact housing (29 mm x 29 mm footprint).
GigE interface with Power over Ethernet (PoE).
C-Mount lens compatibility.
8/10/12-bit pixel depth.
Operating temperature range of -10 °C to +60 °C.
IP30 protection class.
Programmable exposure control (hardware trigger, software trigger, free-run).
Integrated status LED and removable IR cut filter.
Conforms to GenICam and GigE Vision 2.0 standards.

Technical Specification Matrix

Parameter	Value
Resolution (H x V)	1920 x 1200 pixels
Megapixels	2.3 MP
Frame Rate	51 fps
Sensor Type	Sony IMX392 CMOS Progressive Scan Global Shutter
Sensor Format	1/2.3"
Pixel Size (H x V)	3.45 µm x 3.45 µm
Interface	GigE (PoE)
Lens Mount	C-Mount
Pixel Bit Depth	8/10/12 Bit
Power Supply	PoE (IEEE 802.3af) or 12-24 VDC
Power Consumption (typical)	3.1 W
Operating Temperature	-10 °C to +60 °C
Protection Class	IP30
Digital Input	1
General Purpose I/O	2
Physical Weight (kg)	0.1
Dimensions L x W x H (cm)	5.55 x 2.9 x 2.9

Industrial Applications

1. High-Speed Quality Control on Production Lines

The camera's 2.3 MP resolution and 51 fps frame rate, combined with a global shutter and GigE interface, enable rapid and precise inspection of fast-moving products on automated assembly lines. PoE simplifies integration.

Problem Solved

Detects subtle defects or misalignments in products moving at high speeds, ensuring consistent product quality and preventing costly recalls or rework.

Machine VisionAutomated InspectionGlobal ShutterHigh Frame RateGigE VisionQuality Control

2. Robotics and Pick-and-Place Systems

With its compact size (2.9 x 2.9 x 5.55 cm), C-mount, and robust IP30 housing, the camera is well-suited for mounting on robotic arms or in tight industrial spaces, providing real-time visual feedback for object recognition and manipulation. The 12-24VDC or PoE power options offer flexibility.

Problem Solved

Provides accurate object localization and orientation data for robotic systems, improving precision and speed in tasks like sorting, assembly, and material handling.

Robotic GuidanceObject RecognitionIndustrial RoboticsCompact DesignC-MountReal-Time Vision

3. Process Monitoring in Controlled Industrial Environments

The camera's -10 to +60 °C operating temperature range and IP30 rating allow it to function reliably in typical factory conditions, monitoring critical processes such as material flow, fluid levels, or machinery operation, especially where a compact, high-resolution color camera is needed.

Problem Solved

Offers continuous visual oversight of manufacturing or chemical processes, enabling early detection of anomalies, preventing downtime, and optimizing operational efficiency.

Industrial MonitoringProcess AutomationRemote SurveillanceEnvironmental ToleranceColor ImagingReliability
