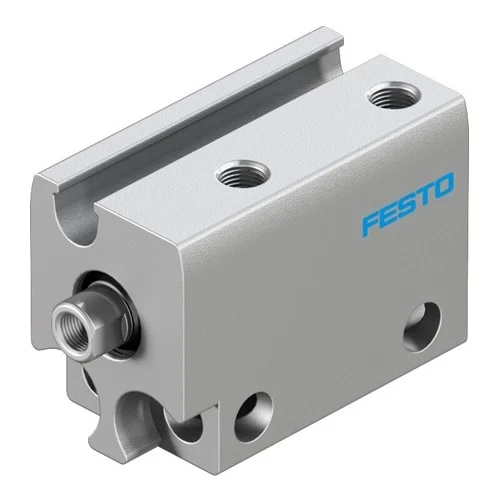

Name: ADN-S-6-5-I-A Festo Compact cylinder - INOSAKI
SKU: Festo-5173732
Price: 27.04 USD
Availability: InStock

Technical Overview

A high-precision double-acting compact pneumatic cylinder with a 6 mm piston diameter and 5 mm stroke. Designed for space-saving automation, it features a female thread piston-rod end and is prepared for position detection via proximity sensors. This cylinder is RoHS-compliant, offers CRC 1 corrosion resistance, and is certified for Cleanroom Class 5 environments according to ISO 14644-1.

Key Features

Double-acting mode of operation
Position detection via proximity switch
Compact design with female thread piston-rod end
Cleanroom suitability according to ISO 14644-1 Class 5
Low corrosion stress (CRC 1)
VDMA24364-B2-L LABS (PWIS) conformity
Optional mounting position
RoHS-compliant materials

Technical Specification Matrix

Parameter	Value
Stroke	5 mm
Piston diameter	6 mm
Cushioning	No cushioning
Mounting position	optional
Mode of operation	Double-acting
Piston-rod end	Female thread
Design	Piston Piston rod
Position detection	Via proximity switch
Symbol	00991216
Variants	Piston rod at one end
Operating pressure (MPa)	0.2 MPa ... 0.8 MPa
Operating pressure (bar)	2 bar ... 8 bar
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L
Cleanroom suitability	Class 5 according to ISO 14644-1
Ambient temperature	-10 °C ... 60 °C
Impact energy in end positions	0.006 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke	9.4 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	17 N
Moving mass	1.6 g
Product weight	10.9 g
Type of mounting	With through-hole
Pneumatic connection	M3
Note on materials	RoHS-compliant
Material cover	Wrought aluminium alloy
Material dynamic seals	NBR TPE-U(PU)
Material housing	Anodised
Material piston rod	High-alloy stainless steel

Industrial Applications

1. Semiconductor Wafer Micro-Positioning

Utilizing the highly compact cylinder in a cleanroom environment to gently align and hold delicate silicon wafers during lithography or automated inspection processes.

Problem Solved

Standard pneumatic actuators introduce particulate contamination and are too bulky for micro-electronic fixtures, often applying excessive force that risks damaging brittle silicon components.

Class 5 Cleanroom ISO 14644-117 N theoretical force5 mm stroke10.9 g product weightDouble-acting

2. Medical Device Micro-Fluidic Assembly

Deploying the ultra-compact pneumatic cylinder in medical manufacturing to precisely press-fit delicate micro-fluidic components in automated assembly cells.

Problem Solved

Medical assembly requires stringent cleanliness, highly precise micro-movements, and low force application to avoid shattering delicate polymer chips or introducing rust.

ISO 14644-1 Class 56 mm Piston diameterHigh-alloy stainless steel piston rod0.2 to 0.8 MPa operating pressureRoHS-compliant

3. Automated PCB Testing Fixtures

Using the compact cylinder in automated test jigs to actuate specialized testing probes onto densely packed printed circuit boards with reliable stroke detection.

Problem Solved

Test fixtures often lack space for actuation mechanisms and require precise stroke verification to ensure probe contact without over-stressing the PCB or surrounding miniature components.

Position detection via proximity switchM3 Pneumatic connection9.4 N return forceMoving mass 1.6 gPiston diameter 6 mm
