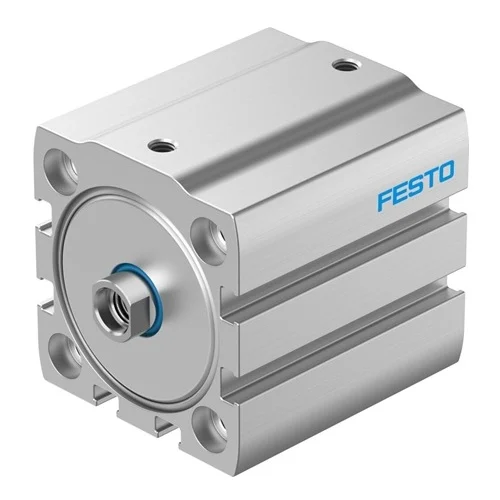

Name: ADN-S-40-40-I-P-A Festo Compact Cylinder - INOSAKI
SKU: Festo-5138613
Price: 57.72 USD
Availability: InStock

Technical Overview

The Festo ADN-S-40-40-I-P-A is a high-performance double-acting compact cylinder designed for industrial automation applications where space is limited. Featuring a 40mm piston diameter and 40mm stroke, this cylinder utilizes elastic cushioning rings at both ends to mitigate impact. It is constructed with an anodized wrought aluminum alloy housing and cover, combined with a high-alloy stainless steel piston rod, ensuring low corrosion stress (CRC 1). The unit is fully prepared for position detection via proximity switches and meets ISO 14644-1 Class 5 cleanroom standards.

Key Features

Double-acting mode of operation
Space-saving compact design
Elastic cushioning rings/plates at both ends
Female thread piston-rod end
Position detection via proximity switch
Low corrosion stress (CRC 1)
Cleanroom suitability Class 5 according to ISO 14644-1
RoHS-compliant materials
Optional mounting positions

Technical Specification Matrix

Parameter	Value
Stroke	40 mm
Piston diameter	40 mm
Cushioning	Elastic cushioning rings/plates at both ends
Mounting position	optional
Mode of operation	Double-acting
Piston-rod end	Female thread
Design	Piston Piston rod
Position detection	Via proximity switch
Symbol	00991217
Variants	Piston rod at one end
Operating pressure (MPa)	0.06 MPa ... 1 MPa
Operating pressure (bar)	0.6 bar ... 10 bar
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	CRC 1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L
Cleanroom suitability	Measured according to ISO 14644-14 Class 5 according to ISO 14644-1
Ambient temperature	0 °C ... 80 °C
Impact energy in end positions	0.7 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke	686 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	754 N
Moving mass for 0 mm stroke	62 g
Additional moving mass per 10 mm stroke	9 g
Basic weight for 0 mm stroke	304 g
Additional weight per 10 mm stroke	45 g
Type of mounting	With through-hole Via female thread With accessories
Pneumatic connection	M5
Note on materials	RoHS-compliant
Material cover	Anodised wrought aluminium alloy
Material dynamic seals	TPE-U(PU)
Material housing	Anodised wrought aluminium alloy
Material piston rod	High-alloy stainless steel

Industrial Applications

1. Cleanroom Wafer Transfer Mechanism

Utilizing the ISO Class 5 cleanroom rating and ultra-compact footprint, this cylinder actuates a wafer transfer tray in semiconductor manufacturing. The 40mm stroke provides precise tray positioning within confined airlock spaces while operating on compressed air to ISO 8573-1:2010 standards.

Problem Solved

Prevents particle contamination during wafer handling while delivering reliable double-acting pneumatic actuation in extremely space-constrained automated semiconductor equipment.

ISO 14644-14 Class 5 CleanroomSemiconductor Handling40mm StrokeCompact Pneumatic ActuatorISO 8573-1:2010 Compressed Air

2. High-Density Packaging Line Clamping

Integrated into a high-density automated cartoning machine, the cylinder clamps cardboard flaps prior to sealing. The 40mm piston generates 754 N of advance force at 6 bar to ensure a secure hold, while proximity switch compatibility (-A) allows precise sequence timing via the machine's PLC.

Problem Solved

Overcomes severe dimensional limitations in high-speed packaging machinery without sacrificing the high clamping force required for reliable carton sealing.

754 N Advance ForceProximity Switch DetectionAutomated Packaging0.6 to 10 bar Operating PressureDouble-acting

3. Electronics Housing Press-Fit Station

Applied in an automated desktop assembly station, this cylinder uses its female thread (-I) to mount a precision press head. The cylinder presses connectors into PCB housings over a 40mm stroke, using elastic cushioning rings at both ends to safely absorb up to 0.7 J of impact energy.

Problem Solved

Eliminates mechanical shock damage to delicate printed circuit board assemblies during component press-fitting by utilizing integrated elastic cushioning to dampen end-of-stroke impacts.

Female Thread Piston-rodElastic Cushioning0.7 J Impact EnergyElectronics AssemblyLow Corrosion Stress CRC 1
