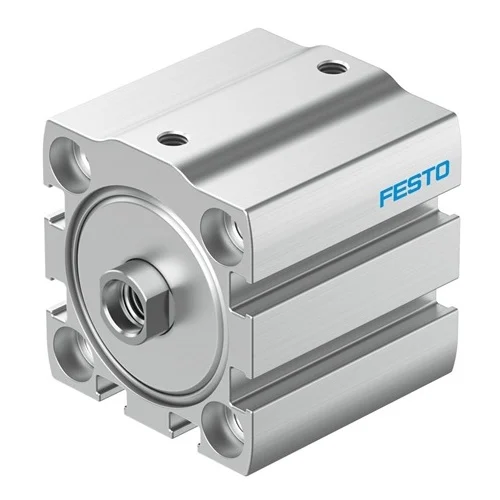

Name: ADN-S-32-15-I-P Festo Compact Cylinder - INOSAKI
SKU: Festo-8076380
Price: 36.92 USD
Availability: InStock

Technical Overview

The Festo ADN-S-32-15-I-P is a high-performance double-acting compact pneumatic cylinder designed for space-constrained automation applications. Featuring a 32mm piston diameter and 15mm stroke length, this actuator utilizes elastic cushioning rings at both ends to manage impact energy. Built with an anodized wrought aluminium alloy housing and a high-alloy stainless steel piston rod, it provides reliable performance with low corrosion stress (CRC 1) and is certified for Class 5 cleanroom suitability according to ISO 14644-1.

Key Features

Double-acting operation for versatile movement
Elastic cushioning rings/plates at both ends to reduce impact energy
Piston rod with female thread for flexible mounting
Compact design suitable for limited installation space
Cleanroom suitability ISO Class 5
RoHS-compliant materials
Corrosion resistance class CRC 1 for low corrosion stress

Technical Specification Matrix

Parameter	Value
Stroke	15 mm
Piston diameter	32 mm
Cushioning	Elastic cushioning rings/plates at both ends
Mounting position	optional
Mode of operation	Double-acting
Piston-rod end	Female thread
Design	Piston Piston rod
Symbol	00991227
Variants	Piston rod at one end
Operating pressure MPa	0.06 MPa ... 1 MPa
Operating pressure bar	0.6 bar ... 10 bar
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium	Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC	CRC 1 - Low corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L
Cleanroom suitability	Class 5 according to ISO 14644-1
Ambient temperature	0 °C ... 80 °C
Impact energy in end positions	0.26 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke	415 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke	483 N
Moving mass for 0 mm stroke	31 g
Additional moving mass per 10 mm stroke	9 g
Basic weight for 0 mm stroke	107 g
Additional weight per 10 mm stroke	36 g
Type of mounting	With through-hole Via female thread With accessories
Pneumatic connection	M5
Note on materials	RoHS-compliant
Material cover	Anodised wrought aluminium alloy
Material dynamic seals	NBR
Material housing	Anodised wrought aluminium alloy
Material piston rod	High-alloy stainless steel

Industrial Applications

1. Semiconductor Wafer Tray Clamping

Utilizing the Festo ADN-S-32-15-I-P cylinder to securely hold semiconductor wafer trays in place during automated optical inspection. The cylinder's ISO Class 5 cleanroom certification and ultra-compact 15 mm stroke make it highly suited for confined, ultra-clean environments without introducing contaminants.

Problem Solved

Eliminates particulate contamination risks during automated clamping in semiconductor manufacturing while providing a reliable 483 N holding force in highly restricted machine footprints.

Cleanroom Class 5 to ISO 14644-115 mm Stroke483 N Advance ForceDouble-acting

2. PCB Assembly Press-Fit Station

Employing the compact cylinder in an automated printed circuit board (PCB) assembly line to press-fit delicate electronic connectors or perform functional testing. The built-in elastic cushioning at both ends mitigates the 0.26 J impact energy, preventing component cracking upon contact.

Problem Solved

Prevents mechanical shock damage to fragile electronic components during automated assembly by utilizing elastic cushioning and precise short-stroke actuation within a 0.6 to 10 bar pressure range.

Elastic cushioning rings/plates0.26 J Impact energy32 mm Piston diameterFemale thread piston-rod end

3. High-Speed Packaging Defect Ejection

Integrating the double-acting pneumatic cylinder into a dense packaging conveyor system to rapidly eject non-compliant or underweight pharmaceutical boxes. Its compact anodised aluminium housing allows it to be mounted in extremely tight spaces directly beside the sorting belt.

Problem Solved

Overcomes space constraint issues on high-density packaging lines, ensuring reliable and rapid lateral ejection with a 415 N return stroke and 483 N advance stroke without requiring a large installation footprint.

Double-acting mode0.6 bar ... 10 bar Operating pressureAnodised wrought aluminium alloy housingOptional mounting position
