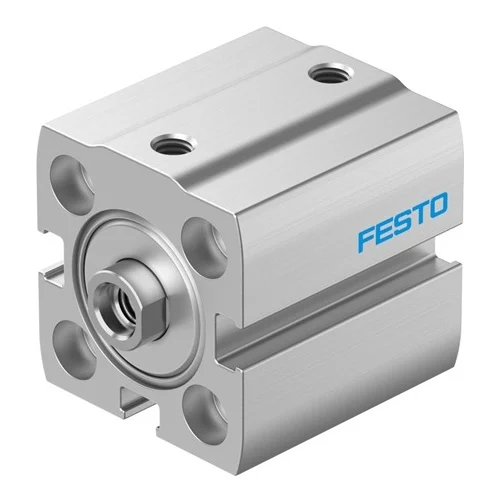

Durability testing requires repetitive micro-movements in extremely tight spatial constraints. The short 10 mm stroke and ultra-compact ADN-S footprint allow multiple cylinders to be mounted side-by-side in high-density arrays. The 0.6 to 10 bar operating pressure allows precise down-regulation to achieve exact micro-forces, while elastic cushioning rings at both ends prevent mechanical shock from damaging the tested circuit boards. The Class 5 cleanroom rating prevents dust from interfering with open electronics.

Wafers must be firmly locked for high-resolution imaging without introducing particle contamination, vibration, or using bulky actuators that block optical pathways. The ISO 14644-1 Class 5 cleanroom suitability ensures zero particulate shedding onto delicate substrates. Position detection via proximity switch ensures the main PLC verifies clamp engagement before scanning. The double-acting operation guarantees positive locking, and the M5 pneumatic connection with a low 24g moving mass enables rapid, vibration-free actuation.

Medical assembly demands strict hygiene, compact tooling, and highly controlled force to assemble fragile plastics without cracking them. The 20 mm piston delivers a theoretical advance force of 188 N at 6 bar, providing the exact low-impact force needed. The female thread piston-rod end allows for direct, secure attachment of custom pressing tips. Furthermore, the 0 °C to 80 °C ambient temperature capability ensures reliable operation when mounted near warm sealing stations, while the high-alloy stainless steel rod resists degradation.
