1. Cleanroom Semiconductor Wafer Cassette Locking Mechanism

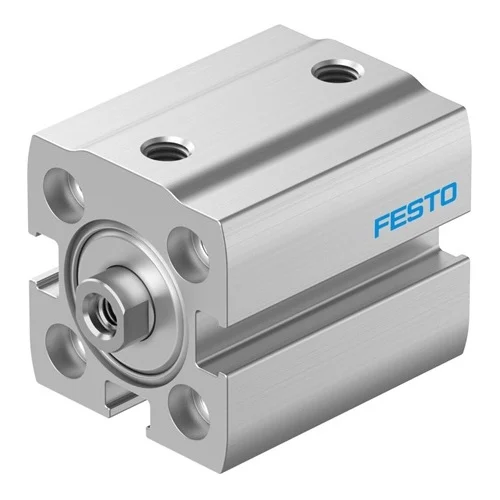

Utilizing the Festo ADN-S compact cylinder within an automated material handling system to securely lock semiconductor wafer cassettes in place before robotic extraction. The cylinder's ultra-compact footprint and stringent cleanroom compliance make it ideal for integration into tight, highly controlled wafer processing environments.
Problem SolvedPrevents micro-vibrations and cassette shifting during high-precision wafer transfers without introducing particulate contamination, satisfying strict ISO Class 5 cleanroom environmental requirements.
Class 5 according to ISO 14644-115 mm Stroke121 N theoretical force advance strokePosition detection via proximity switch
2. Medical Device Cap Press-Fitting Station
Actuating a small press-fit mechanism in an automated medical syringe or vial assembly line. The double-acting cylinder drives a tooling head to push plastic caps onto containers, utilizing the precise 15 mm stroke and controlled 121 N force to ensure proper seating without over-compressing or cracking the components.
Problem SolvedSolves the challenge of applying consistent, localized force in a confined sterile space, while the elastic cushioning safely absorbs impact energy to prevent damage to fragile medical-grade plastics.
Double-actingElastic cushioning rings/plates0.15 J Impact energy in end positionsCleanroom suitability Class 5
3. High-Speed End-of-Arm Tooling (EOAT) Component Ejector
Integrated directly into a robotic gripper for high-speed pick-and-place operations involving small electronic components or PCBs. The cylinder functions as a rapid pneumatic ejector pin to reliably push components out of the gripper jaws and place them exactly at the target location upon release.
Problem SolvedOvercomes strict payload limitations on high-speed delta and SCARA robots by providing reliable 90 N return and 121 N advance forces in an ultra-lightweight form factor, minimizing end-of-arm inertia and cycle times.
16 mm Piston diameterMoving mass for 0 mm stroke 11 gBasic weight for 0 mm stroke 42 gM5 Pneumatic connection
