U3-34F0CP Rev.2.3 IDS USB 3.0 Industrial Camera

Technical Overview

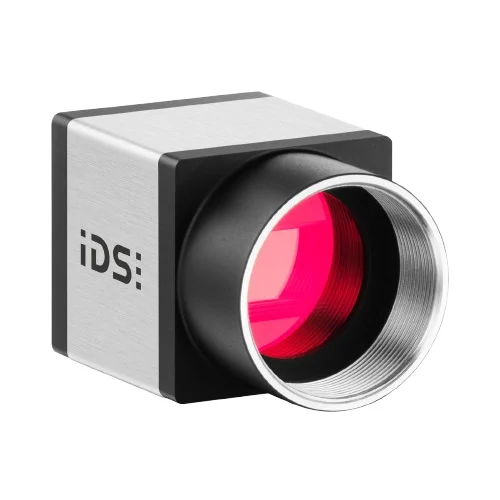

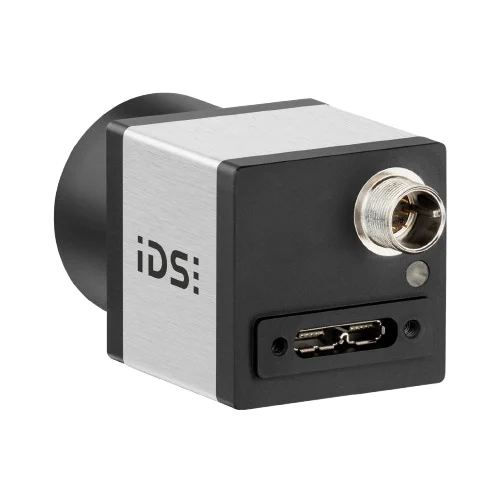

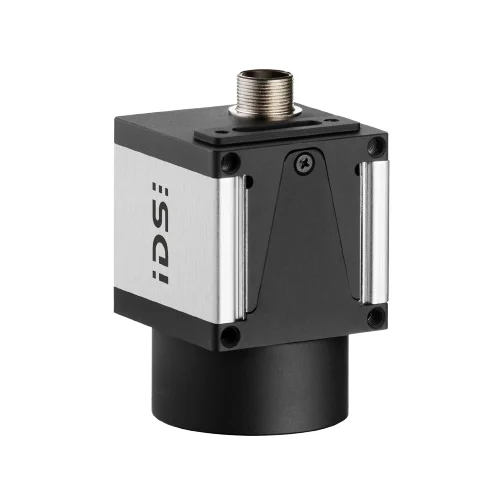

The U3-34F0CP Rev.2.3 is a high-performance USB 3.0 industrial camera equipped with a 5.11 MP Rolling Shutter sensor based on Sony's Starvis 2 technology. The 1/3" Sony IMX675 sensor delivers a resolution of 2608 x 1960 pixels, achieving 75.4 fps with exceptional sensitivity in the NIR range and low image noise. Housed in a robust 29 x 29 x 29 mm metal chassis, it features an integrated anti-reflection coating to eliminate flare. This camera is designed for demanding industrial applications including medical technology, quality assurance, and intelligent transport systems.

Key Features

5.11 MP Rolling Shutter sensor
Sony Starvis 2 technology
75.4 fps at max resolution
USB 3 5.0 Gbps interface
Compact 29 x 29 x 29 mm metal housing
Integrated anti-reflection coating
NIR (near-infrared) sensitivity
IP30 Protection rating
USB3 Vision standard support
3-year warranty
Made in Germany

Technical Specification Matrix

Parameter	Value
Item number (Color)	1012591
Item number (Monochrome)	1012593
Camera family	CP
Interface	USB 3
Interface-Speed	5.00 Gbps
Sensor type	CMOS
Sensor manufacturer	Sony
Sensor model	IMX675
Frame rate @ resolution max.	75.4 fps
Resolution (h x v)	2608 x 1960
Resolution	5.11 MP
Optical Area	5.216 mm x 3.92 mm
Shutter	Rolling Shutter
Optical class	1/3"
Pixel size	2.00 µm
IP code	IP30
Product Life Cycle	In development
Dimensions	29 x 29 x 29 mm
Housing material	Metal
Image Acquisition: Freerun	Yes
Image Acquisition: Software trigger	Yes
Image Acquisition: Hardware trigger	Yes
Image Acquisition: Trigger controlled exposure	Yes
Image Acquisition: Denoiser	Yes
Image Acquisition: Long exposure	Yes
Image Acquisition: Line scan	Yes
Image Acquisition: Global start	Yes
Flashing: PWM flashing	Yes
Mirror/flip	X/Y
Pixel formats (Color)	BayerRG8, BayerRG10p, BayerRG12, BayerRG12p, BayerRG10
Pixel formats (Monochrome)	Mono8, Mono10, Mono10p, Mono12, Mono12p
Binning (Sensor)	2x2
Binning (FPGA)	Yes
Decimation (Sensor)	Yes
Decimation (FPGA)	Yes
Warranty	3 years
Certifications	CE, FCC, ChinaRoHS EFUP 25, UKCA

Industrial Applications

1. High-Speed Automated Optical Inspection (AOI) for Electronics

Integrating the U3-34F0CP Rev.2.3 camera into an inline AOI system to perform rapid defect detection on printed circuit boards (PCBs). The high-speed USB 3 interface streams raw Bayer or Mono data seamlessly at 5.00 Gbps to the vision controller.

Problem Solved

Detecting microscopic soldering and placement defects on fast-moving production lines without bottlenecking throughput, leveraging the camera's 5.11 MP resolution, 75.4 fps frame rate, and hardware trigger for precise strobe synchronization.

5.11 MP75.4 fpsHardware triggerUSB 35.00 Gbps

2. Fluorescence Microscopy in Laboratory Diagnostics

Utilizing the monochrome variant (Part 1012593) mounted on diagnostic microscopes for biomedical imaging. The Sony IMX675 sensor's excellent sensitivity captures highly detailed cellular structures.

Problem Solved

Capturing faint fluorescence emissions over extended periods without excessive noise degrading the image quality, utilizing the camera's built-in Denoiser and Long Exposure image acquisition features.

Long exposureDenoiserSony IMX6752.00 µm pixel sizeMono12p

3. End-of-Arm Vision for Pick-and-Place Robotics

Mounting the ultra-compact camera directly onto robotic manipulators to guide the sorting and assembly of small mechanical components on a moving conveyor belt.

Problem Solved

Adding high-resolution vision to robotic arms that have severe space and weight constraints, enabled by the 29 x 29 x 29 mm lightweight metal housing and the Global Start feature to minimize rolling shutter distortion on moving parts.

29 x 29 x 29 mmGlobal startMetal housingIP30Software trigger
