1. Industrial Control Panel Assembly for Small to Medium Automation Systems

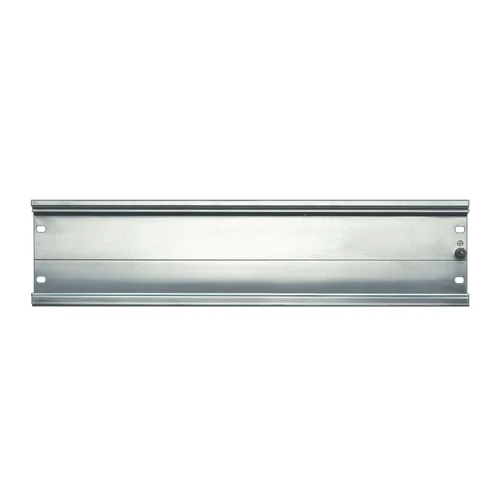

This mounting rail provides a standardized and robust foundation for assembling SIMATIC S7-300 PLCs, I/O modules, and communication processors within industrial control cabinets. Its 530mm length offers sufficient space for a typical S7-300 CPU and several peripheral modules, facilitating organized wiring and efficient system integration.
Problem SolvedSolves the problem of securely mounting sensitive electronic control components, ensuring mechanical stability and proper electrical grounding within a confined industrial enclosure, crucial for reliable automation system operation.
Control cabinetPLCS7-300module mountingDIN railindustrial automationelectrical grounding
2. Modular Machine Integration for Distributed Control Systems
In a modular machine design, where subsections of a machine have their own localized control, this 530mm rail can house a segment of an S7-300 distributed I/O system or a smaller standalone S7-300 controller. Its compact yet functional size allows for integration into tight spaces directly on or within machine sub-assemblies.
Problem SolvedEnables flexible and standardized mounting of S7-300 components for distributed control architectures, reducing wiring complexity and improving serviceability in modular machinery by providing a secure, pre-defined mounting footprint.
Distributed I/Omodular machinemachine controlS7-300industrial enclosurespace optimization
3. Test Bench & Prototype Development for S7-300 Systems
For engineers developing and testing new S7-300 configurations or programming logic, this 530mm mounting rail serves as an ideal base for a test bench. It allows quick and secure attachment and detachment of S7-300 CPUs, power supplies, and various I/O cards, enabling rapid prototyping and troubleshooting in a controlled environment.
Problem SolvedProvides a stable and organized platform for temporary or experimental setups, facilitating easy module changes and wiring adjustments during the development and testing phases of S7-300-based control systems, preventing damage from loose components.
Prototypingtest benchS7-300 developmentmodularitysystem integrationrapid assembly
