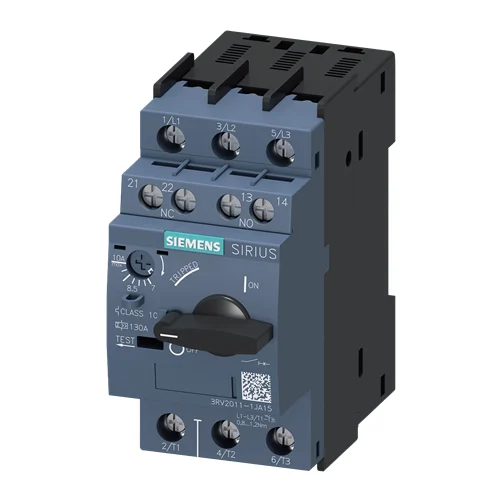

Name: Siemens 3RV2011-1JA15 Motor Protection Circuit Breaker - INOSAKI
SKU: Siemens-3RV2011-1JA15
Price: 128.11 USD
Availability: InStock

Technical Overview

3-pole, Class 10 motor protection circuit breaker with 7-10A thermal release for 690V AC systems.

Key Features

Suitable for switching and protecting three-phase motors up to 7.5 kW at 690 VAC.
Adjustable thermal overload release from 7 to 10 A and instantaneous short-circuit release at 130 A.
Compact, current-limiting design.
Screw and snap-on mounting onto 35 mm standard DIN rail.
Equipped with 1 NO + 1 NC transverse auxiliary contacts.
IP20 protection class on the front and terminals.
Minimized energy losses through optimized bimetal trip units.
Mechanical and electrical service life of 100,000 operating cycles.

Technical Specification Matrix

Parameter	Value
Rated Insulation Voltage	690 V AC
Thermal Overload Release Current Range	7 to 10 A
Short-Circuit Release Current	130 A
Number of Poles	3
Trip Class	Class 10
Interrupt Capacity	100 kA at 240/400 VAC, 42 kA at 500 VAC, 6 kA at 690 VAC
IP Rating	IP20 (on front and terminals)
Mounting Type	DIN Rail (35 mm), Screw and Snap-on
Auxiliary Contacts	1 NO + 1 NC (Transverse)
Operating Temperature	-20 to +60 °C
Mechanical Service Life	100,000 operating cycles
Electrical Service Life	100,000 operating cycles
Installation Altitude	Up to 2,000 m maximum
Physical Weight (kg)	0.34518
Dimensions L x W x H (cm)	10.2 x 4.9 x 10.2

Industrial Applications

1. Overload and Short-Circuit Protection for Industrial Water Pumps

This circuit breaker is ideal for protecting small to medium-sized industrial water pumps (e.g., up to 7.5 kW) that operate on a three-phase AC supply up to 690V. Its adjustable thermal release (7-10A) precisely matches the pump motor's full load current, preventing damage from sustained overloads, while the 130A short-circuit release provides immediate disconnection during fault conditions.

Problem Solved

Prevents motor burnout and system damage in industrial pumping stations due to overcurrents and short circuits, ensuring continuous and safe water circulation.

Motor protectionthree-phase motorindustrial pumpoverloadshort-circuitthermal-magnetic trip690V7-10A

2. Integrated Motor Starter and Protection for Conveyor Belts

The 3RV2011-1JA15 can serve as a compact motor starter and protective device for conveyor belt systems in manufacturing or logistics. The 7-10A adjustable range covers common conveyor motor ratings, and the integrated thermal and magnetic protection ensures reliable operation and safety, preventing motor damage from jams or mechanical overloads. The DIN rail mounting simplifies installation within control panels.

Problem Solved

Offers efficient starting and robust protection for conveyor motors, safeguarding against operational disruptions and equipment failure caused by electrical faults or mechanical stress.

Conveyor systemmotor startermotor protectionDIN railthree-phaseoverloadshort-circuitindustrial automation7-10A

3. Overcurrent Protection for Commercial HVAC Fan Motors

This circuit breaker is well-suited for protecting the fan motors in commercial HVAC (Heating, Ventilation, and Air Conditioning) systems. With its capacity to handle motors up to 7.5 kW and operation at up to 690V AC, it effectively protects against both thermal overloads from continuous operation or restricted airflow and immediate short circuits, ensuring system longevity and safety. The IP20 rating is suitable for enclosed control panels.

Problem Solved

Secures critical HVAC fan motors from electrical overloads and short circuits, preventing costly downtime and ensuring consistent climate control and air quality in commercial and industrial facilities.

HVACfan motormotor protectioncommercial buildingoverloadshort-circuitIP20690V AC
