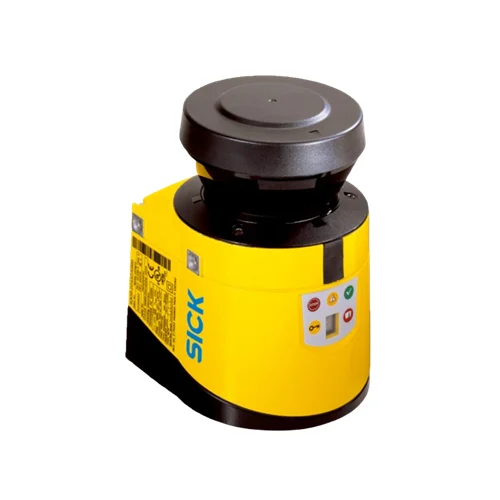

SICK 1026822 S30B-2011DA 2 m Professional Safety Laser Scanner

USD 4,492.02

270° indoor scanner with 2 m protective range, eight triple field sets, OSSD pair, static/dynamic field switching and EFI; system plug excluded.

SKU SICK-1026822 Category
SICK S300

SICK S30B-2011DA 2 m Professional Safety Laser Scanner

BrandSICK
Model IdentifierS30B-2011DA
Official Part Number1026822

Technical Overview

The SICK S30B-2011DA is an indoor S300 Professional safety laser scanner supplied without its system plug. Its 270° scan covers a 2 m protective range; the separate warning range is 8 m at 15% reflectivity, and distance measurement extends to 30 m. Eight triple field sets provide 24 fields, with up to 32 monitoring cases under the specified input conditions. Configurable resolution, multiple sampling, restart interlock, external device monitoring and contour reference support the selected safeguarding arrangement. One OSSD pair connects to external safety control, while EFI enables safe device communication and RS-422 supplies measured data. The Type 3, SIL 2, Category 3/PL d scanner operates on 24 V DC nominal power in an IP65 aluminum housing.

Indoor S300 Professional scanner with 2 m protective range, 270° scanning, eight triple field sets, one OSSD pair and EFI; system plug excluded.

Key Features

  • S300 Professional sensor without system plug; indoor applications
  • 2 m protective range; separate 8 m warning range at 15% reflectivity
  • 270° scanning; 0.5° angular resolution; configurable 30/40/50/70 mm resolution
  • Eight triple field sets and 24 fields
  • Up to 32 monitoring cases using additional EFI static input or dynamic inputs; otherwise eight
  • Static and dynamic protective-field switching; contour as reference
  • Restart interlock, external device monitoring and configurable multiple sampling
  • One OSSD pair, 2 ×250 mA; five programmable universal I/Os
  • EFI safe communication; RS-422 measured data; RS-232 CDS configuration
  • Type 3, SIL 2, Category 3/PL d; 24 V DC nominal; IP65

Switch configured protective fields for changing indoor machine or electric-vehicle conditions and provide an OSSD pair to external safety control.

Technical Specification Matrix

ParameterValue
Product versionS300 Professional safety laser scanner
Delivery configurationSensor without system plug; plug supplied separately
Application environmentIndoor industrial applications
Protective field range2 m
Warning field range8 m at 15% reflectivity
Distance measuring range30 m
Field configurationEight triple field sets; 24 fields
Monitoring cases32 with an additional static input via EFI or using dynamic inputs; otherwise eight
Scanning angle270°
Configurable resolution30 / 40 / 50 / 70 mm
Angular resolution0.5°
Response time80 ms, depending on basic response time and multiple sampling
Protective field supplement100 mm
Multiple sampling2–16, configurable
Automatic reset delay2–60 s, configurable
Safety classificationType 3 to IEC 61496; SIL 2 to IEC 61508; Category 3 and PL d to EN ISO 13849
PFHD8.0 ×10⁻⁸ per hour
Mission time20 years to EN ISO 13849
Fault safe stateAt least one OSSD in the OFF state
Safety and monitoring functionsRestart interlock; external device monitoring; multiple sampling; monitoring-case switching; static and dynamic protective-field switching; contour as reference
Configuration memoryIntegrated
OSSD outputsOne pair; 2 ×250 mA
Application diagnostic outputsThree programmable outputs, 3 ×100 mA; e.g. warning field, contamination or reset required
Universal I/OsFive, freely programmable; e.g. EDM input, reset input, contamination warning or reset required
EDM and reset inputsOne each; availability depends on universal-I/O configuration
Static control inputsThree (2+1); extra input only when reset and reset-required functions are unused
Static inputs with EFIFive in combination with an EFI device such as Flexi Soft or EFI gateway; otherwise three
Dynamic control inputsTwo incremental-encoder inputs; two static switching signals may instead be used dynamically
Standby inputOne
Configuration methodPC with CDS, Configuration and Diagnostic Software
Configuration and diagnostics interfaceRS-232 at 38.4 kBaud
Measured-data interfaceRS-422, ≤500 kBaud
Safe device communicationEFI, ≤500 kBaud; cable length ≤50 m; conductor cross-section 0.22 mm²
Connection arrangementSystem plug with or without connecting cable; not included with this sensor
Power supply24 V DC nominal; 16.8–30 V DC
Current consumption0.33 A at 24 V without output load; 1.7 A at 24 V including maximum output load
Protection classII to EN 50178 and EN 60950
Housing material and colorAluminum die cast; yellow RAL 1021
Optics coverPolycarbonate; outside scratch-resistant coating
IP ratingIP65 to EN 60529
Operating temperature−10 to +50 °C
Storage temperature−25 to +50 °C
Vibration resistanceIEC 60068-2-6, IEC 60068-2-64, IEC 60721-3-5, IEC TR 60721-4-5 and IEC 61496-3; Class 5M1 to IEC 60721-3-5
Shock resistanceIEC 60068-2-27, IEC 60721-3-5, IEC TR 60721-4-5 and IEC 61496-3; Class 5M1
Continuous shock50 m/s², 11 ms; 100 m/s², 16 ms
Light sourcePulsed laser diode, 905 nm
Laser classClass 1 to 21 CFR 1040.10 / 1040.11 and IEC 60825-1
Detectable remission factor1.8% to >1,000% with reflectors
Mounting threadsM5 ×7.5 mm, per laser-scanner drawing
Mobile application restrictionVehicles powered by an electric motor only
Speed-dependent field switchingProfessional variant uses connected incremental encoders to determine vehicle speed and switch configured protective fields
Scope of deliverySafety laser scanner; safety note; mounting instructions; Important notes adhesive label; system plug excluded
Physical Weight (kg)1.2

Industrial Applications

1. Monitoring a horizontal machine hazardous area

An indoor machine can use a horizontally mounted scanner to monitor a defined hazardous area and send a protective-field interruption to external safety control through its OSSD pair. The installed geometry and minimum distance account for machine stopping time, scanner response and supplements. The reset position provides a complete view of the hazardous area, and restart interlock coordinates the intended restart behavior.

Problem Solved

A configured area-presence condition supplies the external safety system with a stop request when the protective field is occupied, supporting prevention of hazardous machine motion and unintended restart.

Horizontal area monitoring OSSD pair Restart interlock

2. Detecting whole-body passage through a machine access opening

A vertical scanner arrangement can monitor whole-body passage through an indoor machine access opening, with contour reference supporting the selected protective geometry. Crossing the protective field changes the OSSD condition for external safety control. A person standing behind this detection plane is not detected, so the safeguarding arrangement includes restart and presence measures appropriate to the space beyond the opening.

Problem Solved

A monitored crossing plane gives external safety control an access event, supporting a stop request when a person passes through the configured entry boundary.

Access crossing Contour reference External safety control

3. Adapting protective fields to an electric AGV’s travel speed

An indoor AGV powered by an electric motor can connect incremental encoders to the Professional scanner and select configured protective fields according to vehicle speed. Each field remains within the 2 m protective range. Its length accounts for braking distance, scanner and vehicle-control response, and the required supplements at every speed, while warning-field indications remain separate from the protective OSSD function.

Problem Solved

Speed-dependent monitoring cases adapt the protected approach area to vehicle motion, providing the external vehicle safety system with a protective-field interruption for its stopping function.

Electric AGV Speed-dependent fields Incremental-encoder inputs
