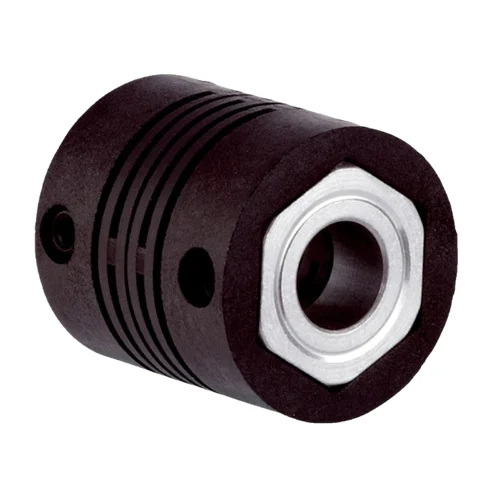

SICK 5314178 KUP-0810-S Bar Shaft Coupling

USD 31.20

KUP-0810-S adapts 8 mm / 10 mm shafts with a 24 mm bar coupling, ±0.3 mm radial offset, 10,000 rpm maximum speed and reinforced-polyamide body.

SKU SICK-5314178 Category
SICK Shaft Couplings

SICK KUP-0810-S Bar Shaft Coupling

BrandSICK
Model IdentifierKUP-0810-S
Official Part Number5314178

Technical Overview

The SICK KUP-0810-S is a bar shaft coupling for 8 mm / 10 mm shaft adaptation. Its 24 mm-long glass-fiber-reinforced polyamide body and aluminum hub accommodate radial offset up to ±0.3 mm, axial offset up to ±0.3 mm and angular offset up to ±3°.

8 mm / 10 mm bar shaft coupling with 24 mm length, reinforced-polyamide body, aluminum hub and 10,000 rpm maximum speed.

Key Features

  • 8 mm / 10 mm shaft diameters
  • Bar coupling for shaft adaptation
  • 24 mm coupling length
  • 10,000 rpm maximum speed
  • Maximum torque 80 Ncm
  • Maximum radial shaft offset ±0.3 mm
  • Maximum axial shaft offset ±0.3 mm; angular offset ±3°
  • Glass-fiber-reinforced polyamide body with aluminum hub
  • −10 to +80 °C temperature range

Adapt 8 mm / 10 mm shafts with a 24 mm bar coupling that accommodates the specified radial, axial and angular offsets.

Technical Specification Matrix

ParameterValue
Product segmentShaft adaptation
Product typeShaft coupling
Coupling typeBar coupling
Shaft diameter D18 mm
Shaft diameter D210 mm
Coupling length24 mm
Front-view outer size22 mm as marked in manufacturer drawing
Maximum speed10,000 rpm
Maximum torque80 Ncm
Maximum radial shaft offset±0.3 mm
Maximum axial shaft offset±0.3 mm
Maximum angular shaft offset±3°
Body materialGlass-fiber-reinforced polyamide
Hub materialAluminum
Temperature range−10 to +80 °C
