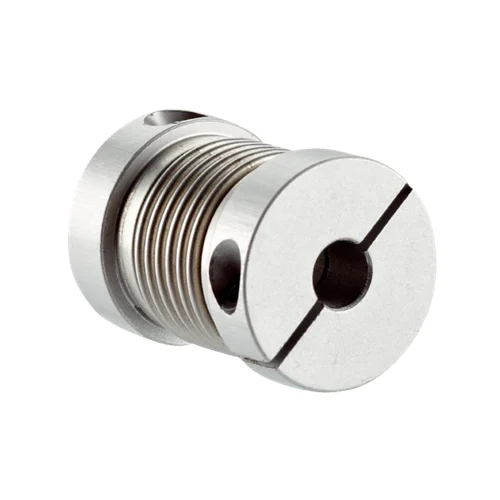

KUP-0610-B connects 6 mm and 10 mm shafts with stainless steel bellows, aluminum hubs and setscrews; rated to 10,000 rpm and 120 Ncm torque.
The SICK KUP-0610-B is a bellows shaft coupling for connecting 6 mm and 10 mm shafts. Stainless steel bellows and aluminum hubs accommodate documented radial, axial and angular offsets, with setscrew mounting, a nominal 29 mm length, maximum speed of 10,000 rpm and maximum torque of 120 Ncm.
Bellows coupling for 6 mm and 10 mm shafts, with setscrew mounting, stainless steel bellows, aluminum hubs and 120 Ncm maximum torque.
Join 6 mm and 10 mm shafts while accommodating the documented shaft offsets through stainless steel bellows and aluminum hubs.
| Parameter | Value |
|---|---|
| Product type | Bellows shaft coupling |
| Product segment | Shaft adaptation |
| Shaft diameter D1 | 6 mm; H8 bore tolerance |
| Shaft diameter D2 | 10 mm; H8 bore tolerance |
| Mounting system | Setscrews |
| Nominal length | 29 mm; drawing tolerance ±1 mm |
| Maximum speed | 10,000 rpm |
| Maximum torque | 120 Ncm |
| Maximum radial shaft offset | ±0.25 mm |
| Maximum axial shaft offset | ±0.4 mm |
| Maximum angular shaft offset | ±4° |
| Bellows material | Stainless steel |
| Hub material | Aluminum |
| Temperature range | −30 to +120 °C |
| Drawing screw designation | Cheese-head screw M2.5 × 8, DIN 912 A2 |
