USD 23.63

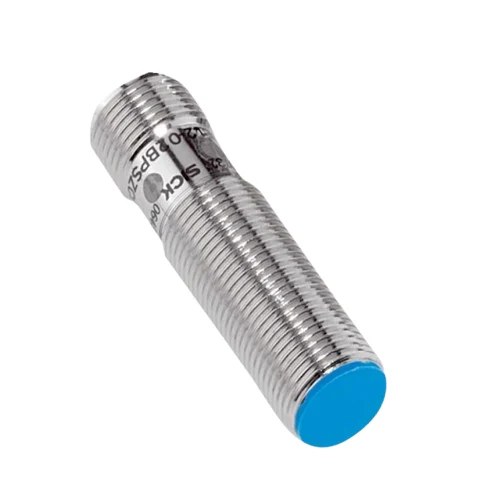

Short-body M12 inductive proximity sensor featuring a 2mm flush sensing range, PNP-NC output, 2kHz switching frequency, and IP67 rating. Operates at 10-30 VDC.
Short-body M12 inductive proximity sensor featuring a 2mm flush sensing range, PNP-NC output, 2kHz switching frequency, and IP67 rating. Operates at 10-30 VDC.
| Parameter | Value |
|---|---|
| Sensing Range (Sn) | 2 mm |
| Assured Sensing Range (Sa) | 1.62 mm |
| Installation Type | Flush |
| Switching Frequency | 2 kHz |
| Output Type | PNP |
| Output Function | NC (Normally Closed) |
| Electrical Wiring | DC 3-wire |
| Supply Voltage | 10 - 30 V DC |
| Continuous Current (Ia) | <= 200 mA |
| Connection Type | M12 4-pin male connector |
| Housing Material | Nickel-plated brass |
| Sensing Face Material | Plastic, PA 66 |
| Enclosure Rating | IP67 |
| Operating Temperature | -25 °C to +75 °C |
| Physical Weight (kg) | 0 |
| Dimensions L x W x H (cm) | 4.6 x 1.2 x 1.2 |
Detects the exact rotational position or presence of metal index markers on rapid machine tool spindles.
Ensures real-time synchronization in CNC machinery where slow sensor response would cause positioning errors, resolved by the 2 kHz switching frequency.
Senses the arrival of metallic fixture plates or machine parts in fast-moving packaging conveyors to trigger downstream robotic handling.
Eliminates false triggers and physical wear using a highly repeatable non-contact 2mm flush detection range, even in high-vibration scenarios.
Monitors the closure status of automated metallic grippers on robotic arms in automotive or electronics assembly.
Fits into tight robotic joints thanks to its short-body 46 mm length, while the IP67 rating withstands factory dust and cutting fluids.
