USD 544.78

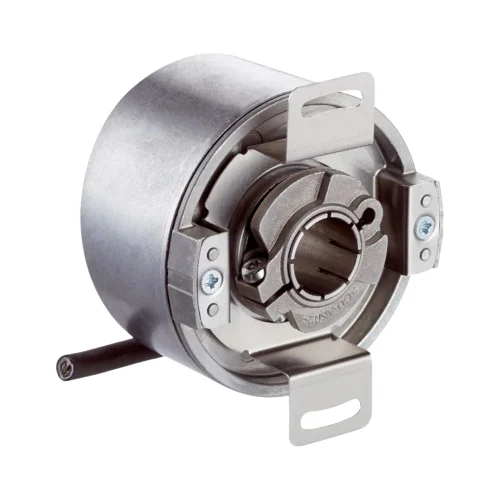

12mm through hollow shaft incremental rotary encoder. Features 10,000 PPR programmable resolution, 4.5-32V TTL/HTL outputs, 6000 RPM max, and an IP65 rating.
12mm through hollow shaft incremental rotary encoder. Features 10,000 PPR programmable resolution, 4.5-32V TTL/HTL outputs, 6000 RPM max, and an IP65 rating.
| Parameter | Value |
|---|---|
| Sensor Technology | Incremental Rotary Encoder |
| Resolution | 10,000 PPR |
| Supply Voltage | 4.5 V DC to 32 V DC |
| Output Signal | TTL / HTL Programmable |
| Mechanical Design | Through Hollow Shaft |
| Shaft Diameter | 12 mm |
| Maximum Operating Speed | 6,000 RPM |
| Connection Type | 1.5 m 8-Wire Cable (Flying Leads) |
| Enclosure Rating | IP65 |
| Operating Temperature | -30°C to +100°C |
| Housing Material | Die-cast Aluminum |
| Physical Weight (kg) | 0.37 |
| Dimensions L x W x H (cm) | 0 x 0 x 0 |
Installed on the drive shaft of a conveyor motor, the high-resolution 10,000 PPR encoder tracks RPM continuously to ensure precise speed regulation. Its 6,000 RPM tolerance comfortably handles high-speed material handling systems.
Prevents material jamming and irregular feed rates by offering real-time, high-precision velocity feedback to the VFD or PLC.
Mounted directly on a 12mm rotating shaft of a packaging machine, the encoder's programmable TTL/HTL output syncs the precise linear positioning of cutting or sealing mechanisms. The IP65 rating ensures it survives dusty packaging environments.
Eliminates misalignment of packaging labels or cuts by delivering 10,000 pulses per revolution, yielding high positional accuracy.
Integrated into the drivetrain of an industrial AGV, this hollow-shaft encoder measures wheel rotations. Operating smoothly across its 4.5 to 32V input range directly from the vehicle's battery power, it continuously feeds exact spatial coordinates.
Resolves inaccurate AGV navigation by providing exact odometry feedback required for precise location calculations and dead reckoning.
